Dimensions Needed for a Toilet: A Practical Guide

What dimensions matter when choosing a toilet?

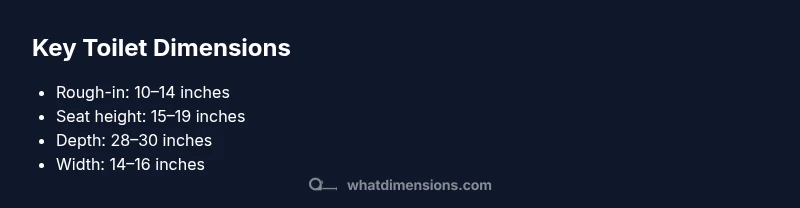

The most critical numbers are rough-in distance, seat height, depth, bowl width, and clearance around the unit. In practice, these determine whether the toilet fits behind a vanity, how comfortable the user is, and if the lid clears the door. What Dimensions emphasizes that precise sizing reduces remodeling surprises. Understanding these basics helps homeowners align fixture choices with existing plumbing and bathroom geometry. The rough-in distance is dictated by the distance from the finished wall to the drain center. Most homes built in the last several decades use a standard 12-inch rough-in, but 10- and 14-inch options are available to accommodate older plumbing or tight spaces. When you select an elongated bowl, the footprint expands slightly; a round-front model is smaller and can be easier to fit into compact bathrooms. In addition to footprint, consider tank height and lid design, as taller tanks can affect ceiling height and mirror placement. For designers, this first step ensures you evaluate multiple configurations before selecting a model. Working with measured data from the start is a hallmark of precise design planning. To ensure accuracy, What Dimensions recommends documenting all measurements with a photo log and a simple sketch of floor space.

Rough-in measurements explained: 10, 12, and 14 inches options

Rough-in distance is the measurement from the finished wall to the drain center. It determines which toilet models will align with existing plumbing without costly flange moves. The most common option is 12 inches, but homes built earlier or with unique bathrooms may require 10 inches or 14 inches. When measuring, start at the baseboard, mark the wall surface where the flange center sits, and use a level to confirm the line is perpendicular to the wall. If you’re replacing a toilet, record the current rough-in and verify that the chosen model’s rough-in matches or use an adapter kit if needed. Remember to consider the waste pipe’s angle and the flange height, as discrepancies can cause leaks or poor alignment. What Dimensions’ analysis shows that a precise rough-in match saves time and reduces rework during installation.

How toilet shape and tank design affect footprint

Toilet bowls come in two common shapes: elongated and round. An elongated bowl typically offers more comfort but adds footprint width, while a round bowl saves space in tight baths. Tank design also matters: taller tanks increase perceived height and can marginally widen the overall footprint. Some compact tank designs reduce depth by a few inches, which can be crucial in narrow bathrooms. Elongated models are usually paired with standard 12-inch rough-in, but a mismatch can occur if wall studs or vanity backs intrude on the space. Designers should pair bowl shape and tank style with the bathroom’s geometry, ensuring there’s room for cleaning access and door swing. What Dimensions emphasizes testing several configurations before finalizing a purchase to avoid costly mismatches.

Comfort and accessibility: seat height and accessibility standards

Seat height is central to comfort and accessibility. Standard toilets often sit around 15-17 inches from floor to seat, while ADA-compliant options commonly run higher, around 17-19 inches. When measuring for comfort, sit on a similar-height chair and replicate the knee clearance you expect in daily use. If you’re installing in a shared bathroom, prioritize a height that supports a mix of users, including taller adults and children. In addition to seat height, ensure there is sufficient clearance in front of the toilet and around the sides for legroom and maneuverability. If you’re renovating for accessibility, plan for required turning space and consider a wall-mounted or comfort-height model that simplifies transfers. What Dimensions notes that seat height and clearances are often overlooked during shopping and planning, leading to post-install adjustments.

Step-by-step bathroom measurement plan

1. Sketch the bathroom and mark the rough-in location on the wall. 2) Measure the distance from the finished wall to the drain center (rough-in). 3) Record the wall-to-toilet center distance and the distance to any adjacent fixtures. 4) Measure from the floor to the top of the tank and from the floor to the seat when sitting. 5) Check the total depth and width, including any tank overhangs. 6) Verify side clearance and front knee space with a dummy person standing and a person seated. 7) Note any obstructions such as baseboards, doors, or vanity doors that could interfere with installation or use. 8) Create a notes page with model compatibility and a photo log for reference. What Dimensions' measurement methodology emphasizes repeatable steps and clear documentation to minimize surprises during installation.

Tools and practical tips for accurate measurement

• Tape measure or laser distance tool for precision
• Graph paper or a simple floor plan template
• A smartphone to capture photos and quick notes
• A helper to position a mock toilet footprint using cardboard cutouts
• A ruler or caliper for verifying small distances around the flange
• Soft pencil and masking tape to mark dimensions on the wall
• A checklist to ensure all critical distances are captured What Dimensions suggests keeping measurements organized in a single document and cross-checking them against several toilet models to confirm fit and clearance.

Common installation pitfalls and post-installation checks

Common pitfalls include mismatched rough-in size, incorrect seat height, and insufficient front clearance. After installation, re-check all fasteners, ensure the flange remains secure, and test for wobble. Confirm that the toilet lid clears nearby fixtures and doors, especially in tight spaces. If the flush tank sits too high or too low, it can affect flush performance and user comfort. Finally, when shopping, compare the model’s specified dimensions to your measured values and select a unit with a comfortable seat height, a suitable footprint, and an appropriate rough-in distance to match the project requirements. The What Dimensions team emphasizes documenting every step to prevent post-purchase disappointment.
