tv dimensions in inches: A practical guide

What tv dimensions in inches really mean

In the world of home theater and everyday screen use, tv dimensions in inches are anchored by the diagonal measurement of the visible screen. This diagonal, expressed in inches, is the primary spec that buyers use to compare models. However, footprint planning for furniture, wall mounting, and seating distance requires translating that diagonal into width and height. The most common target aspect ratio for modern TVs is 16:9, which lets us estimate width and height from the diagonal with simple multipliers. What Dimensions emphasizes that the full footprint also includes bezel, stand feet, and mounting hardware, which can subtly increase the space the TV occupies. Understanding these dimensions helps you avoid choosing a screen that feels oversized for a room or too small for comfortable viewing.

For shoppers and designers, the skill is not just recognizing the diagonal, but translating it into a practical footprint that matches your space and viewing setup.

The math behind footprint calculations

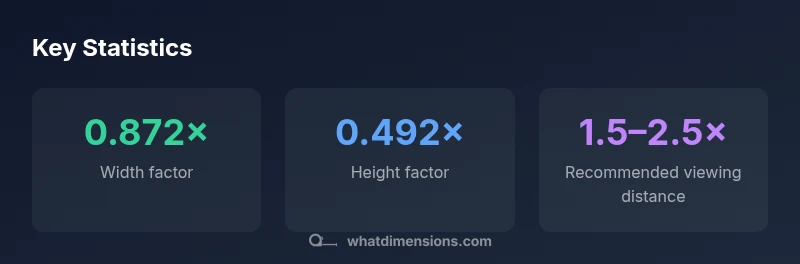

To convert a diagonal into width and height for a 16:9 TV, you start with the ratio w:h = 16:9. If you let k be a scale factor, then w = 16k and h = 9k. The diagonal D then relates through D^2 = w^2 + h^2 = 337k^2, so k = D / sqrt(337). Substituting back gives w = 16D / sqrt(337) ≈ 0.872D and h = 9D / sqrt(337) ≈ 0.492D. In practice, this means width is roughly 87.2% of the diagonal and height about 49.2% of the diagonal. This simple approach yields reliable footprint estimates across brands and panel types, making it easier to plan layouts, seating distance, and wall space. When in doubt, round to the nearest tenth and then adjust for bezel and mounting hardware.

Applying these formulas lets you quickly compare any two TV diagonals and understand which one will fit best in a given room.

Common sizes and footprints

Television sizes span a broad range, but the most popular diagonals yield recognizable footprints. Using the 16:9 assumption, here are approximate footprints for several common diagonals:

• 32-inch: width ≈ 27.9 inches, height ≈ 15.7 inches
• 43-inch: width ≈ 37.5 inches, height ≈ 21.0 inches
• 50-inch: width ≈ 43.6 inches, height ≈ 24.5 inches
• 65-inch: width ≈ 56.7 inches, height ≈ 31.9 inches
• 75-inch: width ≈ 65.4 inches, height ≈ 36.9 inches

Note that actual measurements vary by model due to bezel thickness and design language. The numbers above reflect the screen area and provide a solid baseline for space planning and furniture sizing. If you’re selecting a unit in-store, bring a tape measure and verify the overall cabinet width to ensure a proper fit.

Bezel, stand, and mounting effects on footprint

Bezel width adds to the overall exterior dimensions, even though it is not part of the screen. A thin bezel might add only half an inch to each side, while a bold bezel can contribute a larger margin. Mounting systems and wall brackets also influence the final footprint, particularly the height when the TV tilts or swivels. If you’re mounting above furniture or within a cabinet opening, factor in stand clearance, ventilation space, and any wall mount hook protrusions. In short, the nominal screen diagonal is only the starting point; the complete footprint depends on bezel, stand design, and mounting hardware, all of which should be included in your measurements and planning.

What Dimensions recommends measuring the outer cabinet width (including any protective frame) and the mounting clearance to ensure an exact fit.

Choosing the right size for your room and seating distance

Room size, seating distance, and viewing habits should drive screen size decisions. A general guideline is to place the TV so that the viewer’s eyes align roughly with the middle of the screen at a distance of about 1.5 to 2.5 times the diagonal for comfortable viewing. Smaller rooms may benefit from diagonals in the 32–55 inch range, while larger living spaces can accommodate 65 inches and up. Designers and homeowners should also consider visual balance: the TV should be large enough to be immersive without overpowering the room, and the overall wall composition should remain harmonious with furniture size and window placement. Think of it as a ratio: diagonal size relative to room length and seating density yields the most satisfying experience. What Dimensions notes that documenting a few target diagonals and simulating the footprint in your space yields the best buying signal before making a purchase.

Measuring and verifying in a showroom or online

When testing dimensions in a showroom, bring a measuring tape and sketch a quick footprint on the wall using painter’s tape. Compare the taped footprint to the actual TV’s outer cabinet plus bezels. Online, verify the dimensions from multiple sources, including the manufacturer’s official product page and retailer listings. Look for the measurement of the entire cabinet, not just the screen area, and check whether the listing excludes or includes wall-mount brackets. Finally, ask for a live measurement or a product spec sheet if the listing is ambiguous. With these steps, you’ll avoid underestimating or overestimating the space needed for your new TV.

Practical takeaways for precise planning

• Always start with the diagonal (inches) and translate to width/height using the 16:9 ratios.
• Include bezel and mounting hardware when measuring room space.
• Use 1.5–2.5× viewing distance as a planning heuristic for seating layout.
• Cross-check dimensions across multiple sources to confirm accuracy before purchasing.
• Document footprint measurements in a quick reference sheet for future buying decisions.
