Can You Edit Dimensions in AutoCAD? A Practical How-To

Why editing dimensions matters in AutoCAD

In design and drafting, precise dimensioning is essential. When you work in AutoCAD, you often need to adjust how dimensions are presented without changing the underlying geometry. can you edit dimensions in autocad? The answer is yes, and the method you choose depends on whether you want global consistency or a one-off annotation change. According to What Dimensions, consistent dimensioning across sheets reduces rework and misinterpretation, especially on multi-drawing projects. This article helps homeowners, students, designers, and shop-floor engineers understand when to adjust dimension styles and when to rely on direct annotations. By mastering these tools, you’ll save time, reduce errors, and improve communication with clients and teammates. Throughout, you’ll see practical tips, guardrails, and examples drawn from real-world CAD workflows.

Understanding dimension styles and dimension overrides

Dimension styles determine the overall look and feel of every annotation in your drawing. They cover text height, arrows, line thickness, units, and tolerances. When you edit a dimension style, every dimension that uses that style updates accordingly, ensuring consistency across sheets and revisions. Overrides, by contrast, apply to a single dimension. Override changes can be applied quickly to correct a misfit or emphasize a specific feature, but overuse can cause inconsistency. In practice, you’ll often switch between editing a style for broad alignment and applying targeted overrides for clarity on a single feature. As you work, keep in mind that overrides should be used sparingly and with a plan to migrate them into a controlled style if they become standard practice.

Global vs. local edits: DIMSTYLE vs. overrides

Global edits live in the dimension style (DIMSTYLE). When you update a style, all dimensions linked to that style automatically reflect the change. This is ideal for standardizing typography, unit display, and arrowheads across a drawing set. Local edits happen at the individual dimension level, usually through the Properties panel or right-click context menu. Use local edits for exacting requirements without altering the entire style. A practical approach is to establish a core style for your project and reserve local edits for exceptional cases. Remember: global changes propagate quickly, so verify your sheet collection after applying a new style to avoid surprises later in the design review.

Common workflows for editing dimensions

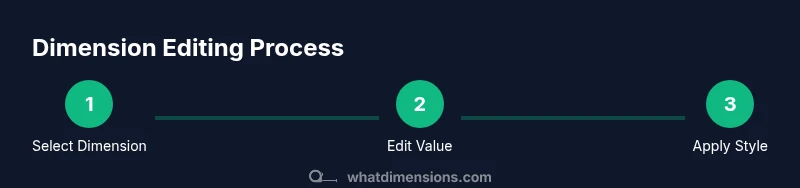

Most CAD users start by confirming the current dimension style to understand the baseline. If the goal is to normalize appearance, open the DIMSTYLE dialog, adjust text height, units, and arrow style, and then apply the style to all relevant dimensions. For a specific feature, select the dimension, open the Properties palette, and modify the text or value directly. When you need to present a measurement differently on multiple sheets, consider creating a dedicated style variant or a sheet-specific style to keep the original intact. Finally, validate the results by cross-referencing with a model or a BOM to ensure numbers align with the intended design intent.

Pitfalls and how to avoid them

A common trap is mixing global style edits with too many overrides, which creates a confusing annotation system. Another pitfall is changing units or tolerances mid-project without updating associated drawings, which can lead to misinterpretation in manufacturing or construction. Always back up drawings before large edits, and use a controlled workflow to track changes. If you rely on overrides, document the rationale and plan to migrate these overrides into a new or updated style where possible. Finally, avoid deleting dimensions accidentally; instead, use the IMPLICIT DIMENSION setting to preserve references while editing the annotation.

Best practices for consistent dimensioning across projects

Consistency is the backbone of reliable CAD work. Start with a clearly defined dimension style standard for your team, including font, arrow type, alignment, and decimal precision. Apply this style across all sheets using a shared DIMSTYLE or a project template. Use overrides cautiously, and keep an audit trail of any deviations. Regularly audit completed drawings to verify that the style is being honored and that text heights and tolerances remain legible from print distances. Finally, document how you handle legacy drawings—whether you migrate them to the new style or keep them as historical references—and ensure your team adheres to the same documentation rules.
