How to Manage Dimensions in AutoCAD: A Step-by-Step Guide
Discover how to manage dimensions in AutoCAD with standardized dimstyles, annotative scaling, tolerances, and efficient editing workflows for clean, publication-ready CAD drawings.
Learn how to manage dimensions in AutoCAD by establishing consistent dimension styles, annotative scaling, and safe editing workflows. Start by standardizing units and tolerances, then build reusable styles for all drawing types. Ensure AutoCAD is up to date and the Dimension tools palette is accessible. This guide walks you through setup, execution, and troubleshooting for reliable, publication-ready dimensions.

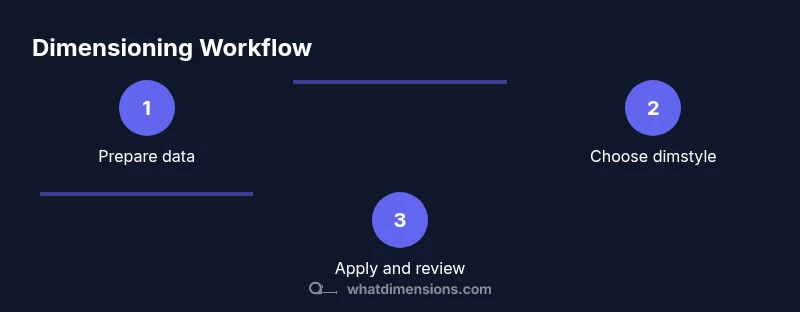

Understanding the dimensioning workflow in AutoCAD
Understanding the dimensioning workflow in AutoCAD is essential for accurate and legible drawings. When learning how to manage dimensions in autocad, you should first map your steps—from setting units to choosing the right dimstyle—and then apply them consistently across sheets. According to What Dimensions, a clear workflow reduces errors and speeds up revisions. The What Dimensions team found that teams with a standardized approach see fewer reworks and more reliable dimension reads in complex assemblies. In practice, you align your unit system, scale, and tolerances before placing the first dimension. This ensures every measurement is interpretable regardless of who reads the drawing or which layout you use. This section introduces the high-level workflow and explains why dimensioning decisions cascade into every page of your CAD project.
Setting up and standardizing dimension styles
A dimension style, or dimstyle, defines how dimensions appear: text height, arrow size, line extension, and tolerances. To begin how to manage dimensions in autocad, create a core set of styles that reflect your project type—architectural, mechanical, or civil. Use the DimStyle manager to copy existing styles, rename them clearly, and modify only the properties that matter for consistency. Establish a primary style that all new dimensions inherit by default, then override as needed for exceptions. What Dimensions recommends documenting the intended defaults in a short living style guide so every team member applies the same rules across files.
Annotative dimensions: aligning scale and readability
Annotative dimensions automatically adjust their size based on the viewport scale, ensuring readability when you switch between model space and layouts. This is a key practice when learning how to manage dimensions in autocad because it preserves legibility without creating multiple versions of the same annotation. Set your drawing to an annotative dimension style, enable annotative property for relevant objects, and synchronize the annotation scale with the viewport. If a dimension looks too large or too small on a sheet, adjust the annotation scale rather than resizing the text manually, which preserves consistency across drawings.
Dimension types and when to use them
AutoCAD offers several dimension types, including linear, aligned, angular, radial, and diameter. Choosing the right type directly affects how viewers interpret measurements. For example, use linear dimensions for orthogonal distances and aligned dimensions for diagonal measurements along objects. Radius and diameter are common in round features like holes and cylinders. As you document how to manage dimensions in autocad, map each feature to its most natural dimension type to avoid ambiguity and reduce interpretation errors on the shop floor or construction site.
Precision, tolerances, and rounding rules
Tolerances express acceptable variation and are critical for fabrication and assembly. In AutoCAD, you can specify decimal precision, fractional formats, and tolerance values in the dimstyle. When setting tolerances, decide whether to apply them globally or per feature, and ensure that the presentation matches the project’s drafting standards. Consistency here prevents downstream issues during manufacturing or verification. What Dimensions emphasizes recording your tolerance policy in your style guide and applying it uniformly across all dimensions in a drawing package.
Global vs local scales and their impact on sheets
Large projects require coordinating dimension scales across multiple sheets. Global scales set a baseline reference for the entire project, while local scales tailor readability for individual sheets. In practice, enable annotation scale to drive global consistency and adjust local scales for legibility on specific layouts. This balance is essential when you publish or share drawings with teammates who view files on different devices. A disciplined approach to scales reduces surprises during reviews and approvals.
Editing dimensions safely: best practices
Edit dimensions with caution to avoid corrupting the annotation history or dimensional relationships. Prefer editing through the Properties palette or DimEdit commands rather than dragging handles, which can sever associative links. When you move a geometry, dimensions should update automatically if the dimstyle and annotative settings are correct. Always save a backup before large edits, and verify all related dimensions after changes to confirm accuracy. What Dimensions notes that atomic, well-documented edits minimize rework.
Leaders, baselines, and multi-line dimensions
Leaders attach notes to dimensions for clarifications. Baselines align a group of dimensions along a common axis, and multi-line dimensions save space on crowded drawings. When implementing these features, ensure leaders point to the right reference drawings and that baselines do not disrupt the reading order. For complex assemblies, use multi-line dimensions sparingly to preserve clarity and avoid visual clutter. These practices contribute to a coherent, publish-ready CAD package.
Troubleshooting common dimension issues
Dimensional problems commonly arise from misapplied dimstyles, incorrect annotation scales, or inconsistent units. If updates lag or numbers look off, verify the active dimstyle, confirm the annotation scale matches the layout, and check unit settings. Keep your templates aligned with your project standards to prevent future drift. Regular audits of a sample of dimensions can catch issues early before they propagate across sheets.
Architectural vs mechanical dimensioning: aligning standards
Different industries rely on distinct dimensioning conventions. Architectural drawings emphasize readability and alignment with building information, while mechanical drawings prioritize tolerance and fit. When learning how to manage dimensions in autocad across disciplines, adopt a shared framework for core properties like text height and arrow size, then tailor per-discipline adjustments. Document these differences in a living standards document and train team members to switch contexts without losing consistency.
Tools & Materials
- Computer with AutoCAD installed(Prefer the latest version or a current release with full Dimension tools support)
- Stable internet for downloads and cloud templates(Useful for syncing dimstyle templates across teams)
- Shortcut sheet or quick reference for DimStyle commands(Speed up workflow and reduce errors)
- Access to project standards or template drawings(Contains dim style baselines and tolerances)
- Measurement references (prints or PDFs) for field checks(Helps ensure real-world measurements align with CAD data)
Steps
Estimated time: 1.5-2 hours
- 1
Open the drawing and verify units
Launch AutoCAD and open the project file. Check the units in the drawing properties to ensure measurements align with the project’s standard, whether metric or imperial. This step prevents scale mismatches that propagate through all dimensions.
Tip: Double-check units before placing any dimensions to avoid widespread corrections later. - 2
Create or select a standard dimstyle
Open the DimStyle manager and either select your project’s default style or create a new one. Configure text height, arrow size, extension lines, and tolerance parameters to match the standards. Apply the style as the default for new dimensions.
Tip: Name the style clearly and document its intended use in your standards guide. - 3
Set annotation scale and viewports
Enable annotation scaling so dimensions resize appropriately across model space and layouts. Link the dimstyle to the active viewport and ensure the layout scales align with the intended publication format.
Tip: Always verify a layout at the final print scale to confirm readability. - 4
Place a basic linear dimension
Draw a linear dimension between two clearly defined points. Choose the correct dimension type and ensure the dimension line is free of overlaps with other geometry. This creates a baseline for future dimensions.
Tip: Place dimensions away from heavy geometry to avoid clutter. - 5
Apply your dimstyle to the dimension
Change the dimension's style to your standard by using the Properties palette or command line. This ensures consistent appearance across the drawing package.
Tip: If a dimension inherits a wrong style, use the MatchProperties tool to standardize quickly. - 6
Adjust text orientation and readability
Modify the text position or rotation for optimal readability, especially on dense drawings. Keep text parallel to dimension lines where possible and avoid overlapping with other annotations.
Tip: Prefer external leader lines if the text would otherwise collide with geometry. - 7
Add tolerance and precision
Enter tolerance values in the dimstyle or per-dimension settings, following your project’s policy. Choose a consistent decimal or fractional format and maintain uniform precision across sections.
Tip: Document your tolerance policy and apply it section-wide, not just per part. - 8
Review global vs local scales on sheets
Check that each sheet uses the correct annotation scale for its viewport. Align global settings with local needs so numbers remain readable in both large and small layouts.
Tip: Always test a sample print to ensure legibility at intended sizes. - 9
Edit dimensions safely using grips
Use grips or the Properties panel to adjust dimension endpoints and text. Avoid dragging dimension lines directly to preserve associative links to geometry.
Tip: After edits, re-check related dimensions to ensure consistency. - 10
Audit, save, and standardize
Run a quick audit of dimensions across the drawing set. Save changes to a shared template for future projects and unify standards for new files.
Tip: Maintain a living template and communicate updates with the team.
Quick Answers
What is a dimstyle in AutoCAD and why is it important?
A dimstyle is a collection of settings that control how a dimension appears, including text size, arrow size, and tolerances. Using a consistent dimstyle ensures uniform appearance across drawings and reduces errors during reviews.
A dimstyle is a settings bundle for how your measurements look, helping keep drawings consistent and easier to read.
How do I change the dimension style for a single drawing without affecting others?
Change the dimstyle within the drawing by creating a dedicated style and setting it as the active default for that file. Do not modify the shared template directly; instead, save the changes as a new template.
Create a new style for that file and save it as a separate template to avoid impacting other projects.
What is annotative scaling and how does it affect dimensions?
Annotative scaling makes text and annotations scale automatically with viewport size. It ensures dimensions remain legible when printed at different scales without changing their values.
Annotative scaling makes your measurements look right at every print size.
Why aren’t my dimensions updating when I change the geometry?
Dim updates may be suppressed if associative linking is broken or if the correct dimstyle or scale is not active. Verify the geometry remains linked to the dimensions and reapply the appropriate dimstyle.
Check the link between the geometry and the dimensions and reapply the style if needed.
Which dimension types should I use for architectural vs mechanical drawings?
Architectural drawings typically emphasize legibility and layout with linear and angular dimensions, while mechanical drawings emphasize precise tolerances and fits with diameter, radius, and chain/datum references. Choose types based on function and readability.
Use types that clearly communicate the feature and tolerances required for manufacturing or construction.
Watch Video
Main Points
- Standardize a single dimstyle library for all drawings
- Use annotative scaling to maintain readability across layouts
- Always verify units and tolerances before placing dimensions
- Audit dimensions across sheets to prevent drift
- Document standards and train teams to apply them consistently
