How to Show Dimensions When Drawing in AutoCAD
Learn to show precise dimensions in AutoCAD with consistent styles, annotation scales, and the right tools. This guide covers linear, angular, radius, and diameter dimensions for clear, printable drawings. Improve communication and reduce rework with best practices.
You will learn to show precise dimensions in AutoCAD by using consistent dimension styles, annotation scales, and the right dimension tools. This guide covers creating or selecting a DIMSTYLE, setting the annotation scale for paper space, and placing linear, aligned, radius, and diameter dimensions. According to What Dimensions, consistent dimensioning improves clarity and reduces rework.
Understanding why precise dimensions matter in AutoCAD
In technical drawings, dimensions communicate size, location, and tolerance. AutoCAD users rely on dimensions to ensure parts fit together, guide fabrication, and verify design intent. When dimensions are inconsistent or unclear, assemblies may be misinterpreted, leading to costly rework. What Dimensions Analysis, 2026 emphasizes the importance of standardized dimension practices across projects for better collaboration and fewer revision cycles. In AutoCAD, you must decide between model space and paper space for dimension placement, because the display and print readiness depend on your annotation scale. Start by confirming your units and scale, and ensure your dimensioning plan aligns with project standards and client expectations. Dimensions should be placed with clear extension lines, proper arrows, and minimal overlap. Prefer continuous sequences to indicate relations between features; avoid placing dims too close to edges; maintain consistent spacing. This initial understanding lays the groundwork for consistent dimensioning across AutoCAD drawings.
Core concepts: annotation scale, dimension style, and text height
Dimensioning in AutoCAD revolves around three core concepts: annotation scale, dimension style (DIMSTYLE), and text height. Annotation scale ensures dims stay legible whether you print at a large or small size; a mismatch can make numbers unreadable in paper space. A consistent DIMSTYLE defines how arrows, extension lines, and units look, so all team members read the same values the same way. Text height should be chosen to maintain legibility at the intended print size, and it should be consistent across the drawing. For multi-view sheets, consider annotative dimensions so a single dimension adapts to multiple scales. What Dimensions Analysis, 2026 highlights that standardizing these settings boosts cross-project consistency and reduces interpretation errors.
Using AutoCAD dimension tools: Linear, Aligned, Angular, Radius, Diameter
AutoCAD offers a suite of dimension tools to capture geometry precisely. Linear dimensions measure horizontal or vertical offsets; Aligned dimensions follow the feature direction and are ideal for sloped edges. Angular dimensions quantify included angles between lines, while Radius and Diameter dimensions express circle-related sizes. Each tool has defaults for arrowheads, text placement, and tolerances, which DIMSTYLE controls. When you switch between tools, place dimensions with clean extension lines and avoid stacking dims in crowded areas. Consistency in tool usage helps viewers quickly understand relationships and tolerances across the drawing set.
Managing multiple drawings: global dimstyles and scaling
In large projects, different drawings may use different scales, but the DIMSTYLE should remain consistent to preserve readability. Create a project-level DIMSTYLE library and apply it across sheets to avoid inconsistent appearances. Use annotation scale techniques so dims automatically adjust in viewports and paper space. If a drawing contains multiple viewports, ensure each viewport uses a matching or compatible annotation scale to prevent clashes between line weights and dim text. What Dimensions Analysis, 2026 emphasizes harmonized dimension styles across teams and files to streamline reviews and reduce misinterpretation.
Best practices for legibility and standards
Keep dims clear by selecting a legible font, a stable text height, and proper gap between extension lines and object features. Prefer simple, non-overlapping placement and avoid clutter by grouping related dimensions in a logical order. Establish a standard like a single DIMSTYLE per project, consistent units, and a fixed text height so printed sheets read the same everywhere. Use leaders for notes when needed, and reserve diameter dimensions for circular features to avoid ambiguity. Regularly audit drawings for consistency, especially after changes to geometry or scale.
Troubleshooting common issues with dimensions
If dimensions fail to show, check annotation scale in the active viewport and verify the DIMSTYLE applied to the drawing. Ensure dim lines aren’t hidden by layers that are off or frozen, and confirm the dims are associated to the correct geometry (DIMASSOC may affect updates). Inconsistencies often come from mixing annotative and non-annotative dims or from mismatched plot scales. Reapply the DIMSTYLE and refresh the view to confirm visibility.
Printing and sharing: preparing PDFs and sheets
When exporting to PDF or printing, verify that the final paper space arrangement accurately reflects the intended scale. Use a test print of a representative area to confirm legibility of numbers and symbols. Check that dim text height remains proportionate after printing and that arrowheads stay clear at the chosen plot scale. Clearing out unused layers and purging the file can help ensure dims print consistently across teammates and delivery partners.
Tools & Materials
- AutoCAD software(Use the latest version where possible; ensure the workspace supports annotative dimensions)
- Template drawing with standard units(Preconfigured with basic layers and a starter DIMSTYLE)
- Annotation scale reference (viewport or paper space)(Ensure dims display at the intended size in views and prints)
- Plotter or PDF printer(Useful for quick print verification)
- Ruler or scale bar for cross-checks(Helpful when validating printed output against the model)
Steps
Estimated time: 60-90 minutes

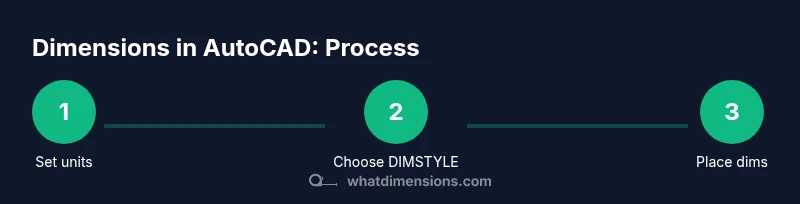

- 1
Open the drawing and verify units
Launch AutoCAD and open the project file. Check the unit system (metric or imperial) and confirm the current drawing scale so all subsequent dimensions reflect real-world sizes. This ensures dimensional accuracy from the start.
Tip: If in doubt, set a temporary reference dimension to confirm the measurement feels correct before applying a formal DIMSTYLE. - 2
Create or select a DIMSTYLE
Open the DIMSTYLE manager and choose an existing style or create a new one tailored to your project. Set arrowhead type, extension line length, and unit precision to match project standards. Consistency here saves screenshots and reviews later.
Tip: Name the style clearly (e.g., ProjectX_Annotative) to avoid confusion across files. - 3
Set annotation scale for the drawing
Apply an annotation scale that matches your intended print or viewport size. This ensures dimensions scale correctly in paper space while remaining legible in model space.
Tip: Use annotative dims if your project uses multiple scales across sheets. - 4
Place a Linear dimension
Choose a feature edge and place a linear dimension along a horizontal or vertical axis. Align text with the dimension line for visual clarity. Confirm there is no overlap with other geometry.
Tip: Lock the dimension if your workflow requires preventing accidental edits. - 5
Add an Aligned dimension for non-orthogonal features
Select a diagonal or angled edge and add an aligned dimension so the measurement follows the feature’s true direction. This prevents misinterpretation of sloped geometry.
Tip: If dims cross over other geometry, adjust the text placement to maintain readability. - 6
Add Radius or Diameter for circular features
Use the appropriate tool to dimension circles or arcs. Radius is useful for fillets and circles within assemblies; diameter clearly communicates overall size.
Tip: Prefer diameter for holes and circular features that are feature-titted to other parts. - 7
Adjust text height and arrow sizes
Tweak the text height and arrowhead size so numbers stay legible at the final print scale. Maintain a consistent look across all dims in the drawing set.
Tip: Test print a few dims at the final scale to confirm readability. - 8
Verify and share
Review all dims for consistency, update DIMASSOC as needed so lines stay attached to geometry, and export to PDF. Share with the team for feedback before final delivery.
Tip: Create a quick checklist to ensure no dimension is missing or inconsistent across views.
Quick Answers
What is annotation scale in AutoCAD?
Annotation scale controls how dimensions and other annotative objects appear at different drawing sizes. It helps keep text, arrows, and lines legible without changing the real geometry. Using annotation scale consistently across sheets avoids mismatches when printing.
Annotation scale controls how dimension text and arrows appear at different print sizes, keeping things legible across sheets.
How do I create or adjust a DIMSTYLE in AutoCAD?
Open the DIMSTYLE manager to create a new style or modify an existing one. Set arrow type, text height, units, and tolerances to align with project standards. Apply the style to your drawing to ensure consistent appearances.
Open the DIMSTYLE manager, adjust the options, and apply it to your drawing for consistency.
Why are my dimensions not showing in paper space?
Dims may be hidden due to annotation scale settings or a misapplied DIMSTYLE. Check the current viewport's annotation scale and confirm the dims are tagged to the correct geometry and view. Ensure the DIMSTYLE is assigned and visible on the active layer.
Check the viewport's annotation scale and confirm the dim style is applied and visible on the correct layer.
What is the difference between linear and aligned dimensions?
Linear dimensions measure horizontally or vertically, while aligned dimensions follow the actual direction of the feature. Use linear for box-like features and aligned for diagonal or non-orthogonal edges to accurately convey measurements.
Linear dims go straight across; aligned dims follow the feature’s direction.
Can I export dimensioned drawings to PDF without losing dims?
Yes. Ensure the PDF plot settings preserve annotation scales and line weights. Verify that dims remain legible in the PDF by printing a test page and checking text height and arrow clarity.
You can, just verify settings and print a test page first.
How do I change the text height of dimensions?
Modify the active DIMSTYLE and adjust the text height parameter. Apply the updated style to dims or re-apply to selected dims to ensure uniformity across the drawing.
Change the text height in the dimension style and reapply it.
Watch Video
Main Points
- Standardize your DIMSTYLE across projects
- Match annotation scale to printing scale for readability
- Use correct dimension tools for each feature
- Check dims in both model and paper space before printing
- Validate output with a test print to prevent surprises
