How to Change Dimensions Units in AutoCAD
Master how to change dimensions units in AutoCAD, align dimension styles, and preserve accuracy across drawings. A practical guide from What Dimensions for homeowners, students, designers, and shoppers needing exact size specs.
To change dimensions units in AutoCAD, set the drawing’s base units and adjust the dimension style to display the chosen units. Start by opening UNITS to choose the type (Decimal, Architectural, etc.) and the insertion scale. Then open DIMSTYLE, under Primary Units set the unit format, precision, and suffix. Finally, verify all existing dimensions and update them if needed.
Understanding how AutoCAD handles units and why the change matters
In CAD workflows, units determine how dimensions are read and interpreted by teammates and clients. The choice of units affects all measurements, scales, and the perceived size of your model. If you collaborate across regions or disciplines, mismatched units can cause rework and miscommunication. According to What Dimensions, defining the correct base units at the start of a project helps keep measurements consistent as you annotate, dimension, and share plans. This guide explains how to change dimensions units in autocad without destroying existing geometry, and it highlights how unit changes interplay with dimension styles, blocks, and external references. Expect practical, field-tested steps you can apply immediately.
Key terminology you should know before changing units
Before making any changes, familiarize yourself with several core terms: UNITS sets the drawing's base unit type (for example, decimal, architectural, or scientific), and affects how lengths are stored and interpreted. DIMSTYLE controls how dimensions are displayed, including the unit format, precision, and any suffix (like mm or in). Primary Units is a sub-section within DIMSTYLE where you decide the unit format, the precision of displayed numbers, and whether a suffix appears. Insertion scale defines how blocks are scaled when inserted into the drawing. Understanding these concepts helps you apply changes consistently across current drawings and future projects. In practice, you’ll routinely switch between UNITS for the base type and DIMSTYLE for display rules.

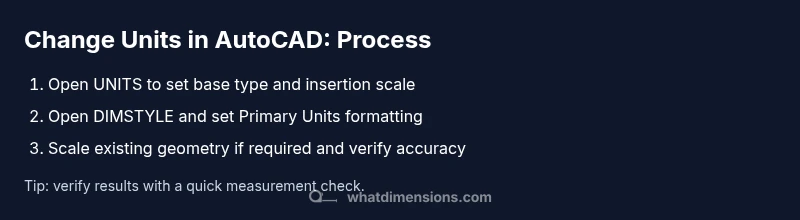

Step 1: Set the drawing units using UNITS
This first step establishes the foundational measurement system for the drawing. Type UNITS in the command line or open the Drawing Utilities menu and select Units. Choose the dominant unit type that aligns with your project (Decimal for metric or decimal inches, Architectural for typical building plans, etc.). Adjust the Insertion scale if you anticipate inserting blocks from a file with a different base unit. Confirm the changes and note that AutoCAD does not automatically scale existing geometry—planning ahead prevents size drift. If you’re switching from metric to imperial (or vice versa), plan a scale pass after the unit change.
Step 2: Tweak the dimension style for unit display
Open DIMSTYLE and select the style you want to modify, or create a new one to avoid altering other drawings. In the Primary Units tab, set Unit format (Decimal, Fractional, or Scientific), choose a suitable Precision, and add a Suffix if needed (e.g., mm or in). This step ensures dimensions show the intended units consistently across all views. If your project includes mixed unit systems, consider using multiple DIMSTYLE configurations and applying them to the appropriate dimensions. Make sure to save the style and associate it with the current drawing or template.
Step 3: Decide on metric or imperial and manage insertion scale
Your project’s intended unit system should guide how you address insertion scale and block references. If you switch units, you’ll typically adjust the insertion scale so that imported blocks match your drawing’s base units. For example, converting inches to millimeters requires careful planning to avoid oversized or undersized components. Remember that 1 inch equals 25.4 millimeters in standard conversions, and you may need to apply a corresponding scale factor when inserting or regenerating references. Document the chosen approach within project notes to preserve consistency.
Step 4: Update existing dimensions to reflect new units
After changing UNITS and DIMSTYLE, existing dimensions might need recalibration. Edits can be done by selecting a dimension and changing its DIMENSION STYLE or by re-creating the dimension with the updated style. For larger drawings, batch-update tools or a script can help. Always verify a representative sample of dimensions in both plan and elevation views to ensure uniform formatting. If dimensions show a mismatch after a unit change, re-check the Primary Units settings and the DIMPOST suffix.
Step 5: Use dimension style overrides for mixed measurements
If your project requires some dimensions in metric and others in imperial, you can apply per-dimension overrides within the DIMSTYLE framework. This approach keeps global rules intact while enabling exceptions for components or subassemblies. Use Per-Dimension overrides cautiously to avoid creating an inconsistent appearance across drawings. Document any overrides in the drawing’s notes so teammates understand the rationale.
Step 6: Validate results with measurements and references
Take a quick measurement pass on critical features to confirm accuracy after the unit change. Use the MEASURE or DIST commands to compare key distances, and cross-check with the project’s reference drawings or specifications. If discrepancies appear, revisit UNITS, DIMSTYLE, and any overrides. A thorough validation helps catch mistakes before you circulate the drawing for review.
Common pitfalls and troubleshooting
Jaw-dropping unit mismatches often stem from mixing templates, inconsistent DIMSTYLE usage, or importing content from other projects without standardizing units first. Always start with a clean template that enforces your preferred units and dimension formatting. Avoid changing UNITS mid-project without a plan to revalidate geometry. When in doubt, revert to a saved backup and reapply changes in a controlled, test-only drawing.
Practical examples: architectural plan vs mechanical drawing
In architectural plans, architectural or decimal units with mm suffix are common, while mechanical drawings typically rely on decimal inches or millimeters with tight precision. The approach to changing units in AutoCAD remains consistent, but the display rules and tolerances differ. For architectural plans, a DIMSTYLE with simpler formatting improves readability. For mechanical drawings, higher precision and explicit suffixes help prevent misinterpretation during manufacturing or machining.
Best practices for teams and project templates
Create standardized templates that lock in UNITS, insertion scale, and a preferred DIMSTYLE. Using shared templates reduces drift when multiple designers work on the same project. Make it a habit to document unit decisions in project briefs and CAD standards documentation. Establish a review step focused on unit consistency before issuing drawings to clients or contractors.
Ensuring consistency across future drawings
As you finalize changes, save a dedicated unit-standard template and communicate the updated workflow to your team. Regularly audit new drawings for unit consistency and keep a changelog for any future adjustments. Consistency in units enhances collaboration, reduces errors, and improves compatibility with downstream software and fabrication workflows.
Tools & Materials
- AutoCAD software (latest version)(Ensure you have a valid license and access to UNITS and DIMSTYLE dialogs.)
- Drawing file (.dwg) of your project(Back up before making major unit changes.)
- Access to UNITS and DIMSTYLE dialogs(Used to set base units and display format.)
- Unit conversion reference chart(Helpful when switching between metric and imperial units.)
- Backup copy of project(Keeps your data safe if you need to revert changes.)
Steps
Estimated time: 25-40 minutes
- 1
Open UNITS and choose base unit type
Launch AutoCAD and type UNITS to open the Units dialog. Select the primary unit type that matches your project needs (Decimal, Architectural, Engineering, Fractional, or Scientific) and adjust the insertion scale if you anticipate external references with different bases. This establishes how lengths are stored and interpreted.
Tip: Document the chosen base type in the project CAD standards. - 2
Configure Primary Units in DIMSTYLE
Open DIMSTYLE, select the current style (or create a new one), and go to Primary Units. Set the Unit format, choose your desired Precision, and add a Suffix if needed (mm, in). These controls determine how dimension text appears in your drawings.
Tip: Avoid mixing formats across similar drawing sets to reduce confusion. - 3
Decide on metric or imperial and set insertion scale accordingly
Choose the dominant system for the project, then adjust the Insertion scale or related settings to align inserted blocks with the drawing units. If you’re mixing units, plan how each block should scale and consider creating dedicated DIMSTYLE variants for consistency.
Tip: If converting, remember standard conversions where applicable (e.g., 1 inch = 25.4 mm). - 4
Update existing dimensions
Review current dimensions and reapply the updated DIMSTYLE settings. Recreate dimensions if necessary to ensure formatting consistency. Validate a sample cross-section to ensure numbers reflect the new units.
Tip: Use a batch editing approach for large drawings to save time. - 5
Apply dimension style overrides where needed
For components that require nonstandard display, use per-dimension overrides with caution. Keep a record of overrides to maintain clarity for teammates and reviewers.
Tip: Limit overrides to avoid visual clutter and confusion. - 6
Verify measurements and document the changes
Run quick measurements and compare them against known references. Update project notes or a CAD standards document to reflect the new unit policy. Save a template for future projects.
Tip: Add a short note in the drawing sheet or title block about the unit policy.
Quick Answers
What is the difference between UNITS and DIMSTYLE in AutoCAD?
UNITS sets the drawing's base unit type and affects how lengths are stored and interpreted. DIMSTYLE controls how dimensions are displayed, including unit format, precision, and suffix. Together they govern how your measurements appear and behave.
UNITS defines the base measurement type, while DIMSTYLE controls how those measurements are shown in dimensions.
Will changing units automatically resize existing objects?
No. AutoCAD does not automatically scale existing geometry when you change units. You must scale or adjust objects and dimensions to reflect the new unit system.
No automatic resizing happens; you need to scale or adjust after the change.
How do I show a unit suffix like mm or in?
Set the unit format and suffix in the Primary Units section of the DIMSTYLE dialog. This makes dimensions display with the chosen suffix consistently.
Use the DIMSTYLE dialog to add a unit suffix like mm or in.
Can I mix metric and imperial units in a single drawing?
AutoCAD supports some mixed-unit scenarios, but they require careful planning and clear documentation to avoid confusion. Consider using separate DIMSTYLE configurations or templates for clarity.
Yes, but plan carefully and keep documentation clear.
What should I do before changing units on a critical project?
Back up the file, test changes on a copy, and document the decisions for teammates. This reduces risk and ensures traceability.
Back up, test on a copy, and document the changes.
Where can I find official guidance on AutoCAD units for standards?
Refer to AutoCAD help resources and CAD standards documentation. Use reputable CAD training materials and cross-check with your organization’s standards.
Check AutoCAD help and CAD standards docs for guidance.
Watch Video
Main Points
- Plan units before drafting.
- Use UNITS and DIMSTYLE to control units.
- Changing units may require scaling.
- Standardize units with templates.
- Test dimensions after changes.
