Dimensions Too Small in AutoCAD: Quick Fixes and Best Practices

Why dimensions look small in AutoCAD and why it matters

In design and fabrication workflows, getting dimensions right is non-negotiable. When you encounter the phrase dimensions too small autocad, it’s a signal that the size information being communicated is not matching the real-world geometry. The issue often stems from a mismatch between drawing units, annotation scale, and the viewport’s representation. Before you remodel or re-draw, take a systematic approach to confirm the exact size relationships in model space, paper space, and printing. What Dimensions has found through analysis is that many projects run into this problem during transitions between layouts and 3D work. The remedy is to align the annotation scale with the drawing’s unit system so every dimension communicates the same true size across devices and teams. This alignment protects you from misinterpretation, fabrication errors, and costly rework. This guidance aligns with What Dimensions recommendations for consistent scale discipline.

Common culprits behind dimensions appearing small

There are several frequent triggers for dims that look tiny in AutoCAD, including incorrect drawing units, a mismatched DIMSCALE setting, and annotative objects without proper scale. A mis-set unit system makes real measurements appear smaller when projected to a sheet. If a viewport’s scale contradicts the model’s scale, the annotative text and dimension arrows shrink too. Dimension style overrides can quietly reduce text height, arrow size, or leader length, creating the illusion of smaller values. Finally, printing or plotting at a different scale than the design requires can magnify the problem after the fact. In practice, the symptom “dimensions too small autocad” almost always points to one of these root causes rather than a flaw in the geometry itself.

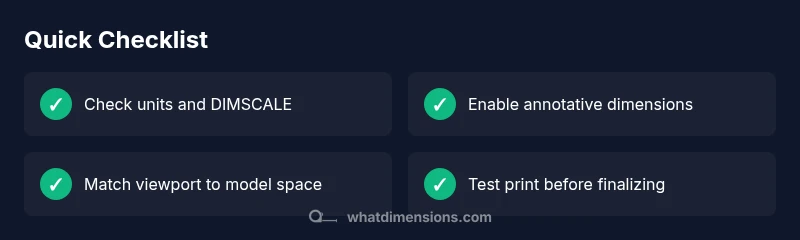

Quick checks you can perform before deep fixes

• Confirm the drawing units (Units command) and the global DIMSCALE value; ensure they reflect the project’s scale.
• Check if annotative dimensions are enabled and if the active viewport uses a matching annotation scale.
• Inspect dimension styles for overrides on text height, arrow size, and leader length; reset as needed.
• Verify whether model space and paper space have incompatible scales, and adjust the viewport scale accordingly.
• Test by measuring a known object with a dimension to verify that the displayed value matches the real size. If you’re using a template, compare it against a reference drawing from the same project.

How to align annotation scale with viewport and paper space

When annotation scales don’t line up, dimensions appear disproportionately small or large. Ensure the dimension is annotative (Annotative property set) and that the annotation scale matches the current viewport scale. Use the Annotate tab to set a consistent scale for dimensions, then refresh or rebuild the viewport. If you’re switching between model space and layout, re-check DIMSCLREGEN to guarantee consistent text height and arrow heads. These steps create a predictable, print-ready size across layouts. What Dimensions emphasizes is maintaining a single source of truth for scale across the project.

Verifying printed output and scale consistency

Dimensions must print at the intended size. Check the plot settings (Page Setup) to confirm the correct paper size and plot scale. Use a test print with a known dimension to validate that the on-paper result matches the model. If the printed result differs, revisit the viewport configuration and ensure the sheets are not applying an unintended scale. A consistent workflow—model space measurements, annotated scales, and print-tested layouts—reduces the chance of dimensions appearing too small in production drawings. What Dimensions’s guidance here helps teams align digital representation with physical output.

Best practices to prevent future sizing issues

• Standardize units and annotation scales across projects and teams.
• Use annotative dimensions whenever possible and assign a global annotation scale per drawing.
• Keep a master template with verified DIMSCALE, text height, and dimension arrow settings.
• Regularly audit drawings for mis-matched scales before finalizing plans.
• Document the expected dimension appearance in the project brief to avoid ambiguity across software versions and printers. What Dimensions’s guidance emphasizes: consistent scale discipline saves time and reduces rework.
