How to Make Dimensions Text Bigger in AutoCAD

Why legible dimension text matters

Clear, legible dimension text is essential for accurate interpretation of drawings. When dimensions are too small, reviewers may misread critical measurements, leading to costly rework or manufacturing errors. What Dimensions emphasizes that consistent, readable text helps engrave the intended tolerances and spatial relationships into the project documentation. In professional environments—architecture, engineering, and interior design—the standardization of text size across drawings reduces ambiguity and speeds up approval processes. By choosing a text height that aligns with your project’s font and scale, you improve clarity for any reader, from contractors in the field to clients reviewing layouts. This section explains how a deliberate approach to dimension text size aligns with industry best practices and project standards.

• Size matters: legibility depends on context, font, and scale.
• Consistency across sheets minimizes confusion during reviews.
• Documentation of your chosen text height helps enforce standards across teams.
• What Dimensions provides guidance on applying consistent dimension text sizing across drawings.

In practice, a modest increase in text height can dramatically improve readability without compromising the overall design. Start with your project’s typography guidelines, apply a single, consistent height to all linear dimensions, and verify legibility in both printing and on-screen reviews. A well-chosen height also supports accessibility goals, ensuring that measurements are easy to read for collaborators with varying vision needs.

Understanding how AutoCAD handles text size: text height vs annotative scale

AutoCAD differentiates between the Text Height used in dimension styles and the annotative scale that adjusts how text renders across different viewports and print scales. Text Height is defined in drawing units and is stored with the Dimension Style. If you switch to a larger height, all dimensions that use that style inherit the change. Annotative scaling, on the other hand, automatically resizes annotation objects to maintain legibility when you switch between model space and layouts. This separation allows you to keep a single, consistent design intent while still presenting correctly on various sheet scales.

Key concepts:

• Text Height is part of the Dimension Style and influences all dimensions using that style.
• Annotative dimensions resize with the annotation scale, helping maintain readability on layouts with different scales.
• For multi-sheet drawings, annotative scaling is often the preferred approach to ensure legibility without creating separate styles for each sheet.

When planning to increase dimension text size, decide whether to apply changes globally via the Dimension Style or selectively per sheet using annotative dimensions. This choice affects how you prepare templates, how you relay standards to teammates, and how you validate prints.

Methods to increase dimension text size: three reliable approaches

There are several reliable routes to enlarge dimension text in AutoCAD, depending on your workflow and project needs. The most robust approaches are: (1) updating the Dimension Style Text Height to a larger value, (2) enabling annotative scaling so dimensions adapt across sheet scales, and (3) creating a dedicated text style with a larger height applied through a separate Dimension Style. Each method has its use cases:

• Global Dimension Style Text Height: This is the simplest method for uniform drawings. Change the Text Height value in the current Dimension Style; all dimensions referencing that style adopt the new height.
• Annotative dimensions: Use annotative text so dimensions automatically resize when you switch between model space and layouts or when printing at different scales.
• Per-dimension overrides (sparingly): You can override Text Height for individual dimensions, but this often creates inconsistencies. Reserve overrides for exceptions only and document the reasoning.
• Font and readability: Pair the increased height with a clean, legible font and adequate line spacing to avoid crowding with arrows and leaders.

A well-planned combination of these methods yields predictable results. Projects that use multiple sheets and scales benefit most from annotative dimensions, while simpler drawings can rely on a single, higher Text Height in the dimension style. Remember to test changes in both on-screen views and print previews to confirm legibility.

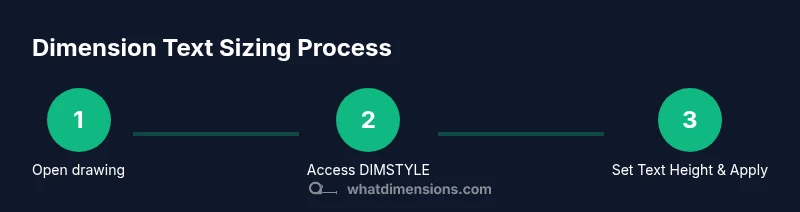

Step-by-step approach: applying a larger Text Height via Dimension Styles

Applying a larger Text Height through the Dimension Style is a common, repeatable method. Start by opening the Dimension Style Manager and selecting the active style. Increase the Text Height in the Text tab to a value that preserves legibility on all intended print scales. After applying, inspect several dimensions in model space and each layout to ensure uniform appearance. If needed, adjust the height slightly to balance readability with spatial constraints. This method ensures consistency across the entire drawing set and reduces the risk of mismatched text while preparing for revisions or client reviews.

Step-by-step approach: using annotative scaling for multi-sheet consistency

Annotative scaling lets you maintain readable dimension text across sheets with different scales without changing the base height. Enable annotative for your dimension objects and set a base Text Height that remains constant while the annotation scales adjust automatically in layouts. Verify by switching between plan and detail views, then print previews to confirm legibility at each scale. If your project uses standard sheet sizes, documenting the annotation strategy helps teammates reproduce the same results quickly.

Tip: Keep a consistent annotative scale list across your templates to prevent unexpected size changes when new sheets are added.

Step-by-step approach: per-dimension overrides and when to use them

In some cases, you may need to override a single dimension’s text height to emphasize a critical measurement. This technique should be used sparingly and only after establishing a global standard. Select the dimension, access its properties, and adjust the Text Height field. Remember that overrides can become inconsistent across a drawing set, so document the rationale and re-verify on all sheets after changes.

Tip: Prefer adjusting the Dimension Style over per-dimension overrides for long-term consistency.

Step-by-step approach: verification, printing, and quality checks

Before finalizing, perform a thorough check: compare model space and each layout's dimension text to ensure legibility, verify that there is no overlap with dimension arrows or leaders, and run a test print or PDF export. Check that the chosen height aligns with company standards and client preferences. If discrepancies arise, revisit the Dimension Style or annotation settings and adjust accordingly to maintain consistency across the entire project.
