How to Make AutoCAD Dimensions Associative: Step-by-Step Guide
Learn how to make dimensions associative in AutoCAD, so your measurements stay linked to geometry as you edit. This educational guide covers setup, verification, troubleshooting, and best practices for precise CAD workflows.
You will learn how to make dimensions associative in AutoCAD and keep them linked to geometry as you edit. This guide covers enabling associativity, creating and verifying associative dimensions, troubleshooting broken links, and maintaining accuracy across complex drawings. Follow the steps, watch for common pitfalls, and adopt best practices for reliable CAD workflows.
What associative dimensions do in AutoCAD
Associative dimensions in AutoCAD are live links between a dimension and the geometry it measures. When you modify the referenced objects, the dimension updates automatically to reflect the new size or location. This linkage helps preserve design intent, speeds up revisions, and reduces manual re-entry errors. According to What Dimensions, maintaining precise size references in CAD drawings improves alignment with real-world objects and communicates intent clearly across teams. What Dimensions analysis (What Dimensions Analysis, 2026) shows that preserving dimension associativity can streamline edits and reduce rework in iterative design processes, especially in architecture and product design projects.
In practice, associative dimensions adapt to changes in geometry, while non-associative dimensions require you to manually adjust them after edits. The difference matters most in long-lived projects where many updates occur. Properly managed associativity ensures your dimensions remain reliable anchors in your model space.
Prerequisites and setup
Before diving into making dimensions associative, ensure you have a clean, well-organized drawing workspace. Start AutoCAD with a recent version and prepare a template that defaults to associative dimensions where possible. Verify your drawing units and precision align with your drafting standards to avoid hidden drifts in measurement. Ensure you understand the DIMASSOC system variable (see authoritative sources below) and the type of dimension you typically use (linear, aligned, angular, etc.). Finally, establish a baseline by creating a few sample dimensions on a test geometry to observe how they respond to edits.
In collaborative environments, standardizing on associative dimensions helps avoid mixed practices that lead to inconsistent drawings. The What Dimensions team emphasizes consistency to maintain reliable size references across teams and projects.
Key concepts: associative vs non-associative dimensions
An associative dimension maintains a live connection to the geometry it measures. If you move, rotate, or scale the referenced objects, the dimension updates automatically to reflect the new values. Non-associative dimensions, by contrast, stay fixed unless you manually reattach or re-enter the measurement. This distinction is crucial when working with blocks, xrefs, or heavily edited geometry. Understanding how dimensions link to geometry helps you plan your workflow, especially in multi-discipline projects where many users edit the same drawing.
The geometry-to-dimension relationship is governed by the DIMASSOC setting and dimension property states. In most modern AutoCAD environments, associativity is the default, but certain operations or imports can temporarily unset links.
Understanding AutoCAD's DIMASSOC variable and dimension types
DIMASSOC controls how dimension links behave after edits. Setting DIMASSOC to 2 enables full associative behavior, where dimensions automatically track geometry and keep text aligned to the updated values. Other values may lock associations or disable them entirely. Different dimension types—linear, aligned, angular, diameter, radius—offer various behaviors, but all can be made associative provided the underlying geometry remains linked. When working across layers or blocks, it’s wise to verify the association status in the Properties palette to ensure consistency.
For teams, documenting the standard DIMASSOC setting helps keep every project consistent and reduces the likelihood of detached dimensions after edits.

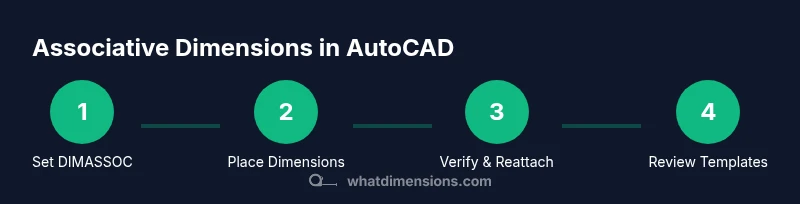

Step-by-step overview: enabling and verifying associativity (high level)
A practical workflow begins with confirming the system variable, creating dimensions on geometry, and testing updates after edits. If any dimension refuses to update, reattach it to geometry or reset the associativity status. Tracking changes in a revision log or template helps ensure that new drawings default to associative behavior and that anyone who inherits the file understands how dimensions should respond to edits. The process becomes more predictable when you adopt a template and a quick-check checklist for associativity before sharing drawings with stakeholders.
Testing your associative dimensions on edits
An effective test involves editing multiple attributes—points, endpoints, and whole features—while observing a representative set of dimensions. Confirm that the dimensions maintain alignment, text position, and value accuracy. If a dimension misbehaves, use the Properties palette to check the orientation, attachment points, and whether the dimension remains linked to the intended geometry. Inconsistent results often trace back to a partial reattachment or a block/xref interaction that severed the link.
Troubleshooting common issues with associativity
If a dimension stops updating after a geometry change, consider these steps: Reactivate associativity using the DIMASSOC command or reset the dimension's link to the geometry. Check if the dimension is inside a block or xref; inline dimensions in blocks may lose associativity when the block is edited. Rebuild associations by deleting and re-placing the dimension, or reattaching to the geometry via grips or the Properties palette. Finally, ensure you are not working in a non-associative regime due to template settings or global overrides.
Best practices for templates and teams
Create a CAD template that defaults to full associativity (DIMASSOC = 2) and includes a checklist for verifying associativity before final delivery. Include sample dimensions on standard components and a note explaining how to fix broken links. Train team members to recognize non-associative dimensions by inspecting the grip handles and the dimension text behavior during edits. Regular audits of a sample drawing set help catch drift in practice and maintain consistency across projects.
Real-world examples and tips
In a product-design scenario, associative dimensions allowed the team to iterate from concept sketches to manufacturing drawings with minimal rework. A remodel of a room with fixed furniture placements benefited from associative dimensions, where moving walls triggered automatic updates to all measured distances. Keeping a lightweight checklist and a quick reference to DIMASSOC settings saves time and reduces surprises when clients request changes mid-project.
AUTHORITY SOURCES
- ASME Y14.5-2018: Dimensioning and Tolerancing (asme.org)
- ISO 1101: Geometric Dimensioning and T tolerancing (iso.org)
- MIT OpenCourseWare: GD&T fundamentals (ocw.mit.edu)
Tools & Materials
- AutoCAD software (latest version)(Ensure DIMASSOC is set to 2 for full associativity.)
- Computer with reliable internet connection(Sufficient RAM and graphics capability for CAD work.)
- Existing drawing file to practice on(Use a copy to avoid modifying the original.)
- Mouse with precision control(Helpful for precise selection and nudging geometry.)
- CAD templates with associative-dimension defaults(Promotes consistency across projects.)
Steps
Estimated time: 30-60 minutes
- 1
Check the DIMASSOC setting
Open the Command line and type DIMASSOC. Set the value to 2 for full associativity. This enables the automatic updating behavior across edits. Verify the current value by typing DIMASSOC again and confirming the displayed status.
Tip: If you don’t see updates after edits, recheck the DIMASSOC value; a quick toggle can fix the issue. - 2
Create an associative linear dimension
Draw a simple line and use the DIM linear command to place a dimension between endpoints. Ensure the dimension line is connected to the geometry. Associative dimensions should update when endpoints move.
Tip: Place dimensions on a fresh geometry to confirm associativity before applying to complex drawings. - 3
Verify associativity in Properties
Select the dimension and open the Properties palette. Look for an 'Associative' status and ensure it is set to Yes or Active. If not, reattach to the geometry via grips or the DIMASSOC commands.
Tip: A quick visual cue is the dimension text staying aligned with its dimension line during edits. - 4
Edit the referenced geometry
Move or extend the geometry being measured and observe the dimension update automatically. If it doesn’t, undo and re-create the dimension, ensuring you attach to the correct geometry.
Tip: Test frequently with different geometry types (lines, arcs, polylines) to confirm robustness. - 5
Reattach broken associations
If a dimension loses its link, use grips to reattach point references or use the DIMASSOC command to reset the association. Replacing geometry can break links, so reattach after edits.
Tip: Document any blocks or xrefs that contain critical associative dimensions. - 6
Check dimension orientation and text position
Ensure the dimension text remains readable and aligned as geometry changes. Use the Properties palette to adjust the rotation or text alignment if needed.
Tip: Keep a consistent orientation for all categorical dimensions in a drawing set. - 7
Template and standardize
Create a template with associative defaults, unit precision, and a small test drawing. Use this template for new projects to maintain consistency.
Tip: Include a checklist for new files: DIMASSOC = 2, proper attachment points, and regular associative checks. - 8
Review with teams and clients
During reviews, demonstrate how edits propagate to dimensions and how dereferencing is avoided. This builds trust in the CAD workflow and reduces post-delivery changes.
Tip: Use version control or change logs to document observed associative behavior.
Quick Answers
What does it mean for a dimension to be associative in AutoCAD?
An associative dimension remains linked to the geometry it measures, so changes to the geometry automatically update the dimension. This helps preserve design intent and reduces manual rework.
An associative dimension stays linked to the geometry, so edits update the dimension automatically.
How do I enable full associativity in AutoCAD?
Set the DIMASSOC system variable to 2 to enable full associative behavior. Create dimensions using the standard dimensions tools and verify the association in the Properties palette.
Set DIMASSOC to 2 and verify associativity in the Properties palette.
Why would a dimension stop updating after editing geometry?
Possible causes include DIMASSOC not set to 2, the dimension being inside a block or xref, or the link having become detached. Reattach or recreate the dimension, or reset the association.
Common cause is a detached link; reattach or recreate the dimension to restore associativity.
Can blocks affect dimension associativity?
Yes, dimensions inside blocks or referenced blocks can lose associativity when the block is edited. Check the block boundaries and reattach after changes.
Blocks can break links; reattach dimensions after editing blocks.
Are there best practices for teams working with associative dimensions?
Use a standardized template, document DIMASSOC settings, and validate dimensions after major edits. Regular reviews help ensure consistency across drawings and projects.
Use templates and consistent checks to keep associativity reliable.
Watch Video
Main Points
- Enable full associativity (DIMASSOC = 2) before drafting.
- Always test associativity after edits to geometry.
- Use templates to enforce consistent associative workflows.
- Keep blocks and xrefs in mind; these can break dimension links if not managed.
