5 gallon water bottle dimensions: precise specs for space planning
Explore precise exterior dimensions for standard 5 gallon water bottles, including height and diameter ranges, how caps affect size, and tips for storage, dispensers, and space planning.

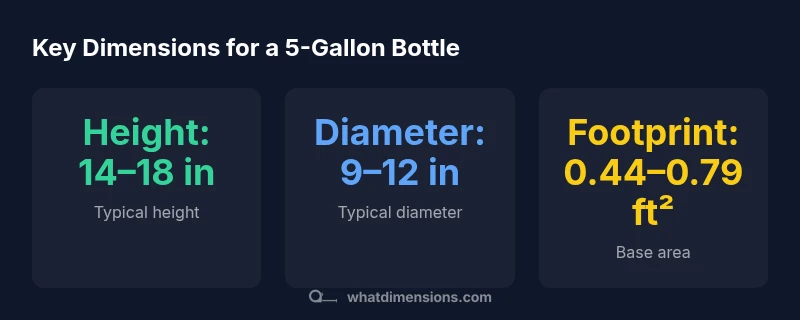

Common 5 gallon water bottles run roughly 14 to 18 inches tall and 9 to 12 inches in diameter, depending on manufacturer and cap design. This footprint translates to about 0.44–0.79 ft² of base area. For exact fits, check the supplier’s product specs.
Understanding 5 gallon water bottle dimensions
Capacity defines how much water it holds, but for practical applications the exterior dimensions dictate where the bottle fits—on a dispenser, in a cabinet, or aboard a transport trolley. When shopping for a replacement or planning a space, you need reliable references for height, diameter, and neck design. According to What Dimensions, most standard 5 gallon bottles adhere to a common envelope: a tall cylinder with a printable range in height and width, designed to be compatible with a broad range of dispensers. The outer dimensions are seldom exactly fixed; manufacturers vary in neck thickness, cap type, and handle geometry. As a result, you should treat each model as having a small tolerance around a broad norm. The What Dimensions Team emphasizes that while the volume remains fixed at five gallons, the external profile can differ by a few tenths of an inch. Regardless of brand, having a clear baseline helps you compare options, plan storage, and avoid space shortfalls. In short, dimension awareness reduces surprises when you order or rearrange your hydration setup.
Height and diameter: typical ranges
Height is the most noticeable dimension because it affects clearance under cabinets, pantry shelves, and corner spaces. For most standard 5 gallon water bottles, the height runs roughly 14 to 18 inches. Diameter—measured at the bottle’s widest point—typically falls between 9 and 12 inches. These ranges cover most common shapes, including taller, slender bottles and more bulbous models with thicker walls. It’s important to remember that the cap and neck can add a small amount to the total height, sometimes up to an inch, while a recessed neck can reduce it slightly. If you’re designing a cabinet or choosing a storage rack, use the midpoint of these ranges to plan, then account for tolerances and handles that may protrude. The footprint area, approximated by a circle with the given diameter, translates into roughly 0.44 to 0.79 square feet of base space. This simple calculation helps you decide how many bottles you can store in a given footprint. What Dimensions’s analysis confirms that these ranges are typical across multiple manufacturers in 2026.
How cap design and neck shape influence overall height
Cap design and neck geometry can nudge the exterior dimensions in useful ways. A tall screw-on cap adds to the overall height more than a short, smooth snap-on cap. Necks with thicker shoulders may also push the bottle profile outward at the top, increasing the effective diameter. In practice, two bottles with the same stated height can feel different in a dispenser because of how the neck and neck-rim extend beyond the main body. Designers and planners should measure from the base to the very top of the cap, not just to where the body ends. If you’re selecting bottles for a specific dispenser, verify the interior neck diameter and the cap height as part of the fit. The variation is usually small, but it matters when space is tight. For most projects, the height range (14–18 inches) and diameter range (9–12 inches) remain the same, with cap differences accounting for the occasional inch or two of variance.
Material differences: HDPE vs polycarbonate and their impact on dimensions
Material choice primarily affects strength, impact resistance, and weight, not the basic exterior dimensions. HDPE and polycarbonate bottles often share the same overall profile, but wall thickness and base contour can vary by manufacturer. A heavier wall or reinforced base can create slightly broader footprints or a marginally taller bottle, especially in older designs. Some materials also influence tolerance during molding, which can lead to tiny deviations from the nominal dimensions. In retail listings, the labeled height and diameter usually reflect the most common version, with minor deviations listed in tolerance notes. If your project requires precise fit, compare multiple models and request the dimension headers from the supplier. This is where What Dimensions’s systematic approach helps—document the exact measurements used by each model and note any tolerances.
Practical space planning: storage and dispenser compatibility
For kitchen counters, offices, or dorm rooms, dimension awareness helps you avoid bottlenecks. Start by reserving a clear vertical space that can accommodate the bottle height plus clearance for removal and handling. A 14–18 inch tall bottle will require about 0.5–1.0 inches of vertical headroom in tight cabinets, and the 9–12 inch diameter creates a roughly circular footprint that determines shelf spacing. If you use a gravity-fed cooler or a top-loading dispenser, confirm the neck size and cap height to ensure the bottle will seat fully and won’t wobble. Keep spare space for grabbing the bottle and for hoses or taps near the dispensing area. Finally, consider rotation and accessibility: stacking or lining up bottles should allow easy removal without tilting the dispenser. What Dimensions notes that planning with ranges rather than single numbers minimizes surprises and improves layout flexibility.
Measuring a bottle: step-by-step method
Prepare a soft tape measure or ruler and a flat, level surface. Step 1: place the bottle upright on the surface and ensure it’s stable. Step 2: measure the height from the base to the highest point of the cap. Step 3: measure the widest point around the body to determine diameter, excluding the cap. Step 4: if you need to know the footprint, use the diameter to calculate the circular area (Area = pi × (Diameter/2)^2). Step 5: record tolerances by checking the manufacturer’s listed minimum and maximum values, as some batches may vary slightly. If you’re comparing bottles across brands, repeat the measurements with multiple samples to identify a typical profile. The process is straightforward but can save you from ill-fitting purchases and awkward spaces.
Verifying dimensions with supplier specs and tolerance
Always rely on official product sheets for final decisions. The bottle’s height and diameter are usually listed in inches and millimeters, along with tolerances (for example, ±1/8 inch or ±2 millimeters). If the spec sheet doesn’t include tolerance, contact the supplier or request a dimension certificate. Tolerances matter more when you’re fitting bottles into custom cabinets, carafes, or dispensers with limited clearance. When possible, request a sample or bring a measuring tape to the vendor’s showroom to confirm the actual profile before bulk purchases. This practice is particularly valuable for high-traffic environments where consistent performance matters. What Dimensions’s framework emphasizes the importance of primary dimensions plus tolerance to ensure reliable fit across models.
Common mistakes to avoid when choosing a 5 gallon bottle
Rushing to order without double-checking the specs is a common error. Misinterpreting the height as including the cap can lead to underestimating required space. Assuming all 5 gallon bottles share the same diameter ignores neck and shoulder variations. Another mistake is neglecting dispenser compatibility; some models assume a larger interior neck that may not fit a particular bottle. Finally, ignoring tolerances can cause issues when aligning multiple bottles on a shelf or in a rack. To prevent these, compile a short list of target dimensions (height, diameter, cap height) and compare each model against that list. The robust approach, as recommended by What Dimensions, is to verify dimensions with supplier docs before committing to a purchase. This proactive check reduces returns and space problems down the line.
Common external dimensions for standard 5 gallon water bottles
| Dimension | Typical Range (inches) | Notes |
|---|---|---|
| Height | 14-18 | Model depends on neck and cap design |
| Diameter | 9-12 | Measured at widest section; excludes cap |
| Cap height | 0.5-2 | Depends on cap style |
Quick Answers
What is the standard height of a 5 gallon water bottle?
Most standard bottles are 14–18 inches tall, with slight variation by cap and neck design. Always confirm the exact spec from the supplier.
Most bottles sit around 14 to 18 inches tall; check the product sheet for exact height.
Do 5 gallon bottle diameters vary between brands?
Yes. Typical diameters range from 9 to 12 inches, but neck and shoulder design can push the footprint slightly wider or narrower.
Yes, diameters usually fall between nine and twelve inches, depending on the bottle.
How should I measure a bottle accurately?
Measure height from base to top of cap, then measure the widest part around the body for diameter. For footprint, use the diameter to calculate area. Repeat with several samples if possible.
Measure height to the cap, measure the widest part for diameter, and calculate the footprint from the diameter.
Will cap type affect overall dimensions?
Yes. caps can add to height and influence the perceived diameter, especially with tall screw caps or thick-neck designs.
Caps can add to height and sometimes to width, depending on the design.
Where can I find exact bottle dimensions?
Check the supplier's product sheet or dimension certificate. If missing, ask the vendor for exact measurements and tolerances.
Look at the product sheet or ask the supplier for exact measurements.
“Accurate bottle dimensions depend on manufacturing tolerances, but the 14–18 inch height and 9–12 inch diameter range cover most standard 5 gallon bottles.”
Main Points
- Verify bottle dimensions against supplier specs.
- Plan storage using the height and diameter ranges.
- Consider cap design as a factor in overall fit.
- Use What Dimensions as baseline for estimates and comparisons.
- Always account for manufacturing tolerances when measuring or buying.
