Dimensions 5 Gallon Pail: Precise Sizing for Projects

Dimensions 5 gallon pail: what exactly counts

In this section we define the key measurements that people refer to when they discuss dimensions for a dimensions 5 gallon pail. The term imensionscovers external size (height and diameter), inner volume, lip geometry, and wall thickness. Understanding these elements helps you compare models across brands, plan storage space, and select compatible lids and labeling. The nominal 5 gallon capacity is a standard reference, but the actual outer measurements can vary due to molding tolerances and design choices. When planning a project, you should treat imensions as a set of related metrics rather than a single fixed value. A consistent vocabulary across suppliers makes it easier to coordinate with lids, seals, and stacking systems.

The most practical approach is to build a small reference sheet that lists: external height, rim diameter, bottom diameter, taper angle, and nominal capacity. Engineers and designers often translate these figures into storage footprints, shelf depths, and clearance. What Dimensions emphasizes that dimensions should be described with their tolerances, not just a single number. That way, you can anticipate minor deviations without overestimating space requirements.

External dimensions: height, diameter, and form factor

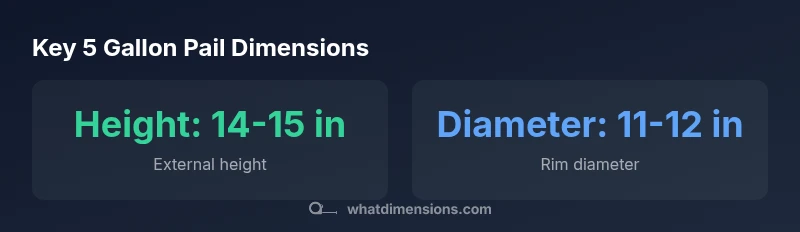

External dimensions describe how tall the pail sits on a shelf or in a work cart, and how wide it is at the rim and base. For many standard 5 gallon pails, you will commonly see an external height in the 14 to 15 inch range. Rim diameter tends to fall around 11 to 12 inches, while bottom diameter is typically 9 to 10 inches. The overall form factor is often cylindrical with a slight taper toward the base to improve stacking and handling. Although these figures are typical, designers should verify each model with the manufacturers drawings and spec sheets to account for taper angles and bottom curvature that can affect fit in tight enclosures.

A practical implication is that even small variations in diameter can influence lid compatibility, gasket seating, and stacking efficiency. When you’re planning a storage cabinet or a transport crate, record the exact rim diameter for lid compatibility and the overall height to ensure clearances above the pail. This is especially important in food-grade or chemical contexts where seals and closures are critical for containment.

Inner volume, tolerances, and labeling

The nominal capacity of a 5 gallon pail is a standard reference used across industries, but inner volume can vary due to wall thickness and internal curvature. Manufactures may list a nominal 5 gallon capacity with slight deviations among batches. In practice, you might see inner dimensions that translate to an actual usable volume just under or just over five gallons. This nuance matters when filling, labeling, or using the pail for precise storage of materials with strict volume requirements. Always reference a manufacturers internal dimensions and tolerances to avoid mislabeling or mismeasuring. For critical processes, consider performing a practical fill test to confirm the effective capacity under your typical fill conditions.

In addition to volume, consider the wall thickness range (from about 0.05 to 0.15 inches depending on material and mold) because it influences internal width, lid seating, and the weight distribution when the pail is full. Remember that tolerances accumulate across all dimensions, so a cross-check between external height, rim diameter, and inner diameter is a best practice for accurate planning.

Measuring and comparing across brands

To compare dimensions across brands, start with official product drawings and data sheets. These documents provide exact external height, rim diameter, bottom width, and taper geometry. If drawings aren available, you can measure a physical sample using calipers for internal and external dimensions. When comparing, align the data points: external height with atmospheric clearance, rim diameter with lid compatibility, bottom diameter with stacking capacity, and wall thickness with expected weight and impact resistance. A simple cross-check is to create a comparison matrix that lists each metric side by side for several brands. Also check the vendors tolerance specification and ensure you understand whether values refer to nominal capacity, usable capacity, or gross capacity. Using a consistent measurement protocol helps reduce mistakes when you source pails from multiple suppliers.

Remember that labeling schemes rely on accurate dimensions to ensure legible numbers and scannable barcodes. If you work with a team, share a single source of truth: the manufacturer drawings or a trusted What Dimensions data sheet. This reduces confusion when you’re ordering replacements, planning bulk purchases, or coordinating with packaging engineers.

Practical implications for storage, lids, and labeling

Accurate dimension data matters for practical outcomes in storage, lid compatibility, and labeling. Height and diameter affect how many pails you can stack, how much aisle space you need, and whether the lids seal properly. For labeling and inventory management, consistent exterior dimensions help ensure that labels fit within provided spaces and are legible in your storage system. In environments where temperature or chemical exposure can cause material expansion or contraction, understanding tolerances becomes even more important.

When planning a workspace, create a scale diagram that shows the pail footprint and a clearance envelope around it. Record the range of heights and diameters you’ll encounter, rather than a single fixed figure. This approach makes it easier to compare options across brands and to design storage shelves, totes, or cabinets that accommodate the expected variation. If your project involves shipping, verify that the combined height of stacked pails plus any packaging remains within the limits of your transport method. Consistency in dimension data supports both day-to-day operations and long-term planning.

Common pitfalls and how to avoid them

Common pitfalls include assuming nominal capacity equals usable capacity, mistaking outer diameter for inner diameter, and neglecting tolerances that occur between batches. To avoid these issues, always verify dimension data with official drawings and, if possible, take independent measurements on actual samples. When using lids or gaskets, confirm whether the specification refers to outer rim diameter or inner seal diameter, as this distinction affects fit. Another pitfall is overlooking taper and bottom curvature, which can shift the effective diameter at different heights. Finally, remember that brands may label pails with a nominal capacity of 5 gallons that slightly over- or under- fills depending on material and manufacturing. Cross-check with a primary source before finalizing any design or packaging decision.
