How to Write Dimensions: A Practical, Precise Guide

Why precise dimensions matter

In design, manufacturing, packaging, and interior layout, precise dimensions prevent costly mistakes, misfits, and returns. Clear size specs help suppliers order correctly, designers communicate intent, and customers receive products that fit as intended. According to What Dimensions, consistent dimension practices reduce ambiguity across furniture, paper, electronics packaging, and luggage. The What Dimensions team notes that when teams agree on a single set of units and a standard notation, cross‑functional reviews move faster and fewer adjustments are needed during production.

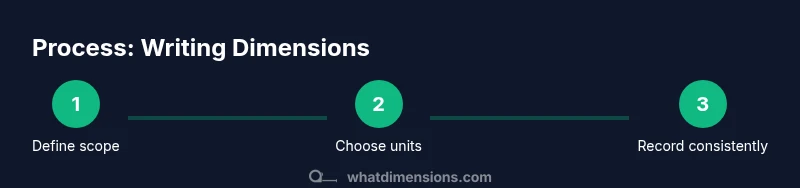

This foundation affects everything from a bookshelf to a shipping carton. Within a project, start by asking what will be measured, which units will be used, and in what order the measurements should appear. The simplest rule is to define a scope up front: list the object, its primary dimensions, and the units that will be used for every measurement. In practice, this means creating a brief dimension schema at the top of the document—objects, units, and the order used for all measurements. If there is a CAD drawing, attach a legend that explains abbreviations and the reference surfaces. Clear dimensions are not just numbers; they are a contract between disciplines that keeps projects on track and aligns expectations across teams.

Establishing a consistent notation system

Notational consistency means choosing one measurement system (metric or imperial) and sticking with it throughout a document or specification set. When you mix units, you invite conversions that create errors. What Dimensions analysis, 2026, emphasizes the value of a single unit system for clarity—whether you work in millimeters for CAD drawings or inches for packaging specs. For international projects, choose the unit that aligns with your supply chain and declare it at the top of the document. If you must switch units, define the conversion rule explicitly and include both values on first reference, then retire the older unit later.

What about notation style? Use a clear format such as L × W × H for boxes and furniture, or Ø for circles. For widths and heights measured perpendicularly to a reference plane, specify the reference direction, e.g., outer diameter, maximum height. Each field title should be unambiguous: Length, Width, Height, Diameter, Radius, or Depth. Adopt consistent abbreviations (e.g., L, W, H) only after you have defined them in a legend or header. Do this once, then reproduce exactly the same labels across all drawings and documents. The payoff is speed: reviewers spend less time interpreting measurements, and downstream systems ingest data more reliably.

Order of dimensions and formatting

Objects come in many shapes, and the order of dimensions should reflect how a reader uses the information. In consumer packaging and furniture specs, the common order is Length × Width × Height (L × W × H). When you describe circular items, use Diameter (Ø) or Radius (R) as the primary dimension. For flat materials like sheets or boards, treat length and width as the primary directions, and note thickness separately (T or thickness). In CAD drawings, maintain the same order across every view to prevent misinterpretation. If you are dealing with nested components, include the inner dimension first when it governs assembly, then the outer dimension for overall fit. When tolerances apply, place them beside the main value using parentheses or a tolerance symbol, e.g., 120 mm ± 0.5 mm. Finally, ensure that units and decimal precision match the project’s requirements: a mismatch here is a common source of error. This consistency helps readers quickly scan documents and compare specs across suppliers, warehouses, and shipping labels.

Decimals, fractions, and tolerances

Decide on decimal precision before starting and apply it consistently. Decimal formats are easier for calculations and data entry, but fractions may be preferred in fabrication contexts (e.g., imperial woodworking). If you use fractions, provide a conversion to decimals in a legend to avoid ambiguity. Tolerance notation is critical for manufacturing: specify how close a dimension must be to the target value. Use standard tolerance notation (e.g., ±0.1 mm) and indicate whether tolerances apply to a particular dimension in isolation or to the overall assembly. In many technical documents, a tolerance stack summary communicates acceptable variations across a product. Always review dimension values with the same unit and ensure rounding is consistent across the document. Finally, include a note about measurement methods (calibrated tools, temperature conditions) when those factors impact the dimension.

Practical examples across common objects

Books and paper: 21 cm (W) × 29.7 cm (H) is the standard for A4 size; thickness 0.8 cm. For furniture, a sofa might be described as Length 200 cm, Depth 85 cm, Height 90 cm. Luggage examples: A suitcase 68 cm (L) × 46 cm (W) × 28 cm (D). Electronics: Monitor size often uses diagonal measurement, e.g., 65 cm diagonal; bezel adds to overall footprint. When dimensions are packaged, describe the outer carton: 720 mm × 540 mm × 420 mm with a 5 mm tolerance. The key is capturing function (what is measured) and reference (what is being measured). Additionally, for packaging, specify whether the dimensions refer to exterior size or cavity size, and note any protrusions like handles or feet that affect fit.

Documentation in drawings and specs

Annotate dimensions directly on drawings with leader lines and a consistent font size. In CAD exports, use a dedicated dimension layer and a single unit standard for each project. On print specifications, present dimensions near the relevant features, with the same order and units across all sheets. Provide a legend listing abbreviations (L, W, H, Ø) and the chosen unit system. When dimensions impact fit with other parts, include both the nominal value and a tested value, noting the measurement method. Maintain version control so that all stakeholders reference the same data. Finally, consider accessibility: ensure fonts are readable in small print sizes and that color contrasts remain legible for color-contrast compliance.

Common pitfalls and quick fixes

Pitfall: mixed units without clear conversions. Fix: declare the unit at the top and convert on first reference. Pitfall: inconsistent dimension order. Fix: apply L × W × H throughout the document. Pitfall: ambiguous terminology (e.g., height vs. length). Fix: label each dimension with a clear heading and a legend. Pitfall: failing to include tolerances where necessary. Fix: add ± values next to any critical size. Pitfall: failing to re-check measurements after revisions. Fix: implement a revision log and re-run cross-checks with stakeholders. By anticipating these issues and applying a consistent framework, you reduce misinterpretations and production errors. Finally, build a short checklist to run before finalizing any dimension sheet.
