How to Treat Dimensions: A Practical Sizing Guide

Why treating dimensions matters

Dimensions are more than numbers; they anchor design decisions, manufacturing tolerances, and user expectations. When you treat dimensions properly, you create a common language across teams, suppliers, and products. What Dimensions research shows that inconsistent dimension definitions often lead to mismatch errors, returns, and wasted time. A precise approach starts with a shared definition: identify exactly which dimension you are referring to (length, width, height, depth, thickness), and articulate the measurement reference point (from edge, inner surface, center, or nominal size). In practice, this means clarifying whether a measurement is external or internal, and whether it includes fixtures, finishes, cutouts, or packaging. Inconsistent references are the leading cause of misfit in furniture, printed materials, and travel gear. By stating the reference point up front, you reduce ambiguity and set expectations for everyone who handles the item.

Establishing a clear definition and units

A dimension should have a precise, unambiguous meaning, so everyone reads the same value the same way. Start by naming the dimension (for example, outer length) and then specify the measurement reference point (edge-to-edge, face-to-face, or center-to-center). Next, declare the unit system (metric or imperial) and the smallest practical increment (for instance, millimeters or 1/16 inch). Document any special conditions that affect the reading, such as whether temperature or material compression influences the measurement. When you build your definition, make sure to include an example measurement to illustrate the convention. This clarity reduces guesswork for designers, manufacturers, and customers.

Choosing units and tolerances

Unit choice shapes how measurements are recorded and communicated. Align on a single unit system within a project to avoid conversion errors. Tolerances define acceptable variation; they should reflect function, production methods, and assembly fit. Start with a baseline tolerance and adjust based on risk: high-stress joints or cosmetic finishes may require tighter bounds, while non-structural features can tolerate more variation. Avoid 'rounding by default' — decide rounding rules (to the nearest whole unit, tenth, or hundredth) and apply them consistently across all documents. Finally, include a quick reference table in your specification sheet to remind teams of the accepted units and tolerances for each dimension.

Tools and environment for precise measurements

Work in a clean, stable environment with tools calibrated to standard references. Use a quality tape measure or calipers, and keep a dedicated measuring surface free of debris. Calibrate tools before use and note the calibration date in your records. Protect fragile items during measurement and avoid measuring through coatings that add thickness. If measuring in the field, carry a compact back-up toolset and a small notebook for on-the-spot notes about conditions (temperature, humidity, surface texture).

Measurement techniques for consistency

Consistency comes from repeating method, posture, and timing. Use the same grip and body position for each measurement to minimize parallax errors. Take multiple readings, discard outliers, and compute an average. Record the date, instrument, operator, and ambient conditions with each measurement so you can reproduce results later. For irregular shapes, use contour or edge-finding methods and cross-check with a digital measurement where possible.

Common sources of dimensional errors and how to avoid them

Human factors, tool wear, and environmental conditions are frequent culprits. Misreading a scale, preloading a tape, or measuring over a curved surface produces biased results. Instrument drift can happen over time, so regular calibration is essential. Environmental conditions such as temperature can slightly expand or contract materials; compensate when high precision is required. Finally, document the measurement method used to minimize later disputes.

Documentation: naming, labeling, and archiving dimensions

Record each dimension with a consistent naming convention: [object]-[dimension]-[reference]-[units]. Attach the source or datum used for the measurement (e.g., part drawing number, date, operator). Keep an immutable audit trail by saving snapshots of the measurement context (photos of the object, tool display, and notes). Use a centralized repository or spreadsheet with version control so team members can retrieve the latest values and understand past decisions. Clear, well-structured documentation reduces misinterpretation and speeds up design-to-production handoffs.

Rounding rules and presenting final values

Define explicit rounding rules (e.g., round to the nearest millimeter or 1/16 inch) and apply them consistently. When presenting dimensions, include both the exact measurement and the rounded value where relevant; note the reason for rounding in a short comment. If a tolerance exists, show the lower and upper bounds rather than a single nominal value. This practice helps downstream users understand allowable variation and prevents over-tightening or under-fitting components.

Industry conventions and cross-domain considerations

Different domains adopt their own conventions for dimension notation (e.g., width x height x depth). For cross-domain projects (furniture, packaging, and shipping), align on a shared notation and convert between systems with documented accuracy rules. Consider regional differences in unit definitions (e.g., inches vs. millimeters) and how packaging adds thickness or protective layers that affect computed dimensions. Always confirm whether international standards require a particular reference point (edge, face, or center) for your dataset.

Real-world examples: furniture, paper, luggage

Example 1: a bookshelf's outer dimensions include planks and decorative trim; inner dimensions note shelf space. Example 2: a sheet of paper has a nominal size and a bleed area that adds to the final cut size; document both. Example 3: a suitcase's external length may include wheels; specify whether wheels and handles are included in measurements. In each case, apply your dimension definition, document units and tolerances, and ensure the final dataset matches the user’s expectations.

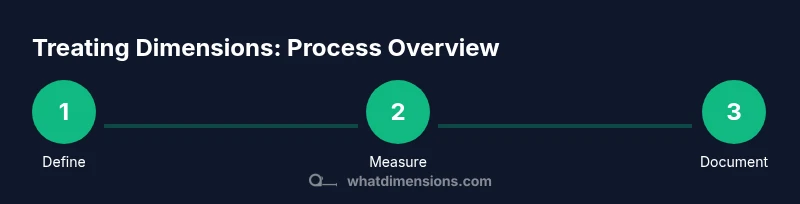

Quick-start checklist

• Define each dimension with a clear name, reference point, and units.
• Choose a single unit system for the project and document tolerances.
• Calibrate measuring tools before use and record the date.
• Measure at least twice and average results; note the conditions.
• Document method, instrument, and operator for traceability.
• Store measurements in a central, version-controlled repository.
