How to Format Dimensions: A Practical Guide
Learn how to format dimensions consistently across furniture, paper, luggage, and more with practical templates, units, and checklists to improve clarity and reduce errors.
Format dimensions by selecting a standard order (L × W × H), choosing a single unit system (inches or centimeters), and applying it consistently across text, tables, and drawings. Use templates for quick entries and verify every dimension against the source. This quick guide provides steps, templates, and checks to ensure clarity.
What formatting dimensions means in practice
According to What Dimensions, formatting dimensions means presenting size information clearly so readers, buyers, and designers understand exactly what's being measured. This includes choosing an order for the dimensions (length, width, height), selecting a unit system (inches or centimeters), and applying a consistent notation (L × W × H, Ø d, or linear sequences) across text, tables, and drawings. Consistency helps prevent misinterpretation and costly returns. In addition, context matters: specify when a dimension is typical rather than exact, and note any orientation or fit considerations that influence how the item will be used. By standardizing these elements, teams avoid mixed signals between product specs, procurement, and customer communications.
Standard formats by domain
Different domains have preferred formats. In furniture catalogs, the common convention is L × W × H with a single unit label (in or cm) after the numeric values, followed by a parenthetical if space is tight (e.g., 80 cm × 60 cm × 90 cm). For packaging and shipping, diameter might be listed first for cylindrical items (Ø 12 cm × 30 cm). In photography and printing, image dimensions are given as pixel counts or edge lengths (width × height) and, for printed media, as paper sizes like A4 or Letter with exact millimeter measurements. The What Dimensions Analysis shows that establishing domain-specific templates reduces errors when teams switch between product development, sales, and logistics. When dimensions are critical for fit, the order, units, and format should be consistent from the design brief to the shipment label.
Units, tolerances, and precision
Choosing a unit system is foundational. Decide whether to use inches and pounds or metric equivalents (centimeters and kilograms) and apply it universally. For tolerances, specify the allowable variation (for example, ±0.5 cm or ±1/16 inch) when relevant to manufacturing or packaging. Precision can vary by context: consumer-facing specs may list integer centimeters, while engineering drawings may require decimal precision. Maintain consistency by adopting a single decimal rule (e.g., 0.1 cm) and sticking with it across all references. The goal is clarity and verifiability, not numeric density. When tolerances are crucial, link the tolerance note to the summary specification so downstream teams don’t miss it.
Templates you can copy
Use these templates to standardize your entries across tables, catalogs, and drawings. They cover common scenarios and can be adapted to your needs:
- Rectangular items: L × W × H: [X] in × [Y] in × [Z] in (units at end) or L [X] cm × W [Y] cm × H [Z] cm. For orientation, specify if needed (H × W × D).
- Cylindrical items: Ø [diameter] in × [length] in or Ø [diameter] cm × [length] cm.
- Flat substrates: Width × Height [units] with optional corner radius if relevant (e.g., 8.5 in × 11 in, radius 0.125 in).
- Image and display sizes: Width × Height [pixels] or [dimensions in inches/cm] when printed. Remember to include units in all cases to avoid ambiguity.
- Special-case items (bags, rolls, cables): List the external dimension first, followed by a secondary dimension (e.g., Bag: 12 in × 10 in × 8 in; Cable: 2 m length).
How to implement formatting in documents
When you’re preparing specs for catalogs, packaging, or CAD exports, centralize formatting rules in a style guide or template library. Use tables for alignment, apply consistent font sizes, and place units after the numeric values. If you’re sharing across teams, provide both the human-readable version and a machine-readable version (CSV or JSON) to support data integration. Include a brief legend explaining abbreviations (L, W, H, Ø) and ensure all new items are added to the master template. In practice, you’ll save hours by reusing templates rather than rewriting formats for every product. Always run a quick validation pass to confirm all dimensions in a page follow the chosen order and unit system.
Common pitfalls and fixes
A few mistakes are easy to make but costly to correct later. Common issues include mixing unit systems within a document, using inconsistent dimension orders (L × H × W in one section and W × L × H in another), and omitting units entirely. To fix these, perform a centralized pass: map every dimension to the standard order, convert all units to the chosen system, and append explicit units to every numeric value. For complex items, use diagrams with labeled dimensions to complement the text. Finally, audit dimensions against source drawings or supplier specs to catch misprints or misinterpretations.
Quick references and checklists
Create a compact checklist you can keep at your desk or in your project folder. This helps you verify that every dimension entry adheres to the standard:
- [ ] Is the dimension order consistent (L × W × H or other approved format)?
- [ ] Are there explicit units on every value? (in, cm, mm, etc.)
- [ ] Are tolerances included where relevant? (e.g., ±0.5 cm)
- [ ] Is the notation clear and consistent with the domain template?
- [ ] Has the dimension been cross-checked against source drawings or CAD files?
A quick, repeatable workflow reduces errors and speeds up approvals across teams.
Tools & Materials
- Measuring tape or laser measure(Flexible tape for long dimensions; accuracy to at least 1 mm or 1/16 inch)
- Ruler or calipers(For small parts and precise edges; prefer metric and imperial if both used)
- Notebook or digital note-taking device(Record dimensions with source reference and date)
- Templates or style guide(Use master templates for consistent formatting (L × W × H, units, and punctuation))
- CAD export or document editor(Ensure capacity to export dimension data and maintain formatting in tables)

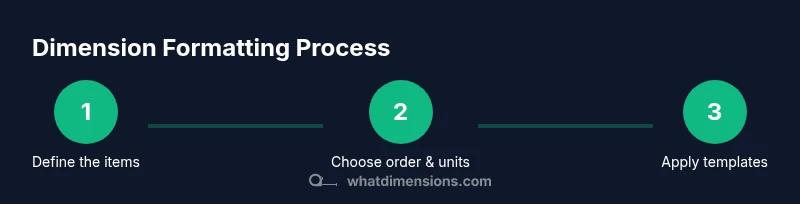

Steps
Estimated time: 20-40 minutes
- 1
Define required dimensions and units
Identify which dimensions are necessary to describe the item (e.g., L, W, H, diameter). Decide on the unit system (inches or centimeters) and mark it as the single standard for the document.
Tip: Document the chosen unit system in the project style guide to ensure consistency. - 2
Choose a standard dimension order
Select a consistent order (L × W × H is common for rectangular items; Ø for cylinders) and apply it everywhere in the document.
Tip: Avoid switching orders between sections; use templates that enforce the order. - 3
Apply a uniform notation
Decide how you’ll present units (after the number, e.g., 12 in) and how you’ll label dimensions in tables versus text.
Tip: Use a legend for abbreviations (L, W, H, Ø) visible to all readers. - 4
Fill out templates in your document
Insert dimensions into the chosen templates, ensuring all values carry units and follow the standard order.
Tip: Copy-paste templates for similar items to reduce manual errors. - 5
Cross-check against sources
Compare the formatted dimensions to the original design drawings, CAD exports, or supplier specs to verify accuracy.
Tip: Use a side-by-side comparison to spot discrepancies quickly. - 6
Proofread and finalize
Run a final pass to confirm consistency across the page or catalog, including punctuation and alignment in tables.
Tip: Have a second reviewer unfamiliar with the item check the dimensions for clarity.
Quick Answers
What does it mean to format dimensions?
Formatting dimensions means presenting size information in a clear, standardized way so readers understand exact measurements. It includes the order of dimensions, the units used, and the notation employed across text and visuals.
Formatting dimensions means presenting size information clearly using a standard order and units so everyone reads the same measurements.
Which dimension order is most common?
For rectangular items, the typical order is Length × Width × Height (L × W × H). In some contexts, Height may be listed first, or diameter is used for cylindrical items. Always follow the industry or internal template you’re using.
Length, width, and height is the most common order, but always follow your template.
Should units be included with every measurement?
Yes. Include units with every value to prevent misinterpretation, especially when documents are shared across teams or vendors. If space is tight, ensure the unit symbol is clearly visible after the number.
Always include units with every measurement to avoid confusion.
How do you format cylindrical dimensions?
Format cylindrical items with diameter first (Ø) and then length, e.g., Ø 12 cm × 30 cm, using a consistent notation across all references.
Use diameter first, then length, and stay consistent.
What are common mistakes to avoid?
Common mistakes include mixing unit systems, inconsistent dimension order, and omitting units. Use templates and a style guide to prevent these issues.
Avoid mixing units and orders; use templates and a style guide.
How should tolerances be handled?
Tolerances should be included when they impact function or assembly. Attach tolerances to the corresponding dimension and ensure all relevant teams are aware of them.
Include tolerances where they affect fit, and link them to the right dimension.
Can I use multiple formats in the same project?
Prefer a single, consistent format per project. If multiple formats are unavoidable, clearly map each format to its domain and document where each one applies.
Stick to one format per project, or clearly map exceptions.
Watch Video
Main Points
- Choose a standard format and stick with it.
- Document units clearly and consistently.
- Use templates to speed up entry.
- Verify dimensions against the source.
