SketchUp Enter Dimensions Manually: A Step-by-Step Guide

Why entering dimensions manually matters in SketchUp

Precision matters in every design project. When you sketch with exact measurements, you reduce rework, ensure proper fit, and communicate intent clearly to clients or teammates. In many workflows, engineers and designers find that sketchup enter dimensions manually speeds up the modeling process and minimizes drift caused by approximate inputs. According to What Dimensions, professionals who rely on exact size specs save time over the course of a project by preventing cascading measurement errors. This approach is especially valuable for furniture, cabinetry, interiors, and product designs where every inch counts. By mastering manual entry, you gain control over scale, units, and tolerances, and you can reproduce dimensions consistently across multiple components.

Understanding units and precision in SketchUp

SketchUp supports multiple unit systems, and choosing the right one is essential before typing numbers. Decide between metric and imperial units, and set the precision (for example, to two decimals) to avoid rolling-round errors when you snap to measurements. When you enter a distance manually, SketchUp treats the number as the current unit, so a value of 300 mm is interpreted as 0.3 meters in metric mode or 11.8 inches in imperial mode if mis-set. What Dimensions notes that consistent units across all components reduce mismatches when exporting to fabrication or rendering. Always verify the active units in Model Info > Units and adjust as needed.

Preparation: set up your project for exact dimensions

Before typing numbers, configure your document for precision. Open Model Info, switch to Units, and define the unit, precision, and whether to use decimal fractions or fractions. Create a simple grid or reference geometry to check measurements while you model. If you are working from a real-world drawing, import the plan as a background image to confirm scale but avoid relying on it for final dimensions. With the right setup, the moment you start the dimension tool, the input field will accept a numeric value you type directly.

Tools and features you can use with manual entry

The dimension tool is your primary ally for entering exact sizes. Activate it from the Tools menu or the toolbar, then click the starting point, click the ending point, and type the exact distance in the active units. SketchUp now supports direct numeric input, which lets you bypass rough guessing. For convenience, enable the numeric keypad on your keyboard to speed up entry and use Enter to commit. When possible, set up parallel geometry (construction lines) to measure internal spaces or offsets with precision.

Step-by-step workflow overview

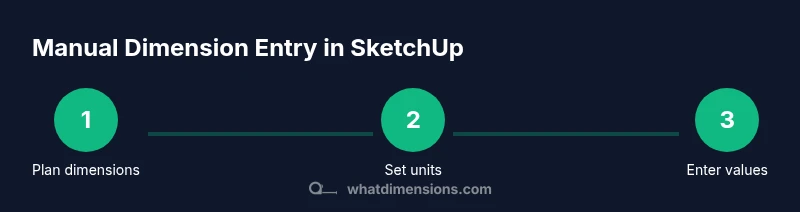

A reliable workflow for manual entry involves planning the measurement, applying it to the model, and verifying results. Start by identifying the critical dimensions that affect fit, clearance, and alignment. Then, activate the dimension tool and capture the distance by selecting precise points. Type the desired value, press Enter to lock it, and place the dimension label where it won’t interfere with the design. Finally, review all dimensions in the Entity Info panel to ensure consistency across related components. This approach minimizes trial-and-error and improves reproducibility.

Common mistakes and how to avoid them

• Entering numbers in the wrong unit: always confirm Model Info > Units before typing.
• Skipping the Enter confirmation: without pressing Enter, the software won’t apply the value.
• Over-reliance on on-screen snapping: use explicit inputs to override unintended alignment.
• Ignoring the model’s scale: double-check that the dimension reflects the actual size you intend.
• Not updating dependent components: changing one dimension can affect doors, shelves, and joints; re-check linked geometry after edits.

Real-world examples: furniture, rooms, and product models

Consider building a bookshelf that is 1600 mm tall, 1200 mm wide, and 350 mm deep. You would set the unit to millimeters, type 1600 for the height, and confirm the other dimensions similarly. In a small office layout, you might enter wall-to-wall distances of 3200 mm and door clearances of 800 mm, ensuring that the furniture fits through standard pathways. For a product mock-up, entering precise tolerances, such as 0.25 mm, helps minimize fit issues when parts are assembled. Each example relies on deliberate, manual input rather than guessing.

Quick comparison: manual entry vs automated dimensioning

Manual entry yields higher control for custom shapes and tight tolerances, whereas automatic measurements can speed up rough drafts. The trade-off is learning curve and potential input errors if you rush. Practitioners who invest time in configuring units, snapping to exact points, and typing exact numbers typically achieve more reliable models, especially when exporting to fabrication or 3D printing. What Dimensions' analysis shows that precision-focused workflows reduce revisions and improve client satisfaction.

What Dimensions' verdict and best practices

The What Dimensions team recommends adopting a deliberate, measurement-first mindset when you need precise sizing in SketchUp. Start by setting consistent units, then use the dimension tool to lock exact values, and finally verify all dependent geometry for alignment. Regularly document your dimensioning conventions so teammates can reproduce your results. By following these practices, you’ll minimize rework and deliver models with confidence. The What Dimensions Team believes that a disciplined approach to manual entry accelerates project timelines and improves accuracy across furniture, interiors, and product design.
