How to Change Dimensions in SketchUp
Master changing dimensions in SketchUp with precise steps, unit settings, measurement tools, verification tips, and common pitfalls. This educational guide helps designers, homeowners, and students ensure accurate 3D models.
You can change dimensions in SketchUp by editing the Measurements box as you move or scale components, using the Tape Measure tool for precision, and constraining axes to maintain accuracy. This guide covers exact steps, unit settings, and best practices to ensure consistent dimensions throughout your model, whether you’re drafting furniture, rooms, or architectural elements.
Why precise dimensions matter in SketchUp
In any design workflow—from furniture prototyping to architectural layout—precise dimensions ensure that parts fit together, materials are sized correctly, and final installations match expectations. SketchUp provides a suite of tools to set, verify, and constrain dimensions as you build. According to What Dimensions, precision reduces rework, improves material lists, and helps ensure your designs translate accurately to reality. Start with a clear plan for unit settings, tolerances, and where measurements will drive decisions (for example cabinet widths, door clearances, and room layouts). When you begin a project with exact dimensions in mind, you establish a solid foundation that supports downstream tasks like rendering, documentation, and fabrication.
Understanding units and tolerances in SketchUp
SketchUp handles unit systems at the model level, so you’ll want to decide early whether you work in millimeters, centimeters, inches, or another standard. This choice affects how measurements are entered, displayed, and calculated. Access Model Info > Units to pick your unit type and define precision (how many decimal places appear). Keeping consistent units across the project reduces drift when you inherit models or import components. Remember to verify that dependent dimensions update correctly when you resize geometry, and consider enabling a tolerance backup to catch rounding discrepancies.
Core tools for changing dimensions
The primary tools for adjusting size in SketchUp are the Move, Push/Pull, and Tape Measure tools, complemented by the Measurements box for exact input. The Move tool helps reposition vertices, edges, or faces; Push/Pull extrudes or hollows faces to change thickness or depth; Tape Measure creates references that you can snap to when setting new dimensions. The Measurements box (aka the VCB) accepts exact numeric entries as you perform a command, ensuring accurate results. When used together, these tools let you resize objects with confidence while preserving important alignments and relationships in your model.
How the Measurements box drives precision
Typing a precise value into the Measurements box immediately updates the active operation, whether you’re moving an edge, scaling a face, or adjusting a dimension with Push/Pull. This direct input reduces trial-and-error and helps you maintain strict tolerances. After entering a value, press Enter to apply it. If you change your mind, you can press Esc to cancel the current action. Always double-check the unit and decimal precision before committing, as small rounding differences can compound over a complex model.
Step-by-step workflow (narrative example)
Consider resizing a bookshelf to fit a designated wall space. Start by selecting the vertical edge you want to alter. Open the Measurements box and type your new height, then press Enter. The object updates, and you can immediately verify the new dimension using the Tape Measure from the base to the top. If you also need to adjust the depth, repeat the process with the corresponding edge or face, ensuring you constrain changes along the intended axis. This approach keeps the original plan intact while achieving the target fit.
Verifying dimensions across the model
After changing a key dimension, it’s essential to verify that related parts still align. Use the Tape Measure to cross-check adjacent clearances, door openings, and cabinet depths. You can create temporary guides with the Tape Measure to visualize relationships between components. If something looks off, undo the action and reassess your references. Verifying dimensions in multiple views (Top, Front, Right) helps catch issues that aren’t obvious in a single perspective.
Advanced techniques: constraints, groups, and components
For repeatable designs, place objects in Groups or Components and resize them with a consistent constraint strategy. Editing a component updates all instances, which is ideal for objects that must stay identical across a model. Use the Measurements box to set a target dimension, and then use Move or Push/Pull to adjust. When working with multiple parts, consider locking references with construction guides built from the Tape Measure to keep dimensions synchronized. If you need independent instances, break links or convert instances to Unique Components before editing.
Real-world example: resizing a cabinet to fit a room
A common task is resizing a cabinet to fit a specific wall length. Start by measuring the available width with the Tape Measure. Change the cabinet’s width by selecting the left/right edges and entering the new value in the Measurements box. Re-check the depth and height to ensure doors align with the surrounding space. Finally, verify that the cabinet’s interior shelves and door clearances still function with the new external dimensions.
Common mistakes and how to avoid them
- Don’t mix units mid-project; convert all components to the chosen unit system.
- Avoid resizing while inside a nested group with locked references; flatten or edit the group first if needed.
- Always verify both external and internal dimensions after resizing to prevent fits and clearances from failing in real-world applications.
- Use temporary guides to compare dimensions across multiple features, reducing the chances of drift.
Tools & Materials
- SketchUp installed (any edition)(Prefer the latest update for full measurement tooling and stability.)
- Computer with adequate specs(Ensure sufficient RAM for large models.)
- Mouse or precision pointing device(Precision helps when selecting edges and faces.)
- Unit settings access (Model Info > Units)(Decide on metric or imperial before editing.)
- Optional: physical ruler or tape measure for real-world references(Useful for aligning model dimensions with real measurements.)

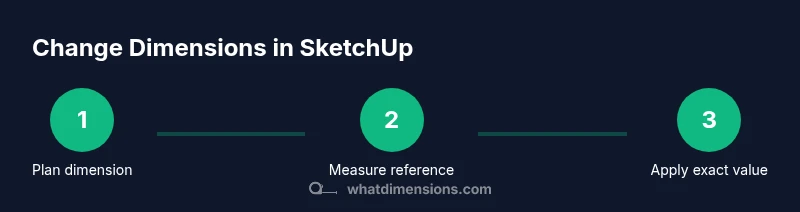

Steps
Estimated time: 20-40 minutes
- 1
Identify the target dimension
Select the edge or face whose size you want to change. Take a moment to visualize the new dimension and how it affects adjacent geometry. This step sets the scope for the entire adjustment.
Tip: Use Select > Right-click to quickly isolate the component or group containing the target edge. - 2
Activate the measurement workflow
Choose the Move or Push/Pull tool, then click the element you intend to resize. The Measurements box will show the current dimension as you prepare to input a new value.
Tip: If the dimension you need isn’t obvious, use the Tape Measure to establish a clear reference distance. - 3
Enter the exact value
Type the new dimension into the Measurements box and press Enter to apply. The geometry updates immediately, reflecting the precise size you specified.
Tip: Double-check units and decimals before committing to avoid drift. - 4
Verify with auxiliary references
Use Tape Measure or temporary guides to confirm the new dimension matches your target. Adjust if necessary.
Tip: Create guides from edges to maintain consistent spacing across the model. - 5
Check dependent geometry
Review adjacent components or features that rely on the changed dimension to ensure no overlaps or interference.
Tip: Walk around the model in multiple views to spot hidden clashes. - 6
Save and test in context
Save your changes and re-open in a real-world context (e.g., room layout) to confirm the fit and aesthetics.
Tip: Prefer a dedicated version or backup before applying major changes.
Quick Answers
Can I resize a component without changing all its instances?
Yes, by editing the component as a unique instance or by using a separate component for the item. If you edit a shared component, all instances update. To resize one instance independently, make it a unique component first.
Yes, you can resize one instance by making it unique or editing a separate component, otherwise all instances change together.
How do I switch between metric and imperial units quickly?
Go to Model Info > Units and choose your unit type. You can adjust the precision and display format to fit your project needs.
Change units in Model Info > Units and set the precision to your preference.
What’s the best way to ensure a new dimension is accurate?
Use the Measurements box to enter exact values and verify with the Tape Measure against known references. Cross-check with multiple views to confirm consistency.
Enter exact values and verify with Tape Measure across views.
Do I need to explode groups to resize internal components?
If the target geometry is inside a group, you may need to edit the group or component directly, or temporarily explode to access the inner edges. Consider creating a copy first.
Edit inside the group or explode temporarily to access inner geometry, then re-group.
How can I document dimensions for fabrication?
Record precise values in the model’s dimensions and create temporary dimensions or guides for reference. You can also annotate the model for fabrication notes.
Keep a written reference of dimensions and use guides for fabrication notes.
Is there a shortcut to constrain movement along an axis?
Constrain movement by using inference guides—select the edge or face, then move you’ll see a colored guide indicating alignment. Use permanent guides for repeatable setups.
Use inference guides to constrain direction during move operations.
Watch Video
Main Points
- Set correct units before editing
- Enter exact values in Measurements for precision
- Verify changes with Tape Measure across views
- Check dependent parts after resizing
- Save versions to compare before/after outcomes
