Door Frame Dimensions Standard: A Practical Guide for 2026

Why door frame dimensions standard matter

Precision in door frame dimensions is foundational to a successful remodel or new-build. When frames are sized to standard heights and widths, you minimize installation surprises, ensure compatibility with stock prehung doors, and simplify trim, casing, and hardware selection. What Dimensions has found that residential projects benefit most when the framing aligns with widely accepted norms, because standardization reduces custom carpentry time and helps manufacturers deliver consistent products. In practical terms, a standard frame height of 80 inches, plus common widths of 24–32 inches, ensures that most interior doors drop into place with minimal shimming and aesthetic alignment. This standardization also helps carpenters plan for flooring, baseboard height, and ceiling clearances before framing begins.

Regional variations and why they exist

Size expectations for door frames vary by region due to architectural norms, building codes, and available material stock. In the US, interior doors most often follow imperial measurements (inches and feet), with 80-inch height and 24–32 inch widths forming the backbone of typical residential openings. Outside North America, metric sizing prevails, and you will encounter a range of heights and widths tied to local standards and remodeling practices. Regardless of region, the guiding principle remains: match the frame to the door slab, ensure adequate clearance for operation, and choose a jamb thickness compatible with the wall structure and hardware.

How to read a door frame specification like a pro

Understanding a door frame spec starts with three core numbers: height, width, and jamb thickness. The height is measured from the finished floor to the top of the frame opening, the width is taken across the opening, and the jamb thickness reflects the depth of the frame where the door sits. When you read a spec sheet, also note the swing direction (left- or right-hand), whether the profile assumes a standard single or double door, and whether the measurement refers to a nominal width (e.g., 32 inches) or the actual frame width. Cross-check these values with your actual opening to catch discrepancies before ordering.

Common sizes you’ll encounter in practice

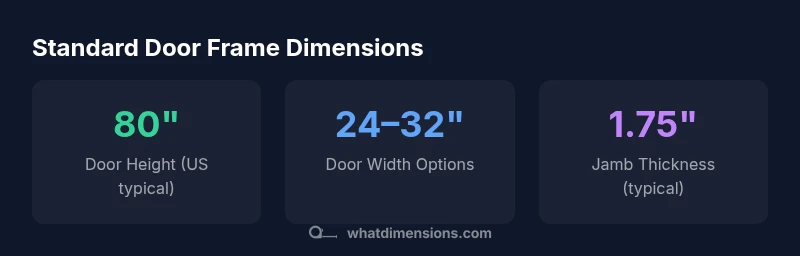

In the United States, interior door frames most frequently come in these sizes: 24 inches, 28 inches, 30 inches, and 32 inches wide, with a typical height of 80 inches. This set covers most bedrooms, closets, and interior passageways. If you need wider openings for accessibility, 36 inches is also common in new construction, though it may require custom framing or a pocket door alternative. For exterior doors, sizes shift toward sturdier jambs and taller heights, often following different regional standards. Always verify measurements on-site before purchasing doors or hardware to avoid mismatches with prehung options, trim, and threshold transitions.

How to measure an existing doorway accurately

Begin by measuring the finished opening at three points: top, middle, and bottom. Use the smallest width measurement to determine the door width, then measure the opening height at the center to avoid sloped floors causing misreads. Record the jamb depth by removing a portion of trim and measuring from the finished wall to the face of the door stop. Finally, check for square corners (the diagonal should be within a small tolerance of the opening’s other diagonal). Document any variations caused by flooring, baseboards, or uneven walls, because these details influence whether you can reuse an existing door or need a custom solution.

Practical implications for remodeling and design

Choosing standard door frame dimensions streamlines ordering and installation, reduces waste, and simplifies future replacements. If your walls are not square, you may need shims, adjustable hinges, or a slightly larger doorway opening. When space is tight, consider door configurations such as bi-fold, sliding, or pocket doors that preserve floor space and maintain a clean aesthetic. In new builds, prehung doors installed in the rough opening save labor and ensure consistent reveals around the frame. Always plan for threshold heights, carpeting, and floor finishes, as these factors influence the final fit and appearance.

When to consider non-standard or custom door frames

If you encounter an oddly shaped room, an historic doorway, or an entry with non-traditional wall thickness, standard frames may not fit without modification. In such cases, order a custom frame or have a carpenter modify the rough opening to accommodate a standard door. Custom frames can also accommodate unusual swing directions or specialty hardware. Before committing, obtain precise measurements, confirm the finished floor level, and compare multiple suppliers’ quotes to ensure the final frame aligns with your door slab, hardware, and trim package.

Tools and resources for exact sizing

Keep a steel tape measure, a carpenter’s square, and a level nearby when sizing. A laser distance measurer can speed up long measurements and reduce human error. Consulting manufacturer specs for the specific door slab and prehung unit you intend to use will also help prevent compatibility gaps. Finally, use local building codes and product guides from credible sources to confirm minimum clearances for hardware, moisture exposure areas, and fire-rated openings where applicable.

Quick-start checklist for homeowners and designers

• Confirm door height in finished space (typically 80 inches US).
• Verify door width options available from stock (24–32 inches).
• Check jamb thickness compatibility with your framing and hardware.
• Measure multiple points and account for level floors and wall irregularities.
• Decide between prehung or site-built frames based on budget and timeline.
• Plan for trim, baseboards, and thresholds to ensure clean reveals.
• Document measurements for future replacements or renovations.
