Dimensions Washer and Dryer: A Practical Sizing Guide

The Importance of Accurate Dimensions for Laundry Spaces

According to What Dimensions, planning starts with accurate measurements of the dimensions washer and dryer. This isn't just about fit; it's about door swing, service access, ventilation, and future flexibility. When you know exact widths, heights, and depths, you can design a laundry area that feels balanced and easy to use, whether you choose side-by-side configurations or stacking for narrow spaces. The What Dimensions team emphasizes that a small miscalculation can cascade into misfitting doors, obstructed outlets, or cabinets that need rework. Start by measuring the available width across the space, the total height from floor to ceiling, and the maximum depth you can accommodate. Then compare these numbers to the unit specs you’re considering, filtering by installation clearances and clearance for doors and drawers. With precise size references, you can plan for plumbing and electrical hookups, venting routes, and even the potential need for a shallow utility area or adjacent storage. A data-driven approach reduces surprises and supports confident shopping decisions.

Standard Footprints: Side-by-Side vs Stacked Configurations

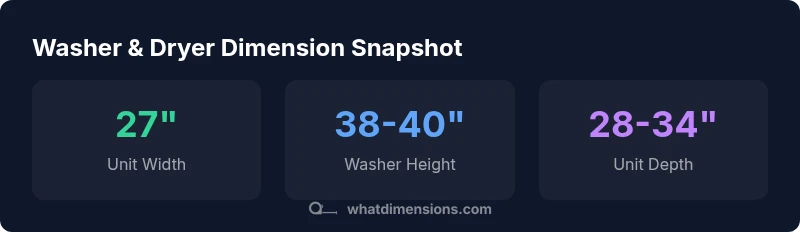

Most residential washers and dryers come in roughly standard unit sizes, and two common layouts dominate: side-by-side and stacked. For individual units, expect widths near 27 inches, though some compact models may be slightly narrower. When you place two units side by side, the total width typically falls in the 54–60 inch range, with a couple of inches of clearance between units and adjacent walls. Heights stack up to about 76–80 inches for side-by-side adherence; depths stay roughly in the 28–34 inch range per unit. If you opt to stack the machines, the combined height increases to approximately 76–84 inches, while the width remains the same as a single unit (about 27 inches). The depth is still governed by each appliance, usually in the 28–34 inch band, which means configured spaces in linen closets or laundry alcoves must accommodate doors or panels. Regardless of layout, allow 1–2 inches of side clearance for airflow and accessibility.

How to Measure Your Space: A Practical Guide

1. Start with a simple tracing of the footprint on the floor, marking where the units will sit and where doors will swing. 2) Measure the width: capture the narrowest point between walls, cabinets, or plumbing. 3) Measure the depth: include any recessed plinths or baseboards that could reduce usable depth. 4) Measure the height: account for ceiling obstructions, shelving, and any overhead cabinets. 5) Verify door and lid clearance: ensure there is space for doors to open fully without contacting walls or appliances. 6) Check utility access: map the location of water supply valves, drain pans, gas lines (if applicable), and electrical outlets. 7) Create an installation window: add a few inches of buffer for adjustments during installation. Finally, compare results against manufacturer specifications and local building codes for a seamless install.

Planning for Door Swing and Access

Doors and lids dramatically influence space planning. A front-load washer or a traditional top-load lid requires clear space in front for full operation. Many builders recommend at least 18 inches of clearance in front of doors or lids, with additional space if you plan to stack units. If you’re placing the machines behind a cabinet front, ensure the cabinet doors can open without collision. For laundry closets, confirm there’s a minimum allowance for ventilation grills or louvered doors to prevent moisture buildup. When space is tight, consider models with reversible doors or shallower depths, and verify whether the installation area supports venting routes without kinks or bends that could affect performance.

Utility Needs: Venting, Electrical, and Plumbing

Venting requirements differ by configuration. Gas dryers require appropriate venting and a gas line, while electric dryers use a 240V circuit. In most homes, a standard electric washer uses 120V. Ensure electrical circuits can handle simultaneous operation, and plan dedicated circuits if necessary. Plumbing connections should include shut-off valves and accessible drainage for condensate and overflow risks. If you’re moving an existing setup, measure pipe diameters and drainage orientations to avoid last-minute substitutions. Additionally, consider a drip pan under the washer to protect flooring, especially in basements or upper-level laundry nooks where leaks can cause more damage than expected.

Real-World Scenarios: From Studio Apartments to Family Laundry Rooms

Studio apartments often maximize space with compact or stackable configurations. Narrow widths around 24–27 inches and a compact depth allow placement in hallways, closets, or alcoves. Medium-size laundry rooms benefit from standard 27-inch-wide units arranged side by side with a small aisle. Larger family spaces can accommodate stacked options in a single-wall layout to free up room for shelving, hampers, and folding surfaces. In every scenario, the goal is to maintain easy access to faucets, outlets, and service panels while keeping doors unobstructed. When in doubt, lean on a measured plan and compare it to the manufacturer’s official specifications and clearance recommendations. This reduces surprises during delivery and installation.

Practical Checklist for Your Washer and Dryer Setup

• Define your layout (side-by-side vs stacked) and draft a simple floor plan.
• Measure width, height, and depth with doors closed and open.
• Verify clearance: 1–2 inches on sides, 1–2 inches behind, plus door swing space.
• Confirm ventilation requirements and outlet placements before purchase.
• Check that plumbing and gas lines (if used) are accessible and compliant.
• Review manufacturer specs and local codes for installation requirements.
