Best Way to Dimension a Floor Plan: A Complete Guide

Why Accurate Floor Plan Dimensions Matter

Accurate floor plan dimensions are the foundation of every successful space project. Whether you’re planning a furniture layout, renovating a kitchen, or preparing permit drawings, precise measurements prevent costly misfits and last-minute changes. The What Dimensions team emphasizes that reliable dimensions reduce ordering errors, ensure accurate clearance for doors and appliances, and streamline communication with contractors. When you start with careful, repeatable measurement practices, you gain confidence that your plan will reflect actual space, not guesswork. In practice, accurate measurements translate into better product choices, safer circulation, and a smoother design review process. You’ll avoid under- or over-sizing rooms, misplacing walls, or misjudging door swings that disrupt furniture placement. The result is a plan you can share with confidence, and that vendors, builders, and clients can trust. This block will explain why precision matters and how to build a measurement routine you can reuse across projects, from student dorm rooms to full-scale renovations. Consistency is the key: use the same tools, units, and reference points for every measurement, so your floor plan becomes a reliable blueprint rather than a rough sketch.

According to What Dimensions, achieving precision begins with a clear measurement protocol and a scalable approach that you can apply to any room or building type.

Definitions and Scope: What You’re Measuring

A floor plan is more than a sketch of walls. It captures the footprint, door swings, window openings, and fixed features that affect layout and circulation. The core measurements include exterior wall lengths, interior partitions, closet depths, column positions, and fixed installations such as cabinetry or plumbing stacks. Units matter: decide whether you’ll work in metric or imperial first, and keep that choice consistent throughout the project. Scale is the bridge between real size and your drawing; common Home/Residential scales include 1:50 or 1/4"=1'. You should also define what you consider “wall thickness” in your plan. Some professionals separate wall thickness from the room dimensions to reflect true usable space. In the context of design and renovation, it’s essential to document large features such as built-ins, fireplaces, and structural elements that may influence layout and furniture selection. This clarity helps designers, contractors, and homeowners communicate effectively without guesswork. What dimensions you capture should align with your project scope—whether you’re planning a simple room reorganization or a complete space overhaul.

A Proven Framework: The Best Way to Dimension a Floor Plan

A reliable floor plan starts with a framework you can repeat. Begin by establishing a scale and reference points, then methodically capture exterior and interior dimensions. Step-by-step: 1) Set a consistent scale (for example 1:50) and define reference lines that won’t shift during measurements. 2) Measure exterior walls in a fixed order, starting at a corner and proceeding clockwise to minimize missed distances. 3) Record interior partitions, doorways, and major fixtures, noting clearances around openings and appliances. 4) Check corners with diagonal measurements to verify right angles and spot discrepancies caused by stubborn wall irregularities. 5) Label every measurement with a descriptive tag (e.g., “Living Room Outer Wall” or “Kitchen Cabinet Front”). 6) Transfer to a scaled drawing, using consistent line weights for walls and fixtures. 7) Cross-check totals by calculating area or perimeter with a secondary method to catch outliers.

What Dimensions Team recommends a disciplined measurement workflow: document each distance, stay consistent with units, and store the measurements in a single, accessible format so future edits are straightforward. The goal is a plan you can trust for furnishing, remodeling, and permitting without repeated re-measurement.

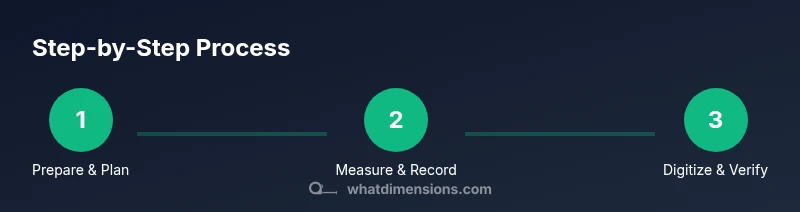

tip – step-by-step:

Tools and Techniques for Precision

Precision comes from the right tools and disciplined technique. Start with a flexible measuring tape that can cover long walls without sagging, plus a laser distance measurer for quick, high-accuracy readings in large rooms. Grid or graph paper helps you maintain scale, while a pencil, eraser, and a sharp ruler support clean, repeatable draft work. Digital options—like floor plan apps or CAD software—can speed data entry and future edits, but you should validate app-generated numbers against hand measurements. Adopt a two-pass approach: the first pass records basic dimensions; the second pass verifies every distance, particularly around corners, door swings, and alcoves. For openings, measure from frame faces rather than wall centers to avoid misalignment. Finally, document your measurement conditions (e.g., room lighting, floor level, and any obstructions) to ensure you reproduce accurate results in future sessions.

Handling Irregular Shapes and Obstacles

Many rooms aren’t perfect rectangles. Irregular shapes, alcoves, bay windows, or curved walls require a flexible approach. Break complex footprints into simple rectangles or triangles, measure main axes, and then add subtractive dimensions for protrusions. Use diagonals to confirm square corners in L-shaped spaces and confirm furniture clearance by testing door swing arcs. For curved walls, approximate using multiple short chords or measure along the curve with a flexible tape, then convert to a linear length for your plan. Always annotate irregular features with notes about the approximation method and any assumptions you made about tolerances. This practice reduces misinterpretation when the plan is handed to others and ensures your final drawing accommodates real-world shapes.

Verification, Redundancy, and Documentation

Verification is more than a single pass—it’s a system. After collecting measurements, recompute key dimensions from multiple reference points to confirm consistency. Compare total wall lengths against a rough perimeter estimate; if significant disparities appear, remeasure the suspect sections. Document every measurement with a clear label and a timestamp; store the notes alongside the drawing so future remodels can reference them. Consider creating a simple checklist: confirm door widths, verify window placement, check ceiling-to-floor heights for vertical space planning, and review with another person to catch oversights. Finally, create a master file that includes both the scaled drawing and the measurement catalog. A single, organized source of truth minimizes confusion and speeds future revisions.

From Paper to Digital: Outputting a Scaled Floor Plan

Transformation from a hand-drawn sketch to a digital floor plan is a common workflow. Start by scanning the hand-drawn plan at high resolution, then trace the drawing with vector tools in CAD or floor plan software. Maintain your chosen scale during digitization, and use consistent wall thickness conventions. When laying out rooms, keep doors and windows on separate layers to simplify edits. For accuracy, import your recorded measurements as attributes or notes attached to corresponding geometry. If you’re short on time, use a dedicated floor plan app that allows you to sketch, import measurements, and export to common formats (PDF, PNG, or DXF). Always perform a final check by re-measuring a sample area on-site and cross-referencing with the digital plan. Your ability to reuse measurements across software platforms is a major time-saver for ongoing interior design work.

Common Pitfalls and Quick Fixes

Even seasoned estimators encounter missteps. Rounding distances too early can accumulate errors; always capture exact figures and only round in the final plan. Assume wall thickness without documentation can skew usable space; specify whether plans include or exclude wall thickness. Ignoring door swing clearance can lead to furniture conflicts—measure from fixed frame faces and record swing arcs. Failing to document measurement conditions (like lighting or level changes) can complicate future re-measurements. A quick fix is a two-pass verification: first collect raw measurements, then re-check critical sections with a different method or instrument. Finally, keep your final plan organized with clear labels and a legend that describes units, scale, and any approximations. The combination of careful measurement and transparent documentation minimizes surprises during implementation.
