Where to Put Dimensions in Floor Plans: Quick Guide
Learn where to place dimensions on floor plans for clear communication and accurate space planning. Exterior wall lengths go on the outside edges, interior room sizes inside rooms, and door widths with swings shown near openings. Use a consistent scale and units to improve accuracy and collaboration.
Exterior wall lengths should appear on the outside edges, interior room sizes inside each room, and door widths with swing clearances near openings. Include circulation clearances outside rooms and keep a consistent scale and units to improve readability and collaboration.
Why placement matters
Understanding where to put dimensions in floor plan is essential for clear communication, accurate construction guidance, and smooth budgeting. According to What Dimensions, precise dimension placement reduces rework and misinterpretations, helping designers, homeowners, and contractors stay aligned from the first draft. A well-dimensioned plan conveys how spaces relate, where furniture will fit, and how traffic will flow between rooms. When someone asks where to put dimensions in floor plan, the answer hinges on readability, consistency, and collaboration. Use a standardized approach so readers can quickly locate exterior lengths, interior room sizes, and openings without wading through clutter. The ultimate goal is a plan that reads at a glance, with minimal interpretation needed to extract critical measurements.
Establishing a scale and units
Before you mark any numbers, pick a unit system and a readable scale. Most residential floor plans use feet and inches or metric equivalents, and a clear scale such as 1/4 inch equals 1 foot or 1:50 for digital drawings. Document the chosen scale in the title block and ensure every measurement on the drawing references that same scale. Consistency is essential because mixed scales confuse reviewers and lead to errors in material quantities and layouts. If you work with clients from different regions, provide both imperial and metric references where feasible to avoid ambiguity. What Dimensions emphasizes that a shared scale is the foundation of reliable dimensions.
Exterior vs interior dimensions: what goes where
Exterior dimensions track the outer boundaries of the building envelope and should be placed outside the walls. This helps architects and builders verify overall size without confusing interior layouts with exterior lines. Interior dimensions describe the size of rooms, corridors, and enclosed spaces and are typically placed inside the corresponding areas. For rooms with irregular shapes, show multiple interior dimensions along the longer wall or along the most legible axis. Keeping exterior and interior measurements visually distinct reduces cross-over errors and speeds up interpretation.
Annotating doors, windows, and openings
Door widths and swing directions are essential but easy to overlook. Label door widths near the doorway line and draw a small arc to indicate the swing. Place window widths and sill heights adjacent to the window outlines, but avoid clutter by grouping related openings along a single wall where possible. Consistent placement of opening dimensions helps installers plan hardware, trim, and finish details without guessing. If a dimension impacts furniture placement, consider note placement near that area for clarity.
Circulation and clearance dimensions
Clearances around furniture, fixtures, and pathways are critical for comfortable movement. Typical residential guidance calls for minimum corridor widths and functional circle clearances that accommodate typical furniture. Clearly mark these with dimension lines outside the main space, and use parallel leader lines to avoid overlapping with walls or fixtures. For kitchens, bathrooms, or entryways, highlight the required turning radii and working clearances to ensure doors, appliances, and cabinetry fit properly.
Notation and labeling conventions
Use a consistent font, line weight, and leader style for all dimensions. Prefer plain leader lines and avoid placing dimension text over hatch patterns or solid fills. When a room has multiple measurements, group the most important ones near the room label and provide secondary measurements along walls where space allows. Always repeat key totals in a small, unobtrusive area of the plan to help stakeholders validate the overall size quickly.
Real-world examples: reading a sample plan

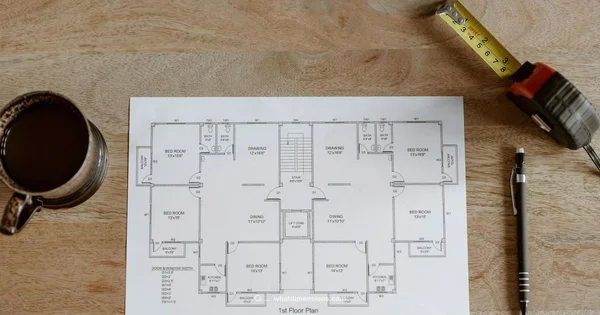

Look at a typical residential layout: exterior wall lengths appear on the outer boundary, room dimensions sit inside rooms along the longer walls, and door widths are annotated near door openings with swing. Compare two plans side by side and note how each uses consistent units, avoids line crowding, and keeps dimension text legible. Practicing with real samples helps develop an eye for what works and what creates confusion.
Digital vs paper floor plans: transferring measurements
Whether drafting on paper or in software, maintain the same dimensioning rules. Digital tools offer optional layers for dimensions, which can be hidden or shown for different audiences. When exporting, ensure the scale is retained and that vector lines remain crisp for accurate plotting by builders. If you need to share a printed version, verify that the printed scale matches the intended drawing size to prevent misreadings.
Quick consistency checks before sharing
Do a final pass to verify that exterior and interior dimensions align with the overall footprint, slab edges, and door swings. Check that all rooms have labeled dimensions, and confirm that the dimension text is oriented for easy reading from the plan’s main corridor. A simple checklist can save time and reduce questions during construction bids.
Tools & Materials
- Architect’s scale ruler (e.g., 1:50 or 1:100)(Choose a scale compatible with your drawing size and unit system.)
- HB or 2H pencil(Keep lines clean; avoid heavy markings that bleed into measurements.)
- Eraser(Use for clean final lines after dimensioning.)
- Drafting paper or grid paper(Provides a stable surface and helps align measurements.)
- Tape or light adhesive(Optional for securing tracing or notes during drafting.)

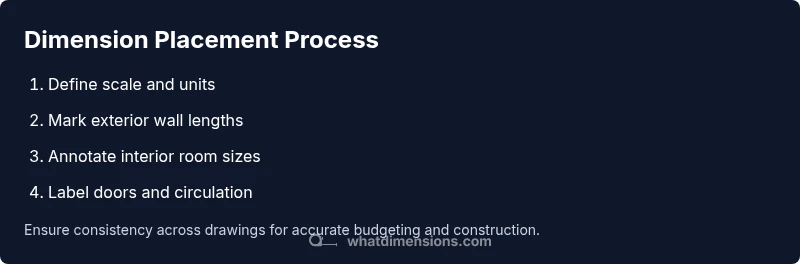

Steps
Estimated time: 30-60 minutes
- 1
Set the plan scale and units
Choose a consistent unit system and a readable scale. Document the scale in the title block and ensure every measurement references that scale. This step prevents later confusion and misinterpretation.
Tip: Double-check that all measurements align with the same scale before proceeding. - 2
Mark exterior wall lengths
Draw exterior walls to scale and label the overall length along the outside edge. Place measurement arrows outside the wall line to avoid cluttering the interior space.
Tip: Keep exterior numbers large and readable from a distance. - 3
Annotate interior room sizes
Within each room, add width and length measurements along the corresponding walls. Prefer labeling along the longer wall for readability and avoid overlapping with furniture drawings.
Tip: Label the primary dimensions first, then add secondary ones if space allows. - 4
Label doors, widths, and swings
Show door width near the doorway line and draw an arc to indicate swing direction. Place measurements where they won’t collide with wall lines or furniture layouts.
Tip: Ensure swing arcs don’t cross dimension leaders. - 5
Add circulation and clearance dimensions
Mark required clearances in high-traffic areas like kitchens and hallways. Use consistent spacing (for example, 36 in or 90 cm) and place dimensions just outside the space they affect.
Tip: Avoid crowding dimension lines in busy zones. - 6
Review and cross-check
Cross-check all measurements against the overall footprint and adjacent drawings. Confirm unit consistency and total area calculations. This ensures the plan reads correctly for builders and clients.
Tip: Run a quick tally to catch missing or duplicate numbers.
Quick Answers
What should be included in floor plan dimensions?
Exterior wall lengths, interior room dimensions, door widths with swings, and circulation clearances. Include window openings if relevant to fit and lighting considerations.
Exterior lengths, interior room sizes, door widths with swings, and circulation clearances.
Why are dimension leaders important?
Dimension leaders link numbers to specific plan segments, improving readability and reducing misinterpretation for builders and clients.
Leaders connect numbers to the exact lines on the plan, making it easier to read.
Should I use metric or imperial units?
Choose a unit system and apply it consistently across the entire plan. If you work with international clients, consider providing both metric and imperial references.
Pick one system and stick with it; you can add the other if needed for clarity.
Do I need to show window dimensions on floor plans?
Window widths and sill heights can help with fitting treatments and furniture placement. Include them if they influence the layout.
Including window sizes helps with finishing and furniture planning.
How do I ensure accuracy in a printed plan?
Verify measurements against a physical measurement or a calibrated digital prototype, and ensure the print scale matches the intended size.
Double-check measurements with a real measurement or a verified digital scale.
Is total area necessary on floor plans?
Total area can be useful for budgeting but is optional. Focus on accurate room-by-room dimensions for layout clarity.
Total area is helpful but not required; prioritize per-room measurements for layout clarity.
Watch Video
Main Points
- Define a single scale and unit system
- Place exterior lengths on the exterior edge
- Label interior room sizes inside rooms
- Annotate doors and their swings clearly
- Verify consistency across all drawings before sharing
