Remove Decimals in AutoCAD Dimensions: A Practical Guide
Learn how to remove decimals from AutoCAD dimensions, align precision with project standards, and apply consistent formatting across drawings using dimension styles and templates. What Dimensions explains best practices for clean, readable schematics.
Goal: remove decimals from AutoCAD dimensions to meet project standards. You’ll adjust the dimension style to hide decimal places, set a global precision, and apply the change consistently across the drawing. According to What Dimensions, the core step is selecting the correct dimension style and updating its primary precision to match your workflow.
Why Decimal Precision Matters in AutoCAD
How you handle decimals in AutoCAD dimensions can make or break the clarity of a drawing. When a project requires whole-number notations or a specific rounding convention, displaying decimals can create confusion or misinterpretation on site. This is exactly where the topic of how to remove decimals in autocad dimensions comes into play. According to What Dimensions, precise size references support better communication across engineering teams, fabrication shops, and instructors who rely on exact specs. In practice, decisions about decimal visibility affect not only the drawing aesthetic but also how measurements are interpreted in manufacturing workflows. You will typically need to balance readability with technical precision, ensuring that the chosen approach aligns with your company’s standards, project requirements, and the intended audience for the drawing. This section maps out the rationale behind standardizing decimal display and introduces the key concepts you’ll apply in the steps that follow.
Understanding Dimension Styles in AutoCAD
AutoCAD uses dimension styles (DIMSTYLE) to control how measurements are displayed, including units, precision, arrows, text placement, and suffixes. When you ask how to remove decimals in autocad dimensions, you are really modifying the primary precision for the relevant style. Dimension styles can be applied globally across a drawing or adjusted per dimension. It’s common to have multiple styles for different drawings or templates, but consistency is the goal. This section explains the anatomy of a style and how the different fields interact. You’ll learn where precision is stored (the primary precision field) and how that setting propagates to linear, angular, and aligned dimensions. By understanding the structure, you can avoid unintended changes to related dimensions and keep your notation uniform.
Changing the Primary Precision in a Dimension Style
To remove decimals in autocad dimensions, you’ll adjust the primary precision in the dimension style. Start by opening the Dimension Style Manager (DIMSTYLE) and selecting the target style. The primary precision controls how many digits appear after the decimal point for all dimensions that use that style. Setting this to zero hides decimals altogether, while selecting a specific integer value displays that many decimal places. If you work with mixed units (inches, millimeters), you may need separate styles to reflect different rounding rules. When you modify a style, AutoCAD can prompt you to apply changes to the current drawing only or to all future drawings that inherit the style. This decision impacts workflow planning and template maintenance.
Applying Changes Across the Drawing and Templates
After you set the desired primary precision, you’ll apply the updated style to the current drawing. You can do this by selecting all dimensions or by re-assigning the style to all objects that should follow the new rule. It’s wise to test with a few representative dimensions to verify readability and ensure no tolerances or annotation plates are unexpectedly affected. If your organization relies on templates, save the modified style to a template (.dwt) so new projects inherit the correct decimal behavior automatically. Consistency across templates and libraries reduces post-design revisions and ensures that new drawings start with the correct notation. This approach aligns with best practices for scalable CAD management as discussed by What Dimensions.
Common Pitfalls and How to Avoid Them
A frequent mistake when learning how to remove decimals in autocad dimensions is assuming that changing one style will automatically fix every dimension. In reality, some drawings use overrides or multiple styles within the same file. Always check: (1) which style governs each dimension, (2) whether any dimensions have manual overrides, and (3) whether leaders or angular dimensions require a different approach. Another pitfall is changing primary precision without updating the template, which can cause inconsistency in new drawings. To prevent issues, enforce a single source of truth for dimension notation by auditing styles and locking templates. Finally, remember that decimal removal can affect related features like tolerances or feature control frames; separate rules may apply for these elements.
Practical Examples: Before and After
Consider a simple part with linear dimensions shown as 12.500, 7.75, and 0.0. If your project requires whole numbers, you would set the primary precision to 0 for the relevant dimension style, apply this style to all linear dimensions, and verify that the resulting display reads 12, 8, and 0 (depending on rounding). In another scenario, a GD&T callout inside a feature control frame may still display decimals for accuracy purposes. You can handle that by using a separate style with its own precision rules for tolerance frames. The goal is to create a clean, professional drawing while preserving essential information where necessary.
Best Practices for Consistent Dimensional Notation
To keep decimals consistent across projects, adopt a centralized standard: (a) define a default dimension style with the desired primary precision, (b) create project templates that encode this standard, (c) distribute and enforce guidelines for overrides, (d) periodically audit drawings for compliance, and (e) document changes in your CAD standards repository. This approach reduces the risk of drift between drawings and ensures teams communicate in a common visual language. As you apply these practices, you’ll experience fewer misunderstandings, faster reviews, and more reliable fabrication outcomes.
Tools & Materials
- AutoCAD software(Installed on a workstation with access to Dimension Styles (DIMSTYLE) features.)
- Dimension Style file / template(Preferably a .dwt template for consistent defaults.)
- Project standards document(Optional but recommended to align with organizational rules.)
- Backup drawing file(Create a copy before making global style changes.)

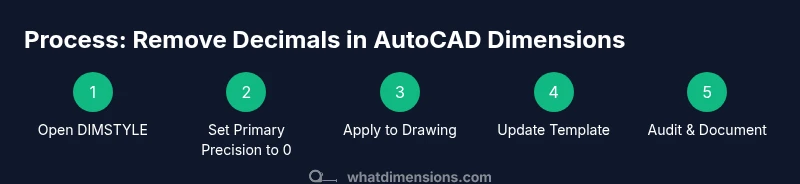

Steps
Estimated time: 25-40 minutes
- 1
Open Dimension Style Manager
Launch AutoCAD and open the DIMSTYLE manager. Identify which style governs the drawing you’ll modify. This is the first concrete action toward removing decimals because it defines where precision is stored.
Tip: If multiple styles appear, filter by the current layout or layer usage to target the correct style. - 2
Select or create a target style
Choose an existing style that applies to the drawing or create a new style for this standard. Duplicating a style is safer when you need a separate version for specific projects.
Tip: Name the new style with a recognizable suffix like _INT-STD to indicate internal standards. - 3
Set the primary precision to zero
In the style editor, locate Primary Precision (or Units Precision) and set it to 0. This will remove decimals for all dimensions using this style. Confirm that the display updates in a sample dimension preview.
Tip: If you work with mixed units, you may need a second style for inches with a different rule. - 4
Apply changes to the drawing
Apply the updated style to the current drawing by re-assigning it to all relevant dimensions or by re-generating the dimension annotations. Test with a few measurements to ensure decimals are hidden as intended.
Tip: Use a selection filter to limit changes to linear dimensions first, then verify angular and leader dimensions. - 5
Propagate to templates
Save the modified style to your template file (.dwt) so future projects inherit the correct precision behavior. This step enforces consistency at the source.
Tip: Maintain a versioned template library to track changes over time. - 6
Audit and document
Run a quick audit across recent drawings to catch any overrides or exceptions. Document the new standard in your CAD guidelines so team members understand when and why decimals are removed.
Tip: Create a quick one-page reference for designers and engineers. - 7
Review tolerances and frames
Check tolerances and feature control frames to confirm that removing decimals hasn’t compromised critical specifications. If needed, use a separate style for tolerance-based annotations.
Tip: Keep tolerances visible where necessary and avoid over-simplification.
Quick Answers
Can I remove decimals only for specific dimensions?
Yes. Use dimension style overrides or apply a targeted style to select dimensions. If some dims require decimals for accuracy, keep those on a separate style or revert their override manually.
Yes. You can target specific dimensions using overrides or a separate style for precision-sensitive cases.
Will removing decimals affect tolerances?
Tolerances are controlled separately from primary dimension precision. If tolerances need decimals, you may need a dedicated style for toleranced dims.
Tolerances are separate from primary precision, so decimals in tolerances may still appear if configured.
How do I revert the change if needed?
Change the primary precision back to the previous value in the dimension style, and re-apply it to the drawing. Maintain a clear record of changes for future reference.
Revert by resetting the primary precision to its prior value and reapplying to the drawing.
Does this apply to both linear and angular dimensions?
Yes. The primary precision setting in a dimension style applies to all dimensions that inherit that style, including linear and angular dimensions.
Yes, dimension styles govern both linear and angular dimensions.
Is it possible to remove decimals in annotations?
Annotation text is separate from dimension decimals. If you need consistent look, adjust text styles or use dimension-driven annotation blocks with a fixed format.
Annotation decimal removal typically involves text styles and formatting rather than dimension styles.
Should I always update templates after changing styles?
Yes. Updating templates ensures new projects inherit the correct defaults, reducing drift and rework.
Always update and distribute the template so future drawings follow the new standard.
What if I have mixed measurements (inches and millimeters)?
Maintain separate styles for different units to avoid confusion. Apply the appropriate style depending on each dimension’s unit system.
Use separate styles for each unit system to keep dimensions clear.
