How to Make Dimensions Visible in AutoCAD: Step-by-Step Guide
Learn how to make dimensions visible in AutoCAD with a clear, step-by-step approach. This What Dimensions guide covers annotation scale, layer management, and best practices for model and paper space.
How to make dimensions visible in autocad: this guide provides a concise plan to enable and manage dim visibility, adjust annotation scales, and verify dims across model space and layouts. You’ll learn essential steps, from checking the dimension style to testing prints, so your drawings stay clear and readable.
Understanding dimension visibility in AutoCAD
When you’re learning how to make dimensions visible in autocad, you’re really learning how to manage where, when, and how dimensions appear in your drawings. The visibility of dimensions is not a single switch; it depends on a combination of annotation scales, layer settings, dimstyle configurations, and the space you are working in (model space versus paper space). According to What Dimensions, the most reliable way to ensure dims stay visible is to establish consistent annotation scales early and keep all dimension objects on a dedicated, enabled layer. This prevents hidden or off-screen dimensions from appearing when you zoom or switch between layouts.
In practice, visibility starts with understanding your drawing’s scale and the layers you use for annotations. If dims are on a layer that is currently frozen or turned off, they will not display. Similarly, if the annotation scale is mismatched with the current viewport, numbers and arrows can look tiny or vanish as you zoom. A robust approach combines a standard dimstyle, a dedicated dims layer, and a clearly defined annotation scale across spaces. What Dimensions analysis, 2026, shows that users who adopt these controls experience fewer visibility issues and faster drafting workflows.
This section introduces the core concepts you’ll apply in the rest of the guide. It also sets the stage for practical steps to make dimensions visible in autocad across different project needs, from simple elevations to large assemblies. The goal is a consistent, readable dimensioning system that enhances, rather than clutters, your drawings. The What Dimensions team emphasizes sticking to a predictable workflow so dimensions remain visible under typical editing and printing conditions.
noteLevel2: null
원
Tools & Materials
- AutoCAD software (any recent release)(Ensure you have access to the DIMSTYLE manager and annotation scale settings.)
- A drawing file that uses dimension objects(Open a project where dims are currently visible or hidden to test changes.)
- Dimension style reference sheet(Prepare a copy with preferred text height, arrow size, and fit options.)
- Layer visibility controls (Layers panel)(Have dims on a dedicated layer that is On and not frozen.)
- Zoom, Pan, and Viewport tools(Useful for quick checks during the process.)
Steps
Estimated time: 25-40 minutes

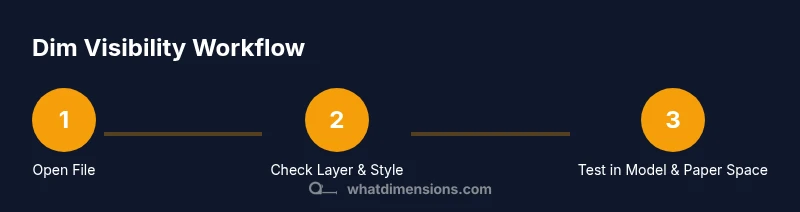

- 1
Open the AutoCAD drawing
Launch AutoCAD and open the target project. Confirm you are in the correct space (Model Space for initial checks, Paper Space for layout tests). This first step sets the stage for visibility improvements and ensures you are applying changes to the right workspace.
Tip: Use ZOOM to quickly locate existing dimensions and verify they are in the expected space. - 2
Check the dimension style
Open the DIMSTYLE manager and review the active style. Verify the text height, arrow size, and overall fit options are appropriate for your drawing scale. A mismatch here often makes dims illegible even when they exist.
Tip: If unsure, apply a standard annotative dimstyle temporarily to test readability. - 3
Verify annotation scale and viewport scale
Ensure the annotation scale matches the intended print or screen size. In layouts, align the viewport annotation scale with the model space dims so they scale consistently.
Tip: For multi-sheet drawings, set a consistent annotation scale across all viewports. - 4
Enable the dimension layer
Make sure the layer that contains dimension objects is On, not frozen, and not hidden by a viewport clip. This ensures dims render in the active view.
Tip: If dims are on a frozen layer, thaw it to re-display immediately. - 5
Adjust DIMSCALE and related settings
Modify DIMSCALE (and, if needed, DIMLFAC) to match the current drawing scale. Proper scaling prevents dims from being too small or oversized in prints.
Tip: Test with a quick print preview to confirm the scale looks correct. - 6
Check dimension association and visibility
Verify that dimensions are associated correctly (DIMASSOC set to 2 is common for associative dims) and that display properties (text, arrows, lines) are enabled in the properties panel.
Tip: Uncheck any visibility overrides that may hide dims in certain views. - 7
Test in both Model Space and Paper Space
Switch between model space and paper space to confirm dims remain legible in all contexts. Some visibility issues only appear in one space.
Tip: Place a test viewport to compare how dims render in both spaces. - 8
Conduct a print/plot preview
Run a preview to ensure dims will appear as intended on the final output. If dims disappear in the print, adjust layers and scales accordingly.
Tip: Print previews are your best early warning for visibility problems. - 9
Save configuration and document your workflow
Save changes to the drawing and note the steps you used to make dims visible. This helps teammates reproduce the setup later and maintain consistency across projects.
Tip: Create a simple checklist you can reuse on future files.
Quick Answers
Why do dimensions disappear when I zoom in or out?
This often happens when annotation scale or DIMSCALE is misaligned with the active view. Check the annotation scale, dimension style, and the target layer to ensure dims are not being hidden or scaled incorrectly.
Dims disappear because the scale doesn't match the view; adjust annotation scale and dimstyle to fix it.
How do I change the dimension style to improve visibility?
Open the DIMSTYLE manager, adjust text height, arrow size, and fit options to suit your drawing. Apply changes and test in both model space and a layout.
Open DIMSTYLE, tweak text height and arrow size, then test in different views.
What is DIMSCALE and how should I use it?
DIMSCALE scales dimension text and symbols to fit the current drawing scale. Set it to match your annotation scale or use DIMLFAC for more control.
DIMSCALE scales the dimensions; align it with your annotation scale for consistency.
Why are dimensions sometimes invisible in Paper Space but visible in Model Space?
Dims may be tied to the model space annotation scale and not correctly mapped to the paper space view. Ensure the viewport uses a matching annotation scale and the dim layer is visible in Paper Space.
Dims can hide in paper space if the viewport scale doesn’t match the model. Check the viewport’s annotation scale and layer visibility.
Do drawing units affect dimension readability?
Yes. Ensure units are set consistently and that the dim text height is appropriate for the unit scale. Inconsistent units can make dimensions look too small or too large.
Units matter; pick a consistent unit and set an appropriate text height for readability.
How can I document the dims setup for teammates?
Create a simple checklist or note in the drawing or project wiki detailing the chosen dimstyle, annotation scale, and layers used for dimensions.
Make a quick checklist so teammates know exactly how dims are set up.
