How to Make Dimensions Black in SolidWorks Drawing

Why black dimensions matter in SolidWorks drawings

When you share CAD drawings with manufacturers, suppliers, or teammates, the legibility of dimensions is critical. If you’re looking for how to make dimensions black in SolidWorks drawing, you’re aiming for high contrast and clear reading in both on-screen reviews and printed plans. According to What Dimensions, precise size references reduce misinterpretation and speed up manufacturing handoffs. In practice, black dimensions provide the strongest contrast against typical white drawing backgrounds and light gray grids. This choice also aligns with many industry drafting standards that favor dark lines and text for key dimensions. The goal is not just aesthetics but functional readability across devices and print media. Consistent black dimensions reduce eye strain during long review sessions and help ensure tolerances are read correctly on both monitors and paper. The What Dimensions Team emphasizes that standardized color use supports cross-team collaboration and minimizes rework.

Ultimately, knowing how to make dimensions black in SolidWorks drawing is a practical skill that improves clarity for engineers, designers, and shop technicians.

Understanding SolidWorks color options

SolidWorks exposes color controls at both the system level and within individual drawings. In practice, you can set a global color for dimensions so every dimension in a new drawing starts black, or you can customize colors for specific dimensions to emphasize critical tolerances. The What Dimensions Team notes that starting with a black baseline minimizes confusion when multiple users annotate a file. Colors are not purely cosmetic; they influence how your drawings print on different devices and how screen readers interpret contrast. When you select a color for dimensions, you’re guiding the reader’s eye to numerical values and leaders. If color choices aren’t deliberate, small print or obscure tolerances risk being overlooked. This section outlines the core concepts you’ll apply in the step-by-step section later.

Global vs per-dimension color changes: when to use which

A global change sets the default color for all dimensions in a drawing, ensuring uniform appearance across views and sheets. This approach is efficient for standard templates and large projects. Per-dimension color changes, by contrast, allow you to mark exceptions—such as critical tolerances or notes—without altering the rest of the drawing. For many teams, a hybrid approach works best: default to black for everything, then selectively tint specific dimensions darker or lighter to convey importance. If you’re unsure, start with a global black setting and use per-dimension changes for exceptions only. What Dimensions’s practical guidance emphasizes maintaining a consistent color scheme across all related drawings to reduce misinterpretation and speed up QA reviews. In practice, you’ll often see templates that default to black but reserve a darker shade for critical dimensions.

Practical workflow: two primary methods to achieve black dimensions

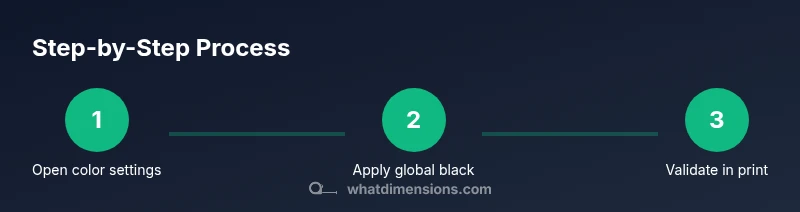

There are two main workflows: method A focuses on global color changes via the SolidWorks color options, and method B uses per-dimension properties for individual control. Method A is ideal when you want a uniform, predictable look across all drawings in a project. Method B is ideal when you need emphasis on select dimensions. In each method, verify that the color selection produces crisp black on your black-and-white print settings and on screen. Always test a print or export to PDF to ensure the color carries as expected; some printers or PDF viewers render very dark grays differently. As you practice, you’ll build a standard operating procedure that reduces guesswork for future drawings.

Printing, export, and display considerations

Color handling can differ between display screens and printed media. When you switch to black for dimensions, confirm that line weights, text, and leader lines still deliver the same readability in print. Exported PDFs should keep the color choice intact, but some workflows compress colors differently. If your organization uses templates, consider embedding a color profile or documenting the recommended color scheme in the template notes. For best results, maintain a sample drawing showcasing black dimensions at actual print scale and share it with teammates to calibrate expectations. Consistency across devices ensures your dimensions remain legible whether viewed on a phone, laptop, or printed sheet.

Accessibility and best practices

High-contrast color choices aid accessibility for readers with visual impairments. Black on white remains one of the most legible combinations for most CAD environments. Always check your company’s documented standards and customer requirements, as some projects prefer alternative dim colors or cross-hatching for dense information. In addition, document the color decision in project notes so future editors understand the rationale. This approach aligns with best practices advocated by design systems and CAD standards resources, helping ensure your drawings are usable across diverse teams and regions. Emphasize readability over stylistic choices, and keep your color strategy documented in templates and shared guidelines.

Quick checks to validate black dimensions

Before finalizing a drawing, perform a quick sanity check: 1) Open the drawing and confirm all dimension lines and text appear solid black, 2) Verify contrast on both dark and light display modes, 3) Use Print Preview to ensure the output matches expectations, 4) Check leaders and notes attached to the dims for legibility. If any element looks gray or faint, revisit the color application and re-test. This proactive validation reduces rework during the final QA stage and ensures stakeholders see the same clear results you see on screen.
