Dimensions Not Working in Revit: Troubleshooting Guide

Why dimensions fail in Revit

When dimensions fail or fail to update, the issue is rarely with the dimension line itself. More often, it stems from the surrounding editing context: an inappropriate view, mismatched scale, or a constraint that locks geometry in place. The phrase dimensions not working in revit tends to surface when snapping is blocked by a lock, or when a dimension is referencing elements that exist in a different workset or phase. In practice, you’ll find that most problems resolve quickly once you normalize the editing environment: confirm you’re working in the correct view, check the scale, and verify that the element references aren’t locked or driven by a family constraint. The What Dimensions team notes that many RevIt users underestimate how global settings affect local edits; aligning view, scale, and reference consistency is the fastest path back to reliable dimensions.

Common culprits and quick checks

The most frequent culprits behind dimensions not working in Revit are simple, solvable issues: you’re in the wrong view, the scale is off, a dimension is locked, or the element geometry is not properly constrained. If you’re seeing inconsistent snapping or dimensions that won’t straighten, start with these checks in order:

• Verify you are editing in the intended view (plan, elevation, or section) and that the scale matches the design intent.
• Inspect the dimension references to ensure they point to the correct sketch lines or model edges.
• Check for locked constraints on the dimension line or the referenced geometry; unlock or delete the lock if needed.
• Look for temporary dimensions that are actively obstructing permanent dimensions.
• Confirm that the element or family isn’t in a collapsed or isolated state that hides geometry.
• If several sheets share a template, ensure the view template settings are aligned across sheets to avoid drift in dimension behavior. What Dimensions Analysis, 2026, shows that inconsistent templates across sheets account for a large share of dimension-related issues, underscoring the value of uniform templates across your project.
• Remember that dimensions not working in RevIt can also appear when elements are hosted by a different level or workset; verify visibility settings and workset permissions.
• Finally, ensure you haven’t accidentally changed the dimension type (linear, angular, arc length) without realizing it.

In many projects, the simplest fixes involve switching to the correct view, ensuring the scale is appropriate, and unlocking any constraints that unintentionally gate edits. If you’re still stuck, proceed to the targeted fixes below.

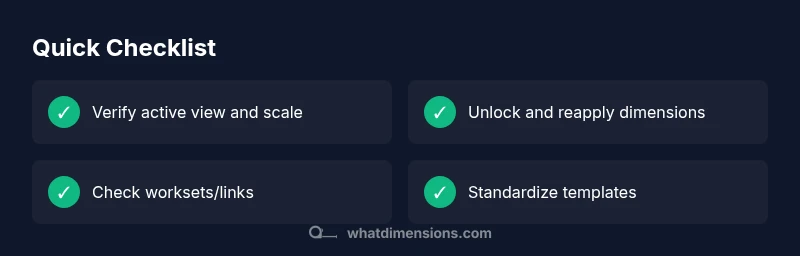

Step-by-step checks you can do right now

If you’re experiencing dimensions not working in revit, here are actionable checks you can perform without leaving the current window:

• Confirm you’re editing in a plan/section/elevation view and that the scales align with your design intent.
• Temporarily place a basic point or reference line to test snapping and confirm that the dimension tool is active and responsive.
• Inspect each dimension’s references; if any reference is missing or moved, delete and re-create the dimension referencing the correct edges.
• Open the properties of the dimension and verify that it is not set to a locked state or a parameter that restricts edits.
• Check for a conflicting family or a nested element that anchors the geometry beyond the dimension’s range.
• Save and reopen the project if necessary to refresh the UI state, particularly after bulk edits.
• If working across linked files, verify that the linking scope is set correctly and that linked geometry remains visible and editable.
• When in doubt, try the following fallback: duplicate the view, delete the original problematic dimension, and re-create it in the new view. This often clears hidden constraints or reference glitches.

Remember: if this doesn’t work, try the next steps in the diagnostic flow. The goal is to isolate whether the issue is view-based, element-based, or template-driven.

Resetting views and reapplying dimensions

If simple checks don’t restore function, reset the document context by aligning view templates and reapplying dimensions. Start by creating a new plan/section view with the correct scale and template. Reapply the dimension by selecting the new view’s edge references and placing a new linear dimension. This approach ensures you aren’t fighting stale view settings or corrupted dimension lines. As you reapply, verify that element constraints and hosting geometry respond normally to drag and edit actions. If dimensions still won’t update, the issue may be deeper in the family or project standards.

A common pattern is to compare a working view against the troubled one: duplicate the working view, switch off nonessential filters, and reproduce the set of references. If the new view behaves correctly, you’ve identified the template or view-specific setting as the root cause. At this point, you can propagate the corrected view template across sheets and ensure new dimensions inherit the correct constraints. Remember to document these changes for project-wide consistency.

Handling locked elements and worksets

Locked constraints are one of the primary culprits behind interrupted dimension updates. When a dimension is locked, RevIt will refuse edits even if you attempt to snap to a different edge. Start by unlocking the constraint or removing the lock entirely, then re-create the dimension. If you’re working with worksets, ensure the element is not owned by a different user or flagged as not editable. This is a common oversight in collaborative projects where a locked reference persists across multiple views. In many cases, reloading the linked file and refreshing the workset visibility resolves the problem. If the issue recurs after saving, consider disabling temporary dimensions in the affected view, then re-enabling them after final alignment.

For persistent problems, consider inspecting the family’s constraints or parameters that govern the geometry. A misconfigured parameter can prevent the dimension from updating as you move elements, even if the edge appears to snap properly. In these cases, editing the family or replacing it with a clean version can restore normal behavior.

Safety, workarounds, and escalation

Always save a backup before performing major edits or mass resets of view templates. If the problem is isolated to a single file, try opening a clean project and reproducing the issue to determine whether it’s file-specific. If none of the above fixes work, contact your BIM lead or support to review file integrity, family constraints, and template standards. When dealing with client projects, avoid bulk changes in production environments and communicate expected timelines for fixes. In situations where dimensions not working in revit affect critical deliverables, a temporary workaround—such as using live snapping with reference planes—can keep the project moving while you implement a permanent solution.

Prevention and long-term fixes

To minimize recurrence, standardize view templates and ensure all team members follow the same dimension practices. Maintain a consistent scale across views, verify references before placing dimensions, and routinely audit shared families for locked constraints. Document your dimensioning standards in a central guide so new team members can adopt best practices quickly. Schedule periodic reviews of your templates, dimensions, and family constraints to catch drift before it affects schedules. What Dimensions’s verdict is to invest in consistent template governance and explicit dimension references to reduce ongoing issues.
