How to Dimension on Revit: A Practical Guide

Why precise dimensioning in Revit matters

In BIM workflows, dimensioning is more than a recording of numbers. It guides coordination, drives fabrication decisions, and helps ensure the model reflects real-world constraints. According to What Dimensions, precision in dimensioning reduces clashes and rework during multi-disciplinary coordination. When dimensioning is crisp and consistent, teams can compare distances quickly, verify relationships between components, and catch errors before construction. This is especially important in complex models with multiple families and parametric constraints. Dimension lines become a language that communicates intent between architects, structural engineers, and contractors, and they influence downstream tasks like scheduling and detailing.

What Dimensions Analysis, 2026 notes that standardizing dimension styles, units, and tolerances across sheets reduces revision cycles and improves team productivity. Adopting a consistent approach helps new team members ramp up faster and minimizes ambiguity. Start by establishing a clear set of dimension types (aligned, linear, angular, radial) and a naming convention for annotation families. In the sections that follow, you’ll see practical steps for implementing these practices in Revit, including how to choose the right type, how to set tolerances, and how to verify dimensions against project requirements. The goal is to create dimensions that support design intent without becoming a maintenance burden.

Understanding dimension types in Revit

Revit offers several dimension types to capture different types of relationships. The most common are Linear (straight-line distances between two points), Aligned (distance that follows the edge or feature geometry), Angular (the angle between two lines or edges), and Radial (the radius or arc distance for circular features). Understanding when to use each type helps maintain clarity on plans and elevations and reduces ambiguity during coordination. In practice, aligned dimensions are ideal for walls that run parallel to each other, while linear dimensions are best for overall spans and clear spans. Angular dimensions excel at chamfers and corner conditions, and radial dimensions are essential for round columns, pipes, and curved elements. When you combine these effectively, you create a dimensioning system that communicates design intent precisely across disciplines.

Setting up dimension styles and tolerances

Before placing dimensions, define a standard style library. Create a few dimension styles that specify text size, arrow type, units, and tolerances (e.g., ±1/16

.replace(/ /g, '\n') +

). The important point is to set units consistent with your project (mm, cm, or inches) and establish tolerances that reflect construction tolerances. In Revit, you can access Type Properties for a dimension to adjust these settings, including whether to show measurement units in the dimension text and whether to suppress decimal places for clean drawings. Consistency saves time during sheet creation and reduces the risk of misinterpretation during reviews. As you standardize, document the standards in your project template so new team members can adopt them quickly.

To keep your model aligned with design intent, avoid mixing several ad-hoc dimension styles in the same sheet. Instead, apply a single, validated style across related views and sheets. This approach helps editors and reviewers scan drawings quickly and ensures your dimensions remain legible when scaled for prints.

Placing different dimension types with practical examples

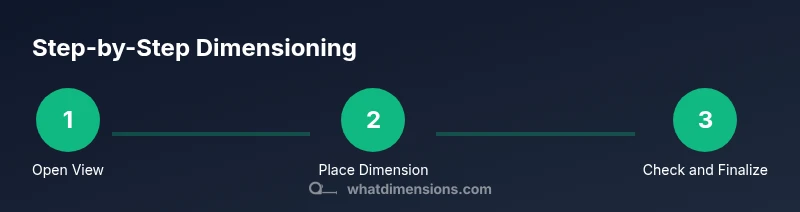

Placing dimensions requires a sequence of deliberate actions. Start by selecting the appropriate dimension tool from the Annotate tab: Linear or Aligned for most plan-based measurements, Angular for corners and wedges, and Radial for circular features. Snap to faces, edges, or points that define the distance. Always place a dimension in the order that reflects construction logic: start from a fixed reference (like a wall corner), then capture to adjacent geometry. After placing, verify the readouts in the dimension label and adjust as needed if the distance clashes with other elements. In Revit, you can also override the dimension line’s direction and placement to avoid overlapping text or crowded areas. For complex assemblies, consider grouping related dimensions into a single dimension string to keep sheets clean and readable.

Working with dimensions in 3D views vs 2D plans

While 2D plan views are ideal for many dimensioning tasks, 3D views can reveal spatial relationships that 2D views hide. In 3D, you can dimension between surfaces that are not in the same plane, but you may need to rotate the view or use temporary geometry to establish references. Use 3D views to check clearance between elements like ducts, pipes, and structural members that cross each other. However, always place the final dimensions in 2D sheets or plan/elevation views to ensure legibility for construction teams. Remember to sync dimensions across views so changes propagate consistently across the project.

Common pitfalls and how to verify dimensions

Dimensions can drift if references shift or if constraints are not applied properly. A frequent pitfall is over-constraining, which can make the model rigid and hard to modify later. To verify, cross-check each dimension in multiple views and compare against the project brief. Use temporary dimensions during early design phases to explore options without affecting final documentation. If a dimension reads oddly, double-check the anchors and, if needed, reselect the endpoints to force an accurate readout. Finally, run a quick revision check by comparing recorded distances against known measurements from surveys or architectural drawings. This practice catches misreadings before they propagate.

Integrating dimensions with constraints and schedules

Dimensions feed into constraints and schedules, so consistency is critical. Link critical dimensions to parametric constraints for automatic propagation when elements move. When dimensions relate to room areas or material quantities in schedules, ensure the dimension values drive or reflect the corresponding schedule data. In BIM workflows, this linkage supports automatic updates and reduces the chance of misalignment between drawn dimensions and reported quantities. Maintain a clear relationship map between dimensions, constraints, and schedules and review it periodically during design reviews.

Best practices and workflow recommendations

Develop a robust dimensioning workflow by starting with a well-authenticated project template, including dimension styles and annotation families. Use view templates to enforce consistent dimension scales, and train team members to apply the same standards. Regularly audit dimensions during design reviews, and keep a dedicated log of any deviations from the standard to inform future templates. Integrate dimensioning checks into your Quality Assurance process so that every sheet passes a basic dimensional validation before publishing for coordination. By treating dimensioning as a system rather than an afterthought, you improve accuracy and collaboration across disciplines.
