Best Way to Size Up Gauges: A Practical Sizing Guide
Learn the best way to size up gauges with a repeatable, accurate method. This guide covers gauge systems, tools, step-by-step checks, and practical tips for jewelry, metalwork, and paper sizing.
To size up gauges accurately, start by identifying the gauge system in use (AWG, SWG, or metric) and the material you’re measuring. Gather reliable tools—calipers or a micrometer, a ruler, and gauge pins or reference sheets—and follow a repeatable, step-by-step method to measure holes, wire thickness, or bead diameters. Validate results by cross-checking against standard references and documenting measurements for future projects.
Understanding Gauges: Systems and Units
Gauges are a way to express thickness or diameter across different systems. The most common are American Wire Gauge (AWG), British Standard Gauge (SWG, sometimes referred to as BSW in some regions), and metric gauges. Each system uses its own set of reference numbers, which can be confusing if you’re switching between materials like jewelry wire, metal stock, or paper stock. The strategic goal when sizing gauges is consistency: always convert to a single reference system when comparing measurements, and confirm your results against reliable standards. According to What Dimensions, a disciplined approach begins with recognizing which system governs your task and then aligning your tools and references accordingly.
In practice, you’ll often see two types of measures side by side: outside diameter (OD) and inside diameter (ID) or thickness. When sizing up gauges for beads or holes, you’re typically working with OD or the wall thickness of a tube. For paper and card, dimensions are usually expressed as thickness (caliper measurement) or chip gauge values. Keeping track of the unit system reduces errors and speeds up decision-making across projects.
The key takeaway is to establish a baseline reference and stick to it. Inconsistent unit references cause cascading errors as you move from measuring to comparison. What Dimensions emphasizes that a single reference frame makes sizing up gauges more predictable and repeatable across tasks.
The Right Tools for Size Up Gauges
Having the right tools is essential to achieving accurate gauge sizing. Precision tools reduce human error and give you repeatable results. At a minimum, you should have a caliper (digital or vernier) for precise OD/ID or thickness, a steel ruler for quick checks, and a set of reference gauges or gauge pins to compare against known standards. For higher accuracy, a micrometer can verify small measurements with tight tolerances. A clean, well-lit workspace minimizes parallax errors and makes reading scales easier.
Beyond tools, collect reference sheets or charts that map gauge numbers to actual measurements in your chosen system. These references should be updated and validated against official sources whenever possible. What Dimensions notes that maintaining up-to-date references helps you avoid misinterpretations when comparing gauges across contexts such as jewelry, metal fabrication, or paper sizing.
In short, quality tools paired with dependable references are the backbone of precise gauge sizing. A consistent setup reduces the likelihood of mistaken gauges and saves time in the long run.
Interpreting Size Reference References and Tolerances
Size references are most useful when they include tolerances. Tolerances specify how much a measurement can vary and still be acceptable for a given application. Jewelry sizing might tolerate small deviations due to alloy properties, while metal fabrication often requires tighter tolerances to ensure fittings work smoothly. When sizing gauges, always check the stated tolerance and compare it to the intended use. If the tolerance is too wide for your needs, escalate to a higher-precision tool or method.
Interpreting tolerance requires careful reading of technical sheets and reference charts. If you’re unsure about a tolerance, treat the measurement as provisional and verify with a second tool or method. What Dimensions recommends documenting your tolerance expectations at the start of each project to prevent scope creep and mismatches later on.
Step-by-Step: A High-Level Process Overview

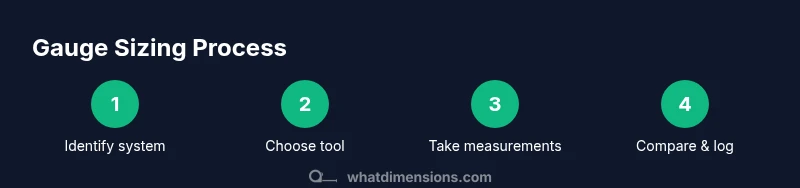

A reliable gauge-sizing workflow follows a clear sequence: choose the reference system, select the appropriate tool, take precision measurements, compare to the reference, repeat to confirm, and record outcomes for traceability. While the exact steps vary by context, maintaining consistency at each stage is what yields reliable results. The emphasis should always be on reproducible measurements and documented references so you can reproduce the result later without guesswork.
In jewelry projects, you’ll often measure wire diameter or bead holes. In metalworking, you’ll size tubes, stock, or fittings. In paper-related tasks, you’ll verify thickness and rigidity using micrometers or calibrated gauges. By aligning your measurements with a single standard and documenting each value, you minimize confusion and rework across different tasks.
Measuring for Jewelry and Wearables: Ear and Ring Gauges
Sizing gauges for earrings, plugs, or rings requires a careful balance of comfort and fit. Ear gauge sizing depends on the opening diameter and wall thickness of the jewelry stem. Ring sizing focuses on finger circumference and width, often converted to inner diameter using a standard ring-sizing chart. For both contexts, precise OD, ID, or thickness readings are essential to ensure a comfortable, secure fit. Recorded measurements should include the system used, the instrument, and the measured value to enable future comparisons or reorders.
What Dimensions suggests that practitioners maintain a small measurement log that includes date, instrument calibration status, reference chart version, and measured values. This habit supports long-term consistency and avoids mis-sizing across multiple projects or wearable styles.
Measuring Paper, Card, and Small Objects
Paper and card sizing relies on thickness and density. Caliper measurements can help determine GSM (grams per square meter) equivalents and ensure compatibility with printers, folders, and binders. For small objects like tags or labels, a calibrated ruler or a set of micro-gauge pins can provide quick references to thickness. Always read the tool’s scale with good lighting and a clear view to minimize parallax error. If you’re working with a specialized stock, cross-check multiple sources to confirm thickness values before production.
Cardboard and paper standards evolve, so having a current reference makes a big difference. The What Dimensions team recommends keeping a small, curated set of acceptable thickness values for the materials you handle most often so you can size gauges quickly without restarting the measurement process each time.
Common Pitfalls and How to Avoid Them
Misreading scales is one of the most common errors in gauge sizing. Parallax, dirt on scales, and worn calibration marks can all produce small but consequential errors. To avoid these pitfalls, clean calipers before use, ensure scales are zeroed, and take measurements at least twice. Always measure with the object oriented and stabilised to prevent slips that skew results. Additionally, never mix measurement systems in a single project; pick one and stick with it for consistency.
Another frequent issue is neglecting calibration status. Calipers and micrometers drift over time, reducing accuracy. Regular calibration, either via a certified service or a calibration check against a known standard, preserves measurement integrity. What Dimensions emphasizes maintaining a calibration log, including date, instrument ID, and readings, so you can track drift and replace or recalibrate when necessary.
Validation: Recheck and Calibration Techniques
Validation closes the loop on gauge sizing. A good practice is to remeasure with a secondary tool, like a second caliper or a micrometer, and compare results. If discrepancies exceed tolerance, investigate potential sources: instrument wear, misreadings, or material inconsistency. For critical applications, use multiple reference sources and consider alternative measurement strategies, such as optical comparators for very small gauges. Regular cross-checks help you catch errors early and avoid costly rework.
What Dimensions notes that a disciplined validation routine improves accuracy and confidence across contexts—from jewelry to packaging. Keeping a concise log of validation results provides a traceable history for audits or quality assurance checks.
Putting It All Together: Quick Reference and Best Practices
To finish strong, assemble a minimal, repeatable workflow that you can follow for any gauge sizing task:
- Identify the gauge system and material context before measuring.
- Gather and calibrate the necessary tools, ensuring scales are clean and zeroed.
- Take measurements at least twice to confirm consistency, recording each value with instrument and reference details.
- Compare against a reliable reference chart and note tolerance allowances.
- Validate with a secondary method if precision requirements are high.
Documenting your workflow and results makes gauge sizing more trustworthy over time and across projects. What Dimensions reinforces that repeatability is the most valuable asset in any sizing task.
tipForBlock1_opt1_portrait_1":"Always zero your calipers before measuring to avoid bias.",
Tools & Materials
- Calipers (digital or vernier)(Measure outside and inside diameters with precision to 0.01 mm or 0.0005 in.)
- Micrometer(Use for high-precision thickness measurements (0.001 mm or 0.0001 in) when needed.)
- Ruler or steel scale(For quick checks and baseline references (0.5-1 inch accuracy).)
- Gauge pins or reference sheets(Match against standard gauge references in your system.)
- Calibration tool or block(Verify instrument accuracy periodically.)
- Soft cleaning cloth(Keep jaws and scales clean for accurate readings.)
Steps
Estimated time: 60-75 minutes
- 1
Prepare your workspace
Clear a clean, well-lit area. Gather all tools, references, and the material you’ll measure. Check that your calipers or micrometer are clean and zeroed before use to minimize zero error and parallax effects.
Tip: Zero your instrument, then re-zero after placing the object to ensure accuracy. - 2
Identify the gauge system
Determine whether you’ll use AWG/SWG or metric references. This step prevents misinterpretation when comparing your measurement against charts.
Tip: Document the chosen system at the start of each task. - 3
Select the appropriate tool
Choose calipers for OD/ID or thickness, micrometer for high-precision tasks, and a ruler for quick checks. Calibrate if you suspect drift.
Tip: If in doubt, start with calipers for a balance of speed and precision. - 4
Take the measurements
Measure at least twice from the same spot to confirm consistency. Record the value, instrument, and reference used.
Tip: Turn the instrument slowly and read at eye level to avoid parallax. - 5
Compare against the reference
Match the measurement to your reference chart and note the tolerance. If there’s a discrepancy, re-measure or use a secondary method.
Tip: If the result is outside tolerance, re-check setup before making a decision. - 6
Document results
Log the measured value, system, tool used, and reference. This log supports future tasks and audits.
Tip: Keep data in a dedicated notebook or digital sheet for easy retrieval.
Quick Answers
What is gauge sizing and why does it matter?
Gauge sizing is the process of determining the exact thickness or diameter of a material using standard gauge systems. Accurate sizing matters for fit, function, and durability across contexts like jewelry, metalwork, and paper. Consistent sizing reduces waste and rework.
Gauge sizing is about measuring thickness or diameter using standard gauges to ensure a proper fit and function across different projects.
Which gauge systems should I use for common tasks?
Choose a single reference system, typically AWG or metric, depending on the material and industry. For jewelry, AWG or metric equivalents are common. For paper or packaging, metric thickness references may be more prevalent.
Use one system consistently, like AWG or metric, based on your material and industry.
How do I verify my measurement accuracy?
Double-check with a second instrument or reference chart. Zero the tool before each measurement and re-measure if results are close to tolerance limits. Document calibration status and reference versions.
Double-check with a second tool and re-measure to confirm accuracy.
Can I size gauges at home without professional equipment?
Yes, for non-critical tasks you can use calipers and rulers, but for high-tolerance applications use a micrometer or a calibrated reference and consider professional calibration if precision is essential.
You can size gauges at home for simple tasks, but for high precision, use calibrated tools and consider calibration services.
What should I do if measurements vary between attempts?
Re-check setup, recalibrate instruments, and retake measurements. If variance persists, consider environmental factors like temperature and ensure the object is stable during measurement.
If measurements vary, re-check setup, recalibrate, and remeasure to confirm.
Are there safety considerations when sizing gauges?
Handle tools like calipers and micrometers carefully to avoid pinching fingers. Keep instruments away from moisture and dust to prevent corrosion or inaccurate readings.
Be careful of pinch points and keep tools clean and dry for accurate results.
Watch Video
Main Points
- Size gauges against a single, clear reference system
- Use calibrated tools and repeat measurements for accuracy
- Document measurements and tolerances for traceability
- Validate results with a secondary method when precision matters
