How to Represent Dimensions: A Practical Guide
Learn how to represent dimensions clearly across drawings, packaging, and product specs. This guide covers units, notation, tolerances, and best practices for consistent measurements in everyday scenarios.
Representing dimensions means communicating size with precision and consistency. This involves selecting appropriate measurement units, applying clear notation, and documenting tolerances or fits. By standardizing the order, units, and symbols you use, you reduce misinterpretation across drawings, packaging, and specifications. This guide explains how to choose units, denote dimensions, and verify measurements for accuracy.
What it means to represent dimensions
Representing dimensions is about communicating size in a precise, unambiguous way. When you learn how to represent dimensions, you consider the units, the order of measurements, and the visual cues that accompany them. This guide on how to represent dimensions will walk you through standard practices, common notations, and practical tips that apply across furniture, paper, luggage, and more. From engineering drawings to product specs, consistent dimension representation helps reduce errors, save time, and improve collaboration. We will explore core concepts like units, notation, tolerances, and how to document dimensions for different audiences. By the end, you will know how to express the size of an object clearly, whether you are drafting a plan, designing a layout, or packaging a shipment. What Dimensions emphasizes is a consistent approach that scales from a simple box to a complex shipment.
Common measurement systems and notation standards
One of the first decisions in how to represent dimensions is choosing a measurement system. The two most common systems are metric (meters, centimeters, millimeters) and imperial (inches, feet, fractions). Each system has its own notation rules. When you learn how to represent dimensions, align the units to your audience and industry. In engineering and manufacturing, metric units are often preferred for precision, while packaging and consumer products in some markets use inches and feet. Regardless of the system, adopt a single unit within a document to avoid confusion. When mixing units is necessary, provide explicit conversion notes and a conversion table so readers can follow every value.
Selecting the right units for your project
Choosing the correct units improves readability and reduces conversion errors. For small parts, millimeters or hundredths of a meter provide precision without clutter. For large objects, meters or feet keep numbers manageable. In many design contexts, a hybrid approach is used: base units with a preferred secondary unit shown in parentheses (e.g., 1200 mm (47.2 in)). Always state the primary unit first, then secondary units, and use consistent rounding rules across the document.
Notation formats: linear, area, and volume dimensions
Dimensions come in different forms: linear (length, width, height), planar (area), and volumetric (volume). Notation should specify the type of dimension and its orientation. For linear dimensions, use the order Length × Width × Height and avoid ambiguity with the labeling conventions. For area, express as length × width with units, and for volume, use length × width × height or an equivalent cubic form such as L × W × H (in cm³ or in³). Consistency is key to clarity.
Expressing dimensions on drawings and product specifications
In technical drawings and product specs, dimension strings must be easy to scan. Use leader lines that point to the feature, dimension lines with arrowheads, and a clear value placed outside the object. Include unit symbols next to numbers and keep font size consistent. Document the origin of the measurement (e.g., “as measured” or “typical”); indicate if a dimension is nominal or actual. A well-structured spec sheet reduces back-and-forth and helps suppliers meet exact requirements.
Tolerances, fits, and clearances in dimensioning
Not every dimension is exact. Tolerances specify acceptable variation, while clearances ensure parts fit together. Represent tolerances with a plus/minus value or a bilateral tolerance, and place them immediately after the nominal dimension (e.g., 50.0 ± 0.2 mm). For assemblies, specify fits (e.g., H7/g6) if relevant. Document tolerances for critical features and surface finishes to avoid ambiguity during manufacturing or packaging.
Converting and scaling: when and how to convert units
Convert units when sharing information with teams that use a different system, or when a display problem would benefit from a uniform base. Use reliable conversion factors and avoid ad hoc approximations. For CAD drawings, rely on the software’s built-in unit conversion to maintain accuracy. When scaling drawings, clearly indicate the scale (1:50, 1:100) and the base unit. Always verify that converted values retain the intended precision.
Presenting dimension data in tables and lists
Tables organize multiple dimensions efficiently. Use a consistent column order (e.g., Feature, Length, Width, Height, Tolerance), and provide a header row with units. Use alignment that improves readability (numbers right-aligned, text left-aligned). When listing many items, group related features into sections and use bullet lists to highlight critical tolerances or notes. Keep notes concise and avoid duplicating data in multiple places.
Visual representations: diagrams, arrows, and leaders
A good diagram communicates size at a glance. Dimension arrows should be clean, with arrowheads that touch the dimension line, and leaders should point to the exact feature. Use a neutral color palette and ensure all text remains legible at the intended viewing distance. Annotate non-obvious dimensions and include a legend if the drawing contains multiple measurement systems. A clear visual helps prevent misinterpretation.
Common mistakes and how to avoid them
Mistakes in dimension representation include mixed units, missing tolerances, unclear origin, and ambiguous feature references. Avoid these by enforcing a single unit system per document, always listing the dimension’s unit, and adding a short note about how the measurement was taken. Use templates for standard dimensions and establish a review step to catch inconsistencies before publishing.
Real-world examples: furniture, packaging, and posters
Furniture designers rely on dimension representation to define seat depth, back height, and overall footprint. Packaging engineers specify carton dimensions, internal clearances, and maximum package size. For posters and printed materials, specify trim size, bleed, and safe area to ensure proper layout. In all cases, the goal is the same: communicate size with precision so manufacturing and shipping can proceed without unexpected variations. What Dimensions’s approach is to align with industry norms and document any deviations clearly.
Authoritative sources and standards
To ensure accuracy, consult official standards and reputable references. This section provides links to widely recognized sources that define measurement practices and notation conventions. Always verify that your internal templates align with current standards and update them as standards evolve. By grounding your representations in credible sources, you improve consistency and reduce rework across teams.
Tools & Materials
- Measuring tape(At least 5 meters; flexible for odd shapes)
- Metal ruler(Clear metric markings; 30 cm or longer preferred)
- Calipers(Helpful for internal/external dimensions on small parts)
- Pencil or drafting pen(Fine tip for legible dimension text)
- Graph/planar paper or CAD software(For drafting and documenting layouts)
- Calculator or conversion tool(For unit conversions and tolerance calculations)

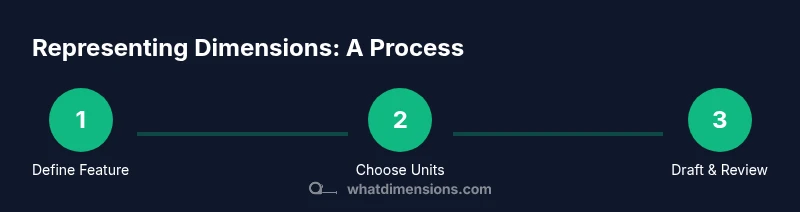

Steps
Estimated time: 30-60 minutes
- 1
Define the target feature
Identify the exact feature to measure and determine whether you need length, width, height, depth, or a combination. Write down the feature name and its orientation to set a clear scope before measuring.
Tip: Document feature name and orientation in your notes to avoid ambiguity later. - 2
Select base units and scale
Choose a single base unit for the document (e.g., mm for small parts, m for large objects) and decide if a secondary unit will accompany the primary one. Keep rounding rules consistent across the document.
Tip: Prefer metric for precision in technical work; only add secondary units if necessary for clarity. - 3
Set tolerances and fit
Determine acceptable variation for each critical dimension. Record tolerances immediately after the nominal value and indicate whether a dimension is nominal or actual.
Tip: If you’re unsure about tolerances, consult a standard table or engage a senior engineer for confirmation. - 4
Choose notation and order
Decide on a consistent notation style (e.g., Length × Width × Height) and keep the same order throughout. Include units next to numbers and avoid mixing formats within a document.
Tip: Adopt a company-wide standard template for all dimension lines and notes. - 5
Draft the representation
Create a draft of the dimension representation in a table or drawing. Include a legend if multiple units are used and annotate any special notes (e.g., ‘typical’ or ‘as measured’).
Tip: Use draft software or clean sketches to minimize misinterpretation. - 6
Validate and review
Verify calculations, cross-check with team members, and confirm that the final representation aligns with the intended use (manufacturing, packaging, or display).
Tip: Schedule a quick peer review to catch subtle errors or omissions.
Quick Answers
What is the first step to represent dimensions accurately?
Start by identifying the feature to measure and the required dimensions (length, width, height). Document the feature name and orientation to prevent misinterpretation.
Begin by naming the feature and its orientation, then choose the needed dimensions.
Should I always use metric units?
Use the unit system that matches your audience and industry. Metric is common for precision engineering, while some packaging contexts may use imperial units. Keep to one system per document.
Use the unit system that suits your audience, and stay consistent within the document.
How do I indicate tolerances in a dimension?
Place the tolerance immediately after the nominal value, using a plus/minus or bilateral form. Document critical tolerances for assemblies to prevent misfits.
Put tolerances right after the nominal size so readers can see allowable variation at a glance.
What about dimensions for non-rectangular shapes?
Use profile views, coordinates, or reference points to define curved or irregular features. Provide multiple views if necessary to capture the geometry fully.
Describe the shape using views and coordinates so the geometry is unambiguous.
Are there standard CAD formats for dimensions?
Many CAD programs support ISO and company-specific dimensioning standards. Adopt your organization’s standard and ensure exported drawings preserve unit and tolerance information.
Follow your company’s CAD standard and keep units and tolerances intact when exporting.
Where can I find official standards for dimensioning?
Refer to official standards bodies and credible publishers. Start with national standards bodies and major international standards to align your practice with accepted norms.
Consult official standards bodies to align with accepted norms for dimensioning.
Watch Video
Main Points
- Define a consistent unit system for every document.
- Always pair numbers with explicit units.
- Document tolerances near the nominal dimensions.
- Use clear notation and maintain a fixed dimension order.
