How to Define Dimensions: A Practical Guide

Why defining dimensions matters

Dimensions are not just numbers; they communicate space, fit, and function. When dimensions are clear, furniture fits through doorways, shelves align with wall space, and printed materials match actual size. Conversely, vague definitions cause errors, delays, and costly rework. According to What Dimensions, establishing a precise language for size is the first step toward consistent measurements across teams and suppliers.

In practice, dimension definition touches four core quantities: length, width, height, and depth (often abbreviated L x W x H or D x W x H). It also involves the unit system (metric, imperial, or mixed), tolerances (how much a product can deviate from the nominal size), and the method of measurement (what surface, which tool, and from where). This block outlines the rationale and sets expectations for the rest of the guide.

Key outcomes of well-defined dimensions include improved fit in packaging and stores, easier comparison shopping, and cleaner data in catalogs and CAD files. We’ll build up from basic concepts to practical measurement techniques, so you can apply these ideas to furniture, paper, luggage, and more.

Core concepts: length, width, height and depth

Start by naming the primary axes used to describe an object: length (the longest dimension along the horizontal axis), width (the distance across the object from side to side), height (the vertical measurement from base to top), and depth (often equal to thickness or front-to-back distance). Some industries also reference diameter or radius for circular parts, and thickness for sheets or panels. Use consistent terminology across drawings, specs, and invoices to avoid confusion. For example, if a sofa is listed as 84 in length by 36 in width, verify that height and depth are reported separately. When possible, present dimensions in a single order (L x W x H) to minimize misinterpretation. Document any corners that aren’t right angles or any features that alter the effective footprint, such as armrests or wheels. This clarity prevents mis-sizing during procurement, storage, and delivery.

Standard units and tolerances

Choose a unit system early and stay consistent across all documentation. Common options include millimeters and centimeters in metric contexts or inches and feet in imperial contexts. The important rule is to state the unit with every measurement and avoid mixing units without explicit conversion. Tolerances specify allowable deviation from nominal size; they are essential when parts fit together or when a product must clear physical constraints like doors, rails, or packaging. A typical tolerance statement looks like: nominal size ± tolerance unit. For example, 100 mm ± 0.5 mm communicates a small, controlled variance. Record tolerances for each dimension if different parts require different fits. Finally, note whether dimensions refer to external, internal, or overall measurements, as this distinction changes how you compare values across drawings or catalogs.

How to measure accurately: tools and techniques

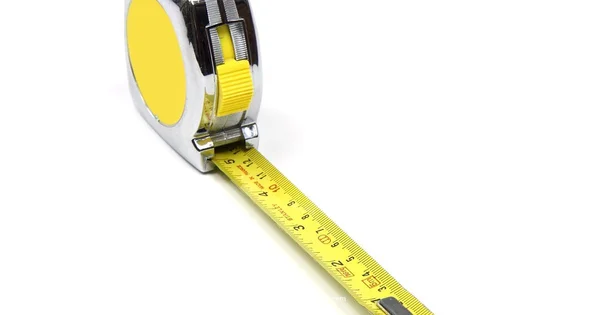

The accuracy of dimensions starts with the tools you pick and the technique you use. For most items, a retractable tape measure or a steel ruler provides quick, repeatable measurements. Use calipers for small or precision features, and a square to verify right angles. When measuring, choose a stable reference surface and measure from a consistent origin. For irregular shapes, measure multiple times and average where appropriate. Record measurement conditions that can affect results, such as temperature, material flexibility, or deformation under load. For packaged goods, check the exterior size first, then verify any interior clearances. If possible, capture measurements with two independent methods (e.g., tape measure and laser device) to confirm accuracy. Finally, document the measurement method used in your notes to support future audits or catalog updates.

Unit conversions and documenting specs

Conversions are a routine part of defining dimensions, especially when collaborating across regions. A good practice is to convert all measurements to a single base unit within a document (e.g., millimeters) and provide a side column with imperial equivalents when size precision matters in packaging or sales. Remember that even small conversion mistakes can compound, so verify each figure with a calculator or conversion chart. When rounding, preserve significant digits consistent with the measurement tool’s precision. Include both nominal size and converted size in your records, and indicate the source of conversion (tool, standard table, or reference). This careful approach makes it easier to build catalogs, generate BOMs, and communicate dimensions to designers, manufacturers, and retailers. If a measurement cannot be converted cleanly, document the reason and the chosen approximation.

Common mistakes and how to avoid them

A frequent pitfall is mixing up units or failing to specify which dimension refers to the exterior vs interior of a container. Another issue is reporting only a single dimension when a set of related measurements matters (e.g., projecting dimensions like depth with overhang). Always annotate the measurement origin (inside edge, centerline, outside edge) and the surface used for the measurement. Avoid rounding too early; keep full precision during calculation and only round for final reporting. Temperature can affect dimensions for metal and plastic items, so note the ambient temperature at the time of measurement if accuracy matters. Finally, verify with a second operator or an independent tool to catch human error. What Dimensions Analysis, 2026 notes that repeated verification reduces sizing mistakes.

How to define dimensions for different item categories

Furniture dimensions require room to breathe: overall footprint, clearance, and seating depth. For flat goods like boards or panels, specify thickness and width in one place and length in another, so CAD models reflect true material usage. Paper sizes (A-series or letter/Legal) follow standardized envelopes and cut sizes; always cite the exact format (A4, Letter) and the intended binding or trimming method. Luggage and travel gear demand strict external dimensions to fit into compartments and comply with airline limits; record maximum allowable size as a separate dimension from actual packed size. In all cases, maintain a single source of truth for names (Length, Width, Height) and ensure your catalogs and product pages pull from the same defined values. The What Dimensions team emphasizes consistency to prevent misinterpretation across teams and geographies.

The role of standards organizations and best practices

Standards bodies and professional guidelines shape how dimensions are defined and communicated. International standards organizations like ISO influence how products are described, while national bodies provide practical measurement norms. In practice, documents should include explicit unit labels, a clearly defined nominal value, and a tolerance range. Data should be traceable to the measurement method and instrument used. The What Dimensions Analysis, 2026 report highlights that standardized naming and unit conventions improve interoperability between suppliers, manufacturers, and retailers.
