Double Hung Window Dimensions: A Practical Sizing Guide
Learn how to read, measure, and choose double hung window dimensions with confidence. This guide covers standard vs. custom sizes, rough openings, and installation considerations for precise fits.

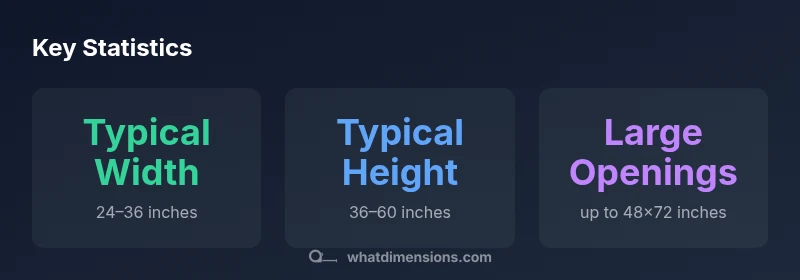

Double hung window dimensions span a broad range in residential projects, typically from compact 24x36 inch openings up to substantial 48x72 inch openings. Common widths include 24, 28, 32, and 36 inches, with heights often in the 36–60 inch range. For new builds or renovations, always measure the rough opening and consult the sizing chart to confirm exact figures before ordering.
Why accurate double hung window dimensions matter
The accuracy of window dimensions directly affects fit, performance, and cost. An out-of-spec window can lead to air leaks, energy loss, and the need for costly field adjustments. When you’re replacing or installing double hung units, precise measurements ensure the sash moves smoothly, the weather seal engages properly, and the unit sits correctly in the frame. For designers and homeowners, accurate dimensions reduce rework and help translate a design into a reliable, energy-efficient installation. In practice, dimensional accuracy supports better insulation, easier maintenance, and a more polished final look across interiors and exteriors.
Standard size conventions and how to read them
Manufacturers present double hung window dimensions in catalog sizes that often reflect nominal widths and heights. A common misunderstanding is assuming nominal equals actual; the actual window may differ slightly due to frame thickness, glazing beads, and finish. When reading size charts, look for both the nominal width x height (for ordering) and the actual finished opening (for installation). Recognize that standard widths are typically listed in 1/2-inch increments, and heights follow similar patterns. Familiarize yourself with a few standard sizes first, then verify exact measurements against a specific product line.
How to measure your existing opening for replacement
Begin by identifying the correct measurement points: measure width at the top, middle, and bottom of the opening, and measure height on the left, middle, and right. Use a steel tape for accuracy and record measurements in inches (rounded to the nearest 1/8 inch). Note any irregularities such as bowing walls, warped sills, or uneven reveals. Factor in the thickness of interior trim and exterior cladding; in many cases, you’ll target a rough opening slightly larger than the window unit to allow for shimming and alignment. Always cross-check measurements with the manufacturer’s recommended installation tolerances.
The influence of frame material and sash configuration on dimensions
Frame materials—vinyl, wood, aluminum, or composite—affect internal clearances and exterior dimensions due to jamb depth, glazing bead thickness, and sill profiles. A thicker sash or deeper frame can slightly reduce the glass area inside the same overall outside footprint. Similarly, multipoint locking hardware, grid patterns, and spacer bars can alter the required rough opening. When planning, consider how your material choices will impact both fit and finish, especially if you’re aligning multiple windows on a façade or inside a historic renovation where trim profiles differ.
Standard vs custom sizes: when to choose
Choosing standard sizes offers faster lead times, lower costs, and easier replacements, but doesn’t always fit unique openings. Custom sizes provide flexibility for non-standard rough openings, historic restorations, or specialty configurations, but they come with longer lead times and higher price points. If your opening is within the common width/height spectrum, prioritize standard sizes and adjust with shims and trim during installation. If not, consult a fabricator about a precision-fit unit that preserves energy performance and aesthetic alignment with surrounding windows.
Rough openings and installation considerations
Rough opening dimensions serve as the frame within which the window unit sits. For most installations, the rough opening should be slightly smaller than the nominal window size to allow for precise alignment, plumb, and level installation. Typical guidance suggests leaving about 1/4 inch total clearance around the perimeter, increased at the sill for drainage. Account for insulation, flashing, and weather barriers. Use shims to achieve plumb and square, then seal gaps with high-quality sealant. If you’re replacing a window in an older wall, you may need to adjust adjacent framing, trim, or siding to maintain a clean, leak-free transition.
Reading architectural drawings for window dimensions
Architectural plans often present window dimensions in schedules or on-elevation drawings. Look for two key figures: the window unit size (the actual installed unit) and the rough opening size (the framed opening). Pay attention to notes about head height, sill height, and any obstructions like moldings or built-in blinds. If a drawing shows multiple windows in a sequence, verify that all openings share consistent alignment and sill lines. When discrepancies appear between plan and site, document them and communicate with the installer before ordering replacements.
Maintenance and dimension changes over time
Building components can shift over time due to settlement, moisture, and temperature changes, which may alter actual on-site dimensions. Regular inspections help detect misalignment, warping, or gasket compression that affects performance. If you notice drafts, sticking sashes, or uneven operation, re-check the opening and contact the installer to adjust or replace hardware or framing. Maintaining dimensional accuracy supports sustained energy efficiency and a longer service life for your double hung windows.
Overview of common double hung window dimensions
| Measure | Typical Range | Notes |
|---|---|---|
| Width | 24–36 inches | Common residential widths |
| Height | 36–60 inches | Standard height options |
| Rough Opening Width | 22–34 inches | Slightly smaller than window width for framing |
| Rough Opening Height | 34–58 inches | Accommodates sill and shims |
Quick Answers
What are the most common double hung window dimensions?
Most homes use standard widths of 24–36 inches and heights of 36–60 inches, with larger options available up to about 48x72 inches. Always check the manufacturer’s chart for exact options.
Common sizes are typically 24 to 36 inches wide and 36 to 60 inches tall; verify the chart for your specific product line.
How do I measure a window opening for replacement?
Measure width at three points (top, middle, bottom) and height at three points (left, center, right). Use a steel tape and record in inches to the nearest 1/8 inch. Note trim, sill, and any irregularities.
Measure the opening at multiple points, note irregularities, and use inches to the nearest 1/8 inch.
What’s the difference between nominal and actual sizes?
Nominal sizes are catalog references and may not reflect the true finished size. Actual sizes account for frame thickness, glazing beads, and trim, and are what you’ll physically install.
Catalog sizes aren’t the exact fit; expect small differences in the finished unit.
Do frame materials affect dimensions?
Yes. Different materials add varying jamb depths and bead thickness, which can slightly change the usable glass area and the final opening.
Material choice can subtly shift the usable space and fit.
When should I opt for a custom size?
If your rough opening is non-standard or part of a historic renovation, a custom unit can ensure a precise fit and preserve energy performance.
If standard sizes don’t fit, consider a custom window.
“Precise double hung window dimensions reduce installation friction and improve energy performance by ensuring a proper seal and alignment.”
Main Points
- Measure openings precisely before selecting replacements.
- Understand nominal vs actual sizes to avoid ordering errors.
- Prefer standard sizes for quicker, cheaper installation.
- Account for frame material and rough opening variations during planning.
