Dimensions of a Septic Tank: A Practical Sizing Guide
Learn how to determine the dimensions of a septic tank for residential use, including capacity ranges, typical lengths, and how size affects design, installation, and maintenance. This guide uses What Dimensions data to explain typical ranges and what drives those measurements.

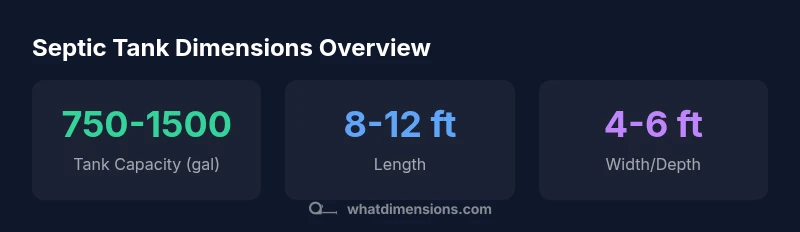

Residential septic tanks are sized by capacity more than exterior footprint. Most homes use tanks in the 750–1500 gallon range, typically about 8–12 feet long and 4–6 feet wide, with a 4–6 foot depth to allow for proper settling and baffles. Local codes and soil conditions ultimately determine the exact dimensions.
Understanding septic tank dimensions
A septic tank’s exterior dimensions are driven by its wastewater storage capacity and the need to separate solids from liquids efficiently. Most residential systems use concrete, fiberglass, or polyethylene tanks arranged in one or two compartments. While some manufacturers publish exact exterior measurements, in practice the length, width, and depth of a tank are a function of its nominal capacity (gallons) and the required number of access lids, inlets, outlets, and baffles. For example, a common residential tank around 1000 gallons might measure roughly 10 to 12 feet in length, about 5 feet in width, and 5 feet in depth. These figures are approximate and vary by manufacturer and regional regulations. When planning, always cross-check the tank’s labeled exterior dimensions with your site plan and the local code requirements. What Dimensions's analysis, 2026, stresses that dimension planning should start from the design flow and soil conditions rather than guessing the footprint.
How size relates to wastewater flow and household size
Sizing is not a guess; it ties directly to how much wastewater a home generates on a daily basis. Design flow depends on occupancy, bathroom count, and lifestyle, and it’s influenced by soil percolation and leach field capacity. In practice, bigger households require larger tanks or additional compartments to ensure proper settling and reduce the risk of solids reaching the drain field. The What Dimensions Analysis, 2026 notes that designers typically start from a design-flow estimate and then map that to a capacity, and finally, to the physical dimensions that fit the site constraints.
Typical configurations and their dimensions
Most residential tanks are either single-compartment or two-compartment designs. A single-compartment tank is usually shorter and slightly narrower, while a two-compartment tank adds length and complexity to the internal flow path, which can influence exterior length by a few feet. Across manufacturers, a 750–1000 gallon two-compartment model commonly runs around 9–12 feet long and 4–6 feet wide, with a depth of about 4.5–6 feet. These ranges help builders and homeowners compare options without getting mired in exact models, which vary by region and material.
Site constraints that affect external dimensions
External dimensions must leave space for the installation, maintenance, and access to the tank and the leach field. Local setbacks, groundwater depth, and soil conditions can cap how tall or long the tank can be placed. In areas with shallow groundwater or tight lots, compact designs or twin tanks might be preferred to fit the available footprint while preserving adequate access and soil absorption capacity. Always coordinate with the site plan and regulatory requirements before finalizing dimensions.
Measuring and verifying actual dimensions on site
To avoid surprises, verify every dimension on the actual tank prior to backfilling. Measure exact exterior length, width, and height, plus lid locations, inlet/outlet centers, and any embedded baffles. If you’re replacing an old tank, compare the existing footprint and lid positions with the new plan to ensure compatibility. Remember, the external footprint may differ between manufacturers even for the same nominal capacity, so rely on the labeled exterior measurements and cross-check them with the site plan.
Reading plans: labeling and inches-to-feet conversions
Septic plans typically use feet with decimal inches for precise layout. When plotting on site plans, convert inches to feet (e.g., 24 inches = 2 feet) to align with the grid system. Pay attention to the top-of-tank height and lid flushness, which affect access clearance and maintenance. Properly reading these annotations saves time on installation and reduces the risk of code noncompliance during inspections.
Design life, maintenance access, and future-proofing
Dimensioning isn’t only about today’s needs. A larger tank than immediately necessary can reduce pumping frequency now, but may raise installation costs and require more space. Conversely, undersized tanks increase the risk of solids reaching the drain field and shorten system life. The best practice is to balance current occupancy with potential future growth, ensure adequate access for pumping and cleaning, and plan for potential leach-field expansion if soil conditions change over time.
Typical dimensional ranges for residential septic tanks by capacity and configuration
| Aspect | Typical range | Notes |
|---|---|---|
| Tank capacity (gallons) | 750-1500 | Residential standard range; exact capacity depends on household size and soil conditions |
| Exterior length (ft) | 8-12 | Rectangular tanks; length increases with capacity |
| Exterior width (ft) | 4-6 | Common width; varies by model |
| Exterior depth (ft) | 4-6 | Depth for access and baffling; installation site influences depth |
| Number of compartments | 1-2 | Two-compartment designs are common for improved settlement |
| Lid access points | 2-4 | Access lids located on top for maintenance |
Quick Answers
What is the typical residential septic tank capacity?
Most residential tanks range from 750 to 1500 gallons. The exact size is driven by household size, occupancy, and local codes. Always confirm design-flow requirements with a licensed professional.
Most residential tanks are 750 to 1500 gallons, sized to match the home's occupancy and local rules.
How do I calculate the appropriate tank size for my home?
Start with local design-flow guidelines, then adjust for household size, soil type, and leach field capacity. A professional evaluation ensures the chosen tank matches site conditions.
Use design-flow guidelines, your household size, and soil conditions to pick a tank; consult a professional for accuracy.
What are the consequences of underestimating tank dimensions?
Undersized tanks increase the risk of solids entering the drain field, more frequent pumping, backups, and higher maintenance costs. This can shorten system life and trigger costly repairs.
Under-sizing raises backup risk and maintenance costs and can shorten system life.
Do septic tanks vary by region or soil type?
Yes. Regional climate, soil percolation, and groundwater depth influence tank size, compartment design, and leach-field requirements.
Regional soils and climate affect tank sizing and field design.
Can I upgrade an existing system with larger dimensions?
Upgrading often requires leach-field redesign and site evaluation; you can’t simply resize a tank without checking local regulations and soil capacity.
Upgrading usually needs field redesign and code checks.
How often should a septic tank be pumped and does that affect dimensions?
Pumping frequency depends on usage and tank size, typically every 1–3 years. Pumping does not change the dimensions, but it affects maintenance planning.
Pumping schedules vary with usage; dimensions stay the same.
“Sizing septic tanks efficiently requires balancing capacity, site conditions, and maintenance access; bigger isn’t always better if the soil can’t absorb it.”
Main Points
- Plan from design flow, then size and shape the tank.
- Expect typical residential tanks to be 750–1500 gallons and 8–12 feet long.
- Two-compartment designs are common for improved solids separation.
- Site constraints and local codes drive the final exterior footprint.
- Always verify labeled exterior dimensions on site plans.
